Micro Francis Water Turbine
This Francis water turbine is engineered for hydroelectric power generation. Its compact design is suitable for micro and mini hydro applications.
Technical Specifications
Product Overview
Micro Francis Water Turbine

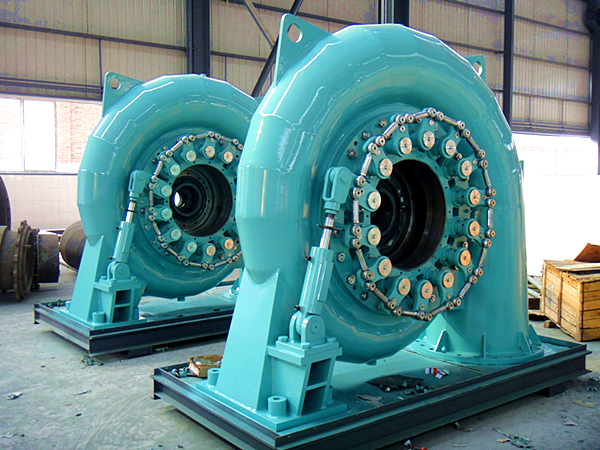

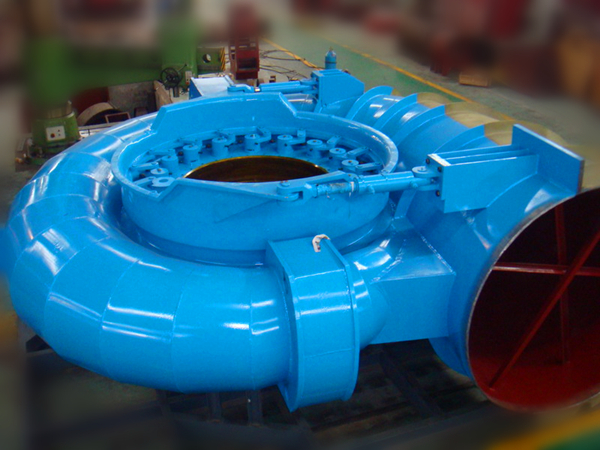

The Francis water turbine is a high-efficiency reaction turbine designed for medium head and medium flow applications. Featuring a robust spiral casing that directs water flow radially into the runner and axially out, this unit effectively converts kinetic energy into rotational mechanical energy. Its compact design makes it an ideal solution for micro and mini hydroelectric power generation projects.
Technical Specifications
Output Voltage Options
- 400V
- 3.3kV
- 6.3kV
- 10.5kV
- 13.8kV
- Power Output Range
- 50kW - 200MW
- Operating Frequency
- 50Hz60Hz
- Output Type
- AC Three Phase
- Working Water Head
- 20m - 500m
Design Features
Turbine Type
Reaction TurbineRadial-Axial Flow
Key Components
- Spiral Casing
- Runner
- Draft Tube
- Adjustable Guide Vanes
