Metallized Polypropylene Film Capacitor
Metallized polypropylene film capacitors are designed for AC applications. These capacitors are commonly used for motor starting and power factor correction.
Technical Specifications
Product Overview
High-Performance Film Capacitors

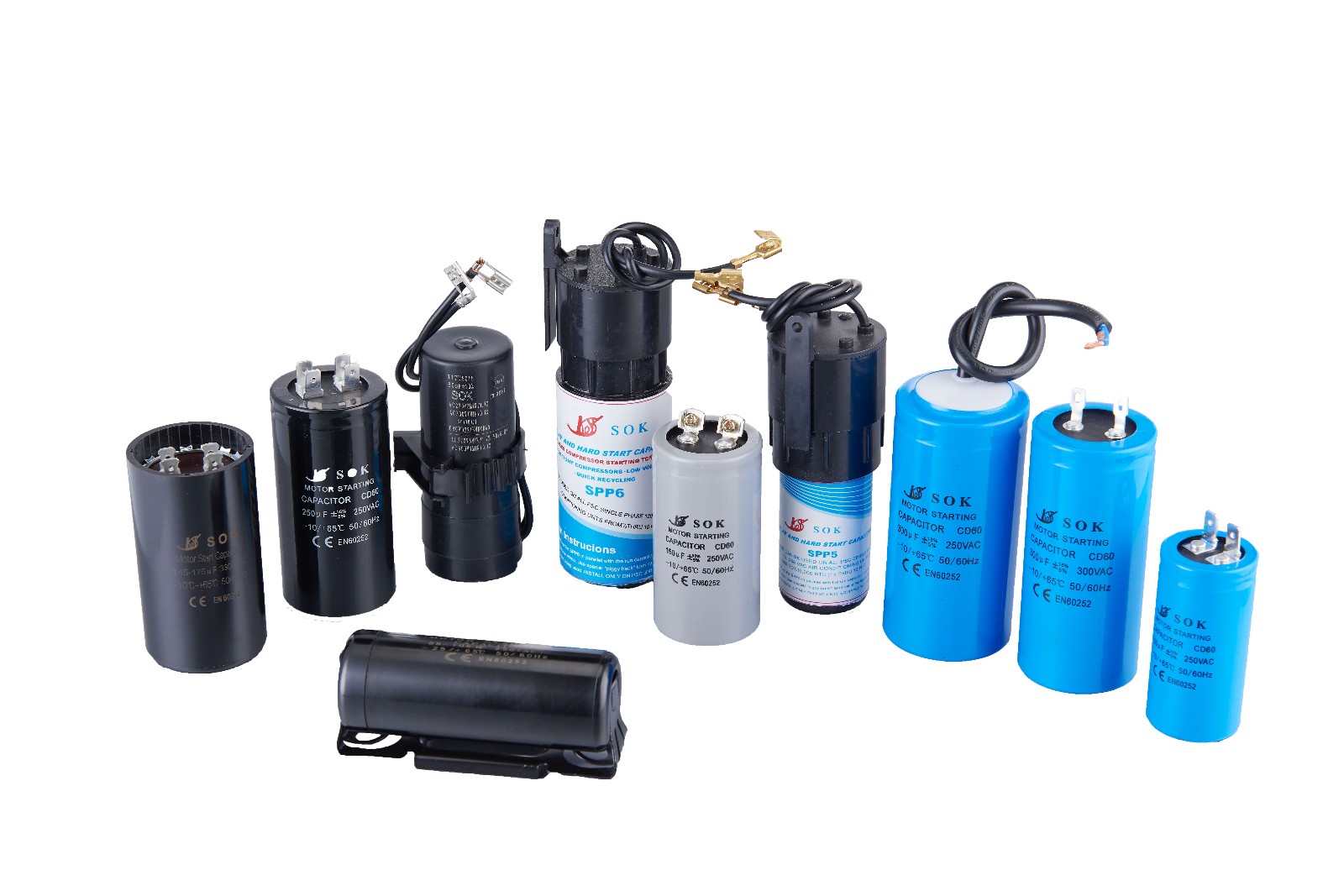

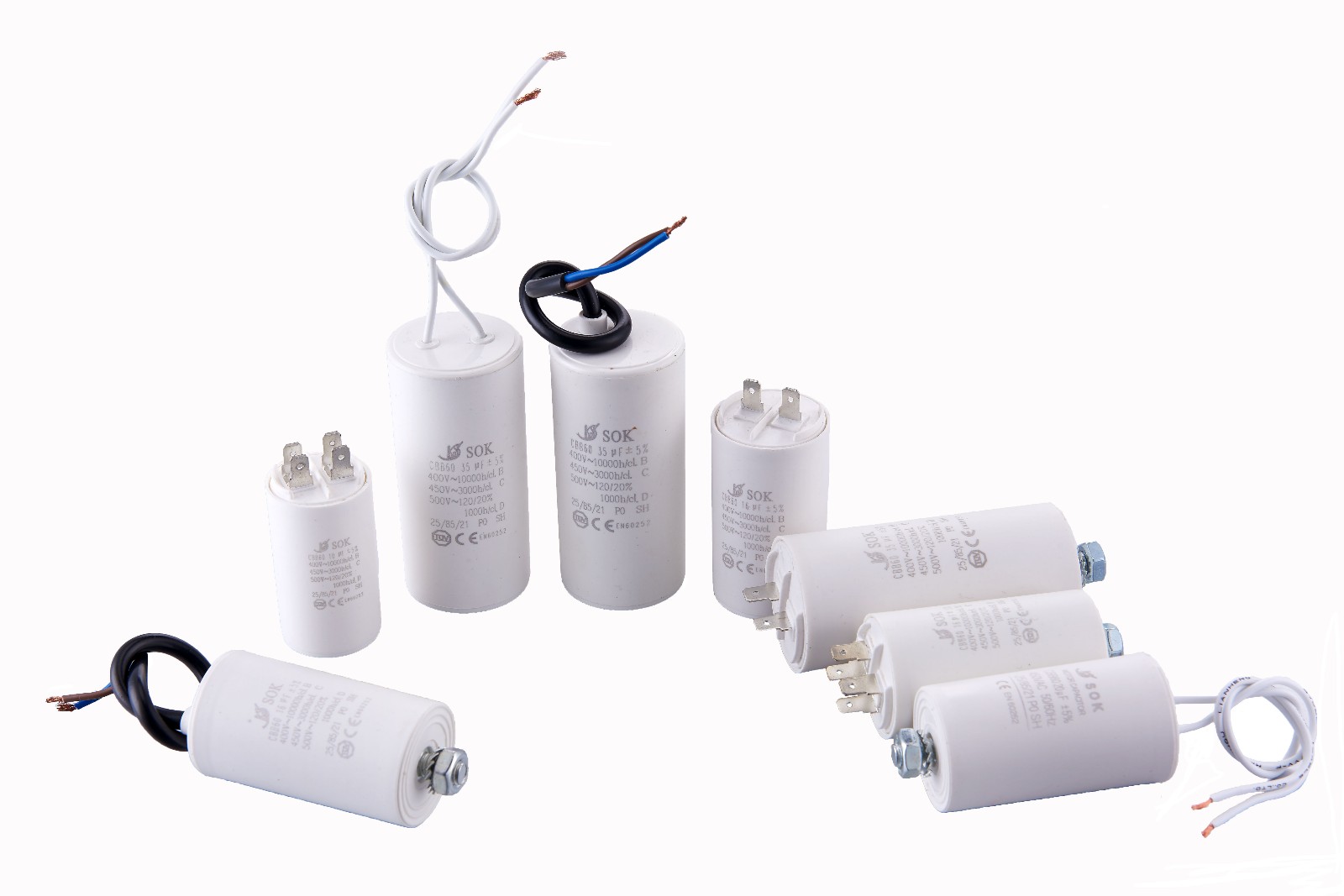

This range of metallized polypropylene film capacitors is engineered for reliable performance in AC applications, including motor starting and running. Available in multiple series such as CD60, CBB60, CBB61, and CBB65, these components are suitable for HVAC systems, refrigerators, pumps, and industrial appliances. Built for durability, they feature self-healing properties, excellent electrical reliability, and resistance to shock and vibration.
Technical Specifications
Compliance Standards
CEEN 60252ANS/EIA-463
- Operating Frequency
- 50/60Hz
- Voltage Range
- 250VAC300VAC400VAC450VAC500VAC
- Capacitance Range
- 5µF to 330µF
Series Details
Series Applications
| Series | Primary Application |
|---|---|
| CD60 | Motor starting, compressors, refrigerators |
| CBB60 | Running single-phase motors, pumps |
| CBB61 | Fans, sewing machines, home appliances |
| CBB65 | AC units, refrigerators, lamps |
Environmental and Safety
Operating Temperature
- -10°C to +65°C
- -10°C to +85°C
- 25/70/21
- 25/85/21
- Safety Features
- Self-healingNo PCBsP2 ProtectedAnti-moisture
