AC Motor Film Capacitor
This AC motor film capacitor is designed for use in air conditioners and ventilation equipment. It is rated for 450VAC at 50/60Hz and operates within a temperature range of 40/70/21.
Technical Specifications
Overview

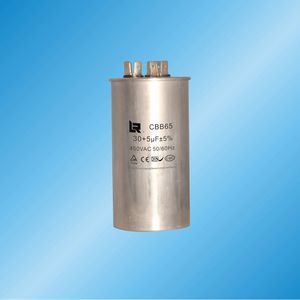

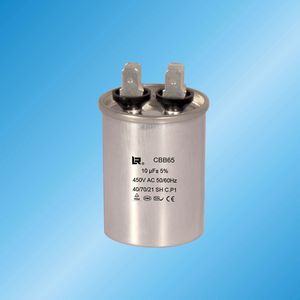

CBB65 Series AC Motor Capacitors
The CBB65 series represents a line of high-performance metallized polypropylene film capacitors designed for continuous duty in demanding AC motor applications. Engineered for reliability, these capacitors offer excellent capacitance stability over time and temperature with very low internal power losses. They are housed in durable cylindrical aluminum cases, ensuring efficient heat dissipation and performance in environments ranging from air conditioning units to general-purpose AC motor systems.
Electrical Specifications
Rated Voltage
450 V AC
Rated Voltage
Performance Characteristics
- High capacitance stability
- Very low internal power losses
- Continuous duty operation
- Operating Frequency
- 50/60 Hz
- Capacitance Tolerance
- ±5%
Physical & Environmental
- Operating Temperature
- -25°C to +85°C
- Casing Material
- Cylindrical Aluminum
- Terminal Type
- 2-spade4-spadeQuick-disconnect
Applications & Compliance
Typical Applications
- Electric motors
- Air conditioning systems
- Pumps
- Compressors
- Lighting systems
- General purpose AC applications
Compliance & Standards
CESH C.P1
