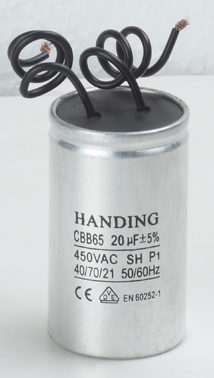

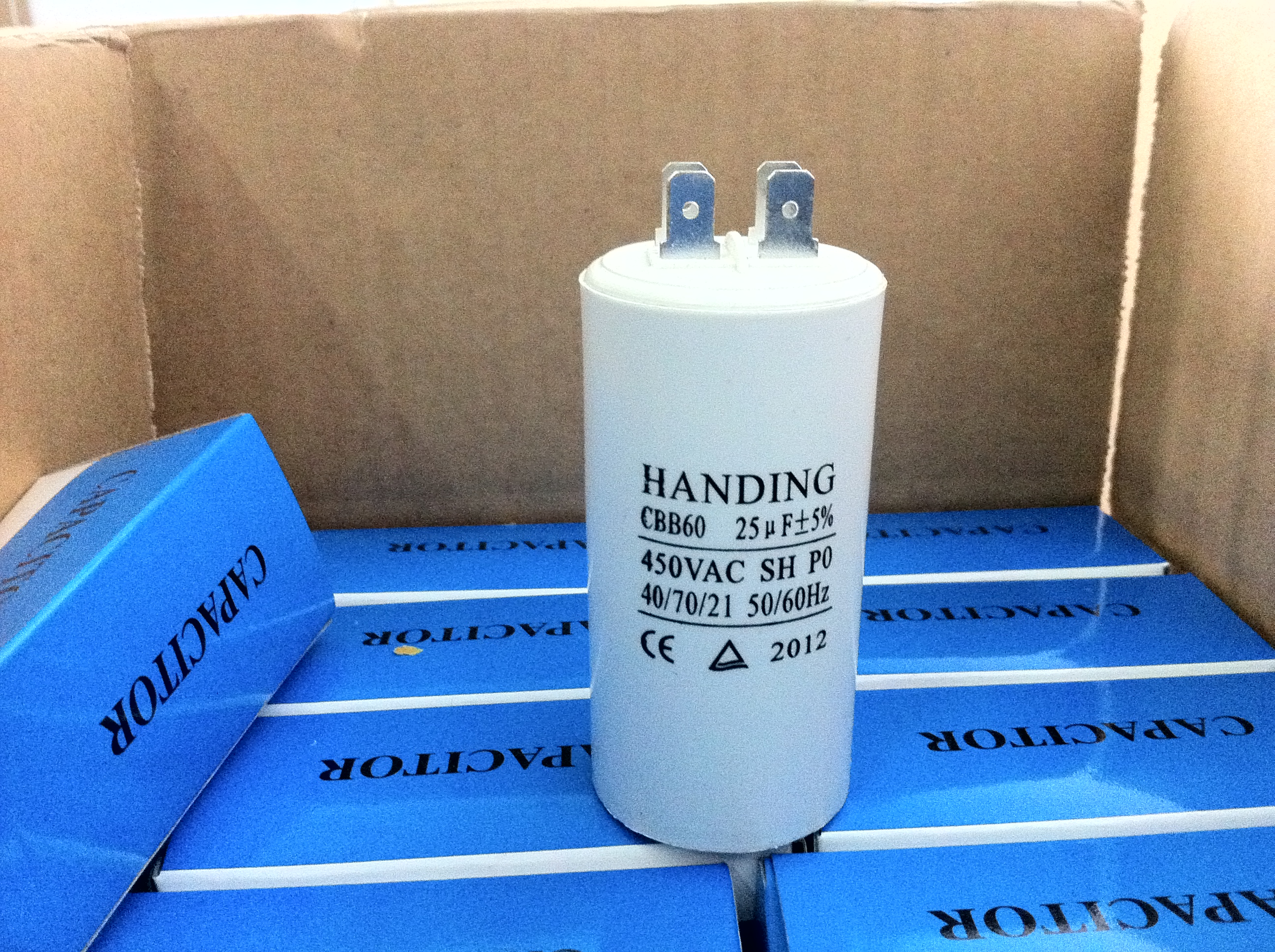

AC Motor Run Capacitor
This AC motor run capacitor is designed for electric motor applications. It is rated for 450VAC operation at 50/60Hz and available in 20-30uF capacitance values.
Technical Specifications
Overview
High-Performance Motor Run Capacitors
The CBB60 and CBB65 series capacitors utilize a self-healing Metallized Polypropylene Film dielectric system to ensure outstanding electrical characteristics and high capacitance stability. These capacitors are engineered for start and run applications in single-phase asynchronous motors and general AC applications at industrial frequencies. With very low internal power losses and a robust design, they are an ideal choice for micro water pumps, cleaning machines, and washing machines.
Technical Specifications
Compliance Standards
CEEN 60252-1
- Rated Voltage
- 450 VAC
- Operating Frequency
- 50/60 Hz
- Climatic Category
- 40/70/21
- Capacitance Tolerance
- ±5%
- Available Capacitance Options
- 20 μF25 μF30 μF
Operational Details
Delivery Lead Time
| Order Type | Timeframe |
|---|---|
| First Order | 30-35 days |
| Repeat Order | 20-25 days |
- Warranty Period
- 2 Years
- Minimum Order Quantity
- 1000
