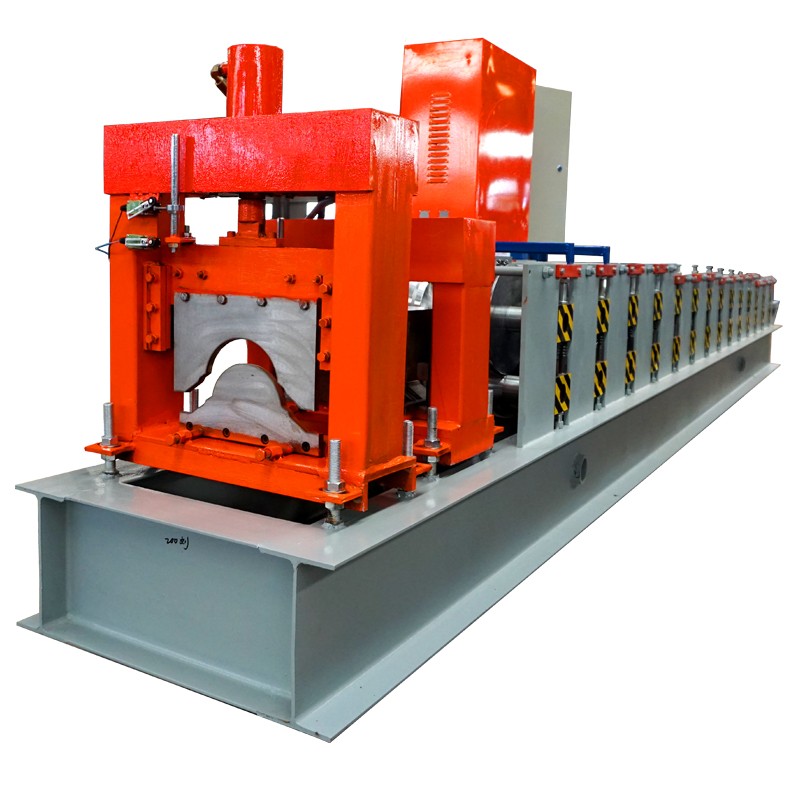

Metal Sheet Roll Forming Machine for Ridge Caps
This machine forms metal sheets into ridge caps for roofing. It utilizes a roll forming process to create precise and consistent ridge profiles.
Technical Specifications
Product Overview
Industrial Efficiency for Roofing Components
This automated roll forming machine is engineered for the high-precision production of ridge caps and iron roofing sheets. Featuring a robust, high-grade forged steel construction, it ensures consistent output through advanced hydraulic systems and PLC-controlled operations. With adjustable forming parameters and customizable profiles, it provides a versatile solution for high-volume metal fabrication in the construction industry.
- Machine Function
- Ridge cap roll forming machine for metal sheet production.
Operational Specifications
- Material Thickness Capacity
- 0.8 mm
- Working Speed
- 15 m/min
- Number of Roller Stations
- 14
System Components

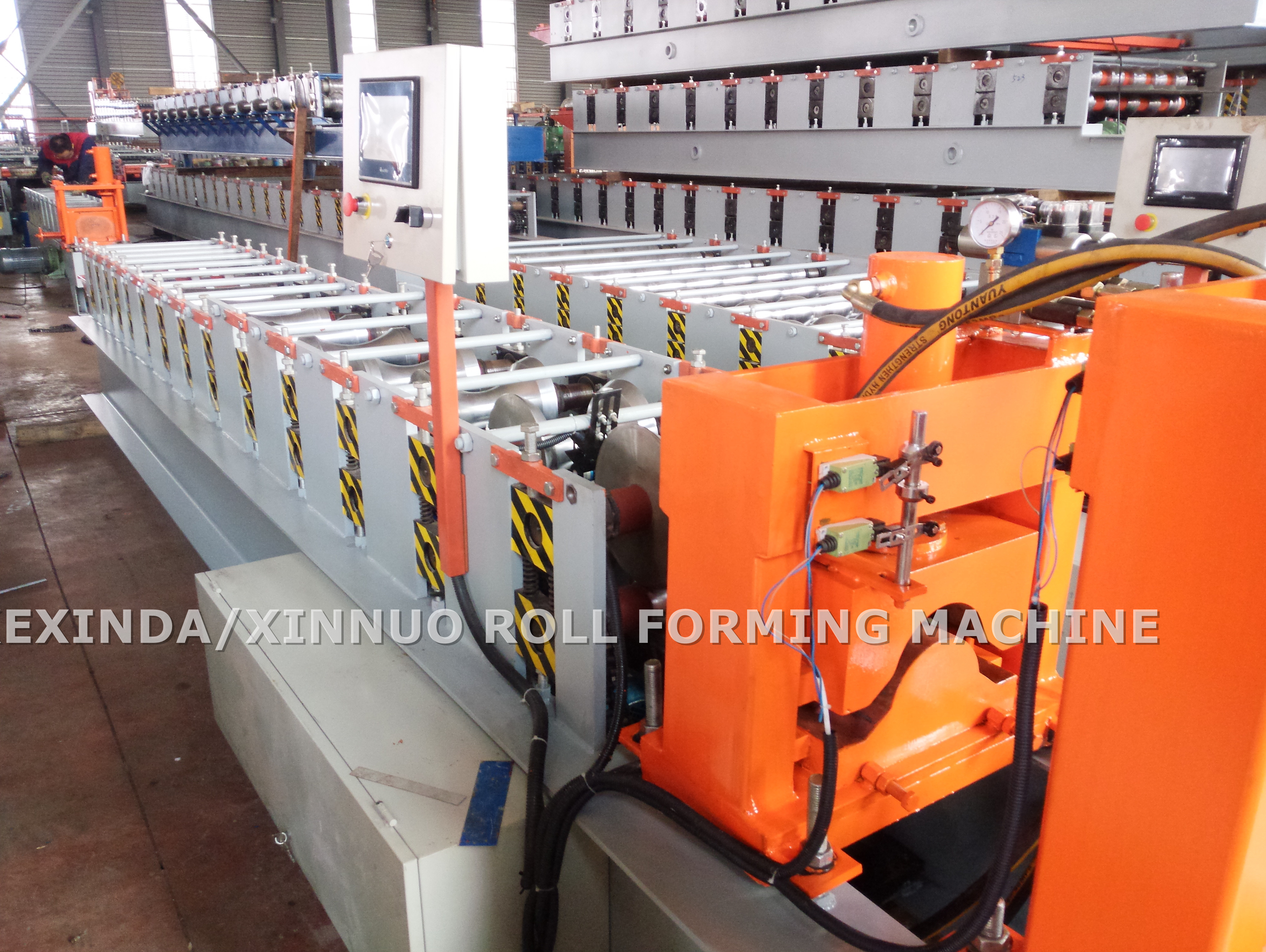

Control Features
- PLC Computer control system
- Automatic and manual operating modes
- Multi-language interface (English, Chinese, Spanish, Russian)
- Programmable profile length and quantity
Hydraulic System
4 kW
Power Output
16 MPa
Max Pressure
Uncoiler Details
Manual Uncoiler Parameters
| Parameter | Value |
|---|---|
| Loading Capacity | 5 Ton |
| Max Steel Coil Width | 1300 mm |
| Inner Diameter | 500-508 mm |
| Main Motor Power | 5.5 kW |
Compliance
- Certifications
- CESGSISO
