Metal Roll Forming Machine for UD CD UW CW Profiles

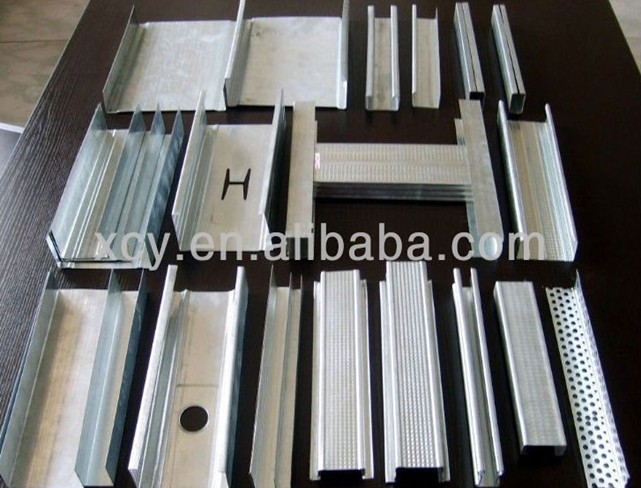

This metal roll forming machine produces UD, CD, UW, and CW profiles. It features a PLC control system, hydraulic station, and cutting device.
Technical Specifications
Overview
High-Performance Roll Forming Solution

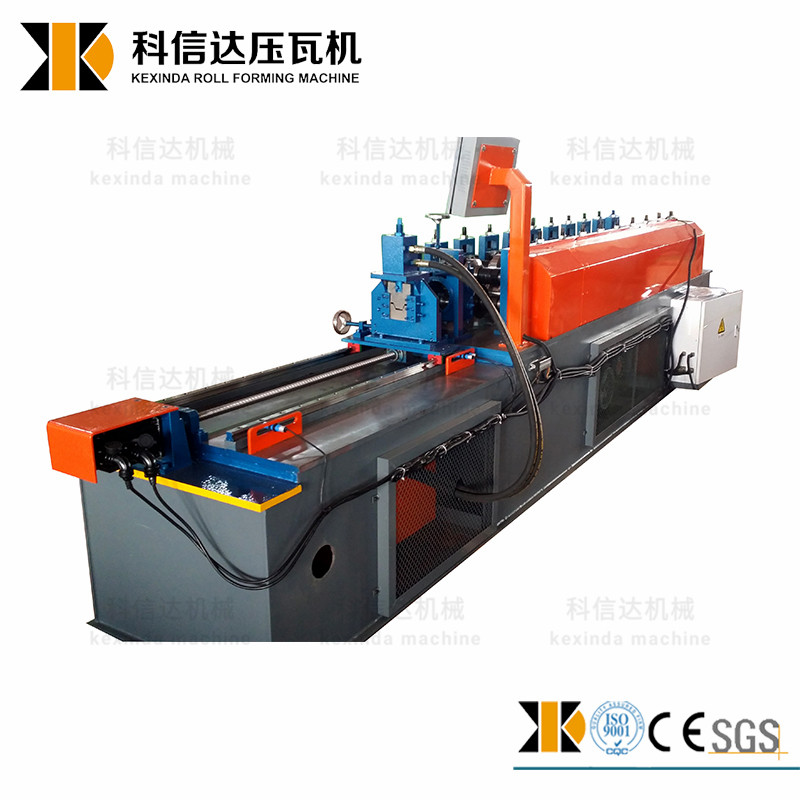

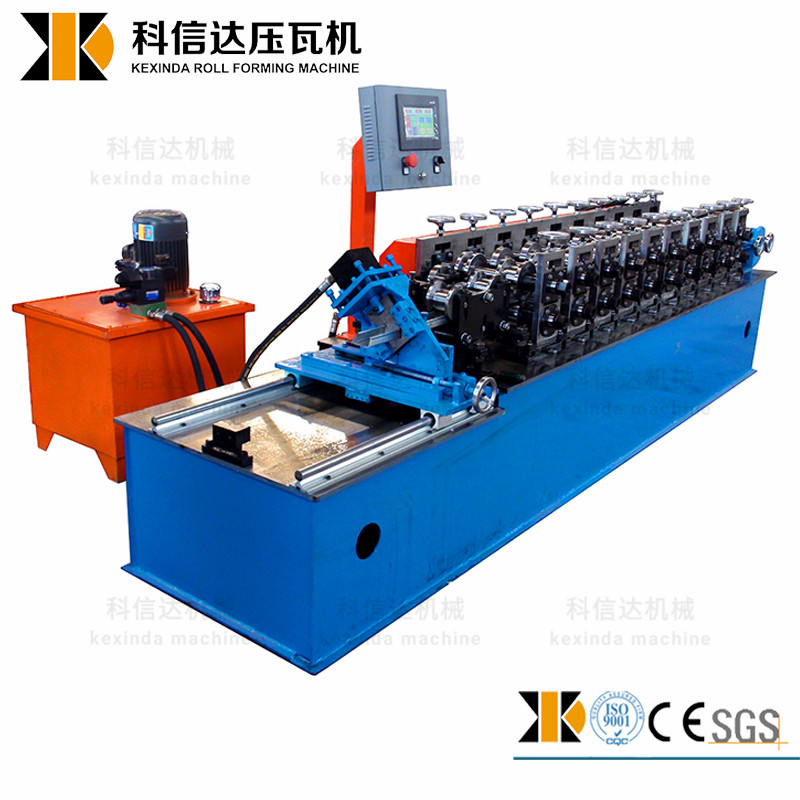

This industrial-grade metal roll forming machine is engineered for the efficient, high-volume production of UD, CD, UW, and CW profiles. Built with a robust 350mm H-Beam main frame, it ensures structural stability and long-term durability in demanding manufacturing environments. The system integrates advanced hydraulic cutting, PLC control, and precision roller stations to deliver consistent, high-quality metal framing components with minimal material waste.
Technical Specifications
- Main Motor Power
- 18.5 kw
- Hydraulic Pump Power
- 15 kw
- Power Supply
- 3-Phase, 380V, 50Hz
- Forming Speed
- 13 m/min
- Hydraulic Pressure
- 19 MPa
Production Capabilities
- Forming Size Range
- 80-300mm
- Feeding Thickness
- 1.5-3.2mm
Machine Construction

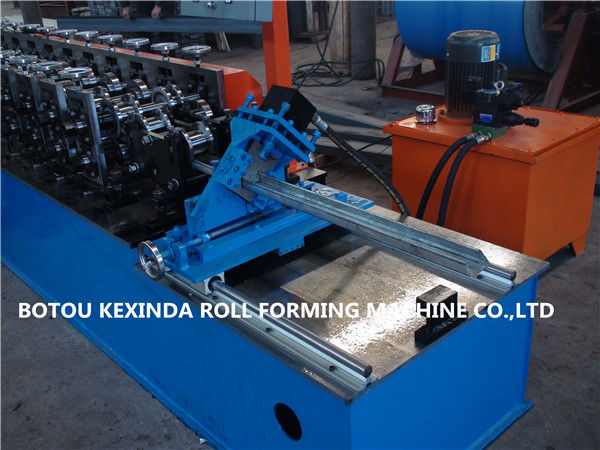

- Roller Stations
- 12
- Roller Diameter
- 80 mm
- Construction Standards
- Cr12 CutterCr12 Roller350mm H-Beam Frame
- Overall Dimensions
- 9500 x 1400 x 1350mm
- Total Weight
- 6 T
Components
Included Equipment
- Manual Uncoiler
- Guiding Platform
- Coil Strip Leveler
- Main Body
- Electro-Motor
- Hole-Punch Device

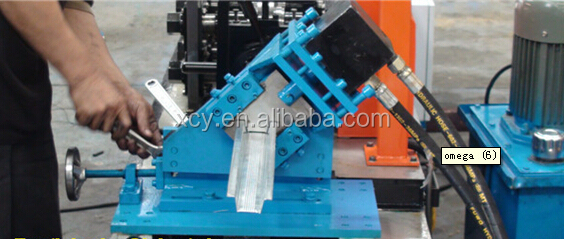

- Cutting Device
- Hydraulic Station

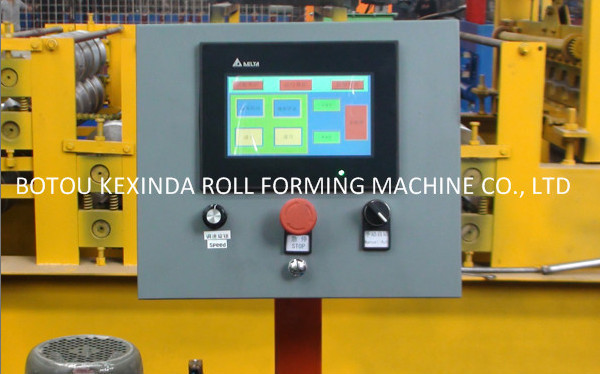

- PLC Control System
