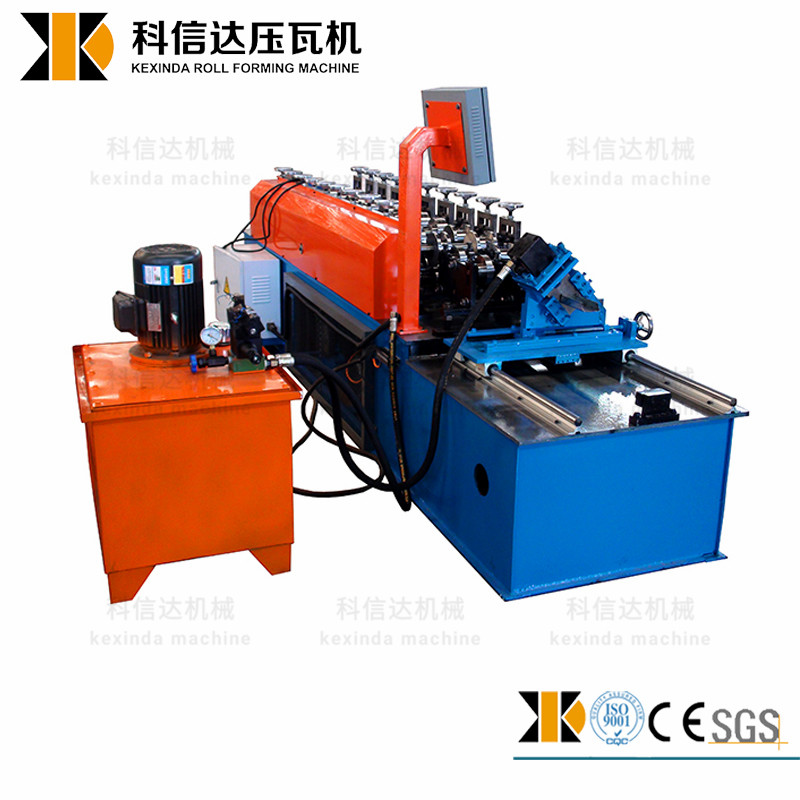

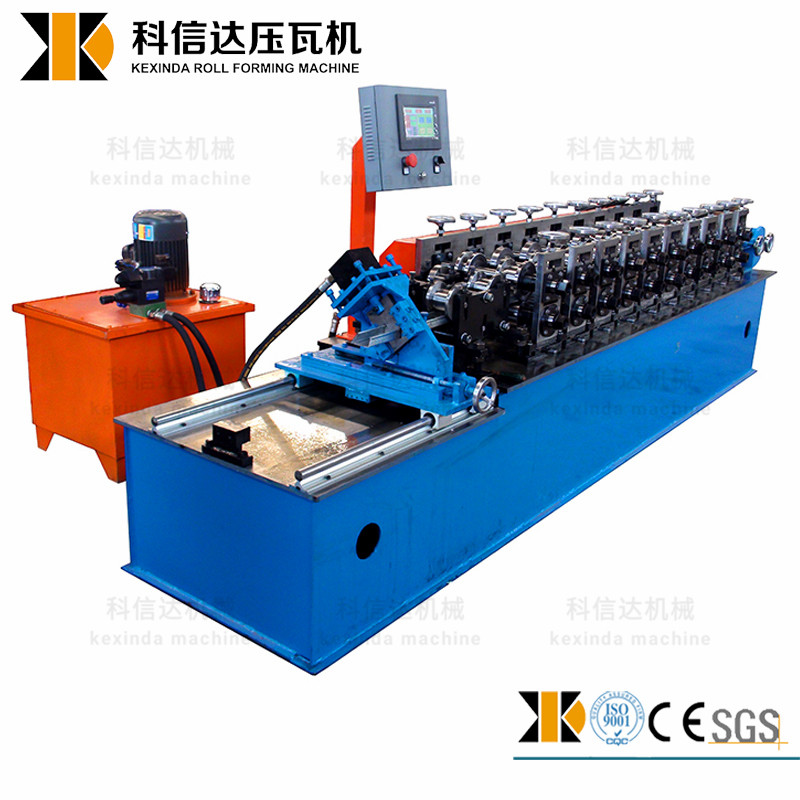

Metal Profile Roll Forming Machine for C and U Shapes
This metal profile roll forming machine is designed for producing C and U shaped profiles. It is ideal for manufacturing aluminum sections with precision and consistency.
Technical Specifications
Overview
High-Precision Metal Profile Forming
This industrial roll forming machine is engineered for the efficient, high-volume production of C and U-shaped metal profiles, including aluminum sections. Utilizing a series of progressive forming rollers, it ensures consistent dimensional accuracy and structural integrity for components used in construction, automotive, and industrial applications. The system features a robust, automated design with an integrated hydraulic station and PLC control for reliable, long-term operation.
Technical Specifications
- Main Motor Power
- 18.5 kW
- Hydraulic Pump Power
- 15 kW
- Forming Speed
- 12-14 m/min
- Hydraulic Pressure
- 18-20 MPa
- Forming Size Range
- 80-300 mm
- Feeding Thickness
- 1.5-3.2 mm
Machine Construction

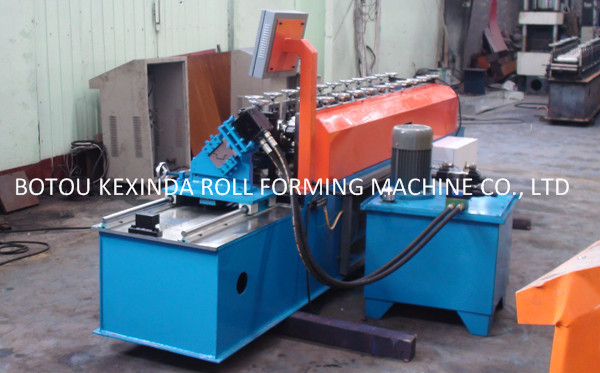

- Roller Stations
- 12
- Roller Diameter
- 80 mm
- Main Frame Type
- 350mm H-Beam
- Roller/Cutter Material Standard
- Cr12
- Chrome Plating Thickness
- 0.05 mm
Control & Power

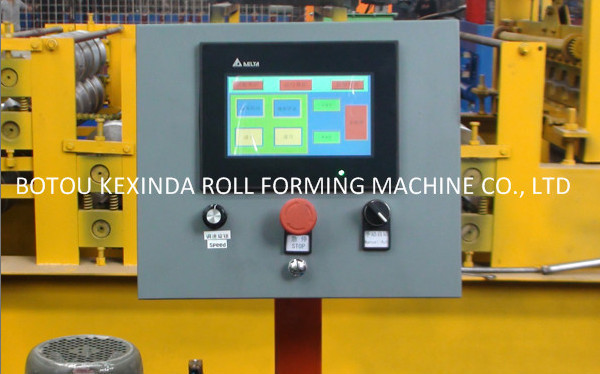

- Control System
- PLC Panasonic Inverter
- Power Supply
- 3-Phase, 380V, 50Hz
Dimensions & Weight
- Overall Dimensions
- 9500 x 1400 x 1350 mm
- Total Weight
- 6 T
Configuration
Standard Configuration
- Manual Uncoiler
- Guiding Platform
- Coil Strip Leveler
- Main Body of Roll Forming Machine
- Electro-Motor

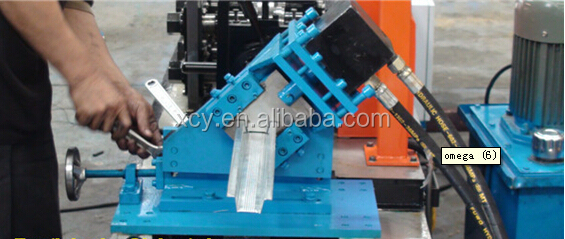

- Hole-Punch Device
- Cutting Device

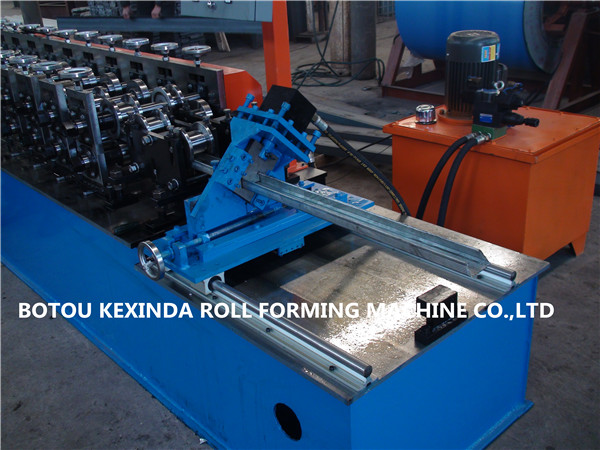

- Hydraulic Station
- PLC Control
