Technical Specifications
Product Overview
High-Performance Cold Roll Forming

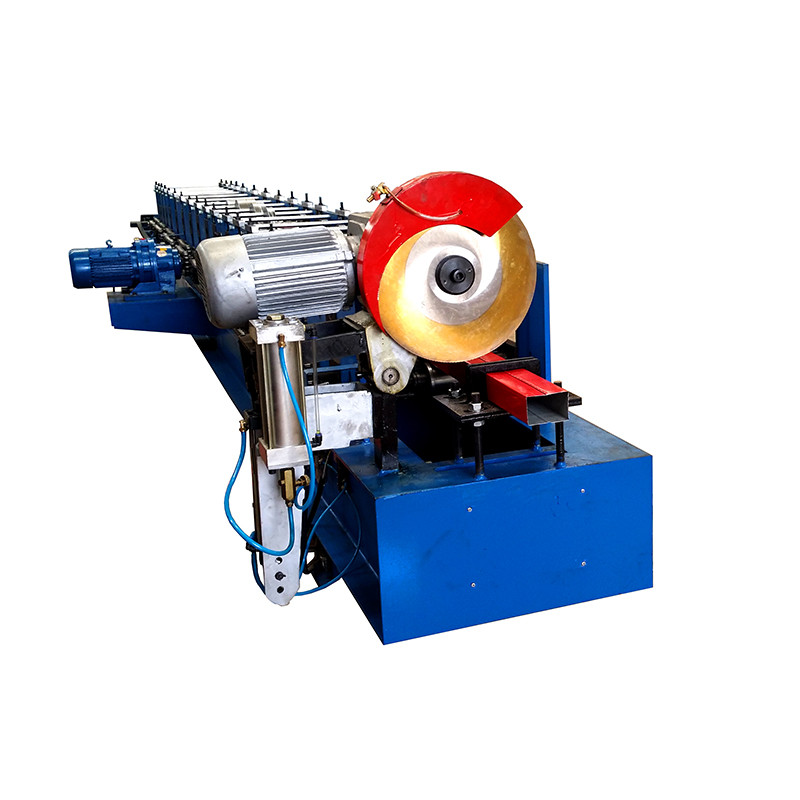

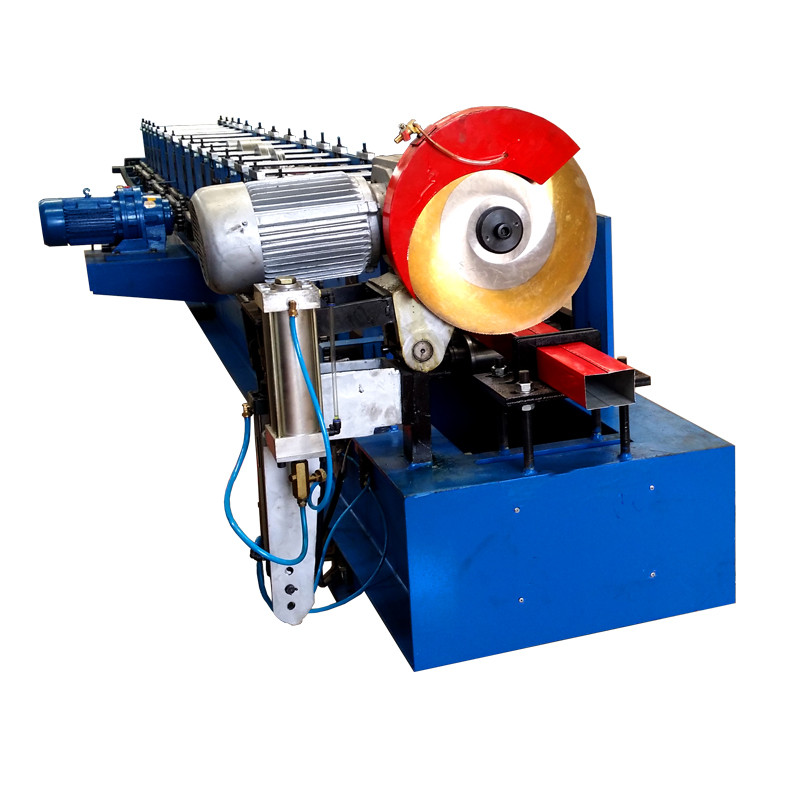

This industrial-grade cold roll forming machine is engineered for the high-precision manufacturing of metal downpipes. Featuring a robust design with high-grade forged steel rollers, it ensures consistent profile quality and dimensional accuracy for high-volume production environments. Equipped with an intuitive PLC control system, the machine supports multiple languages and automated operation, making it a reliable solution for efficient metal fabrication.
Technical Specifications
Material Capabilities
0.3 mm
Min Feeding Thickness
1 mm
Max Feeding Thickness
1,300 mm
Max Steel Coil Width

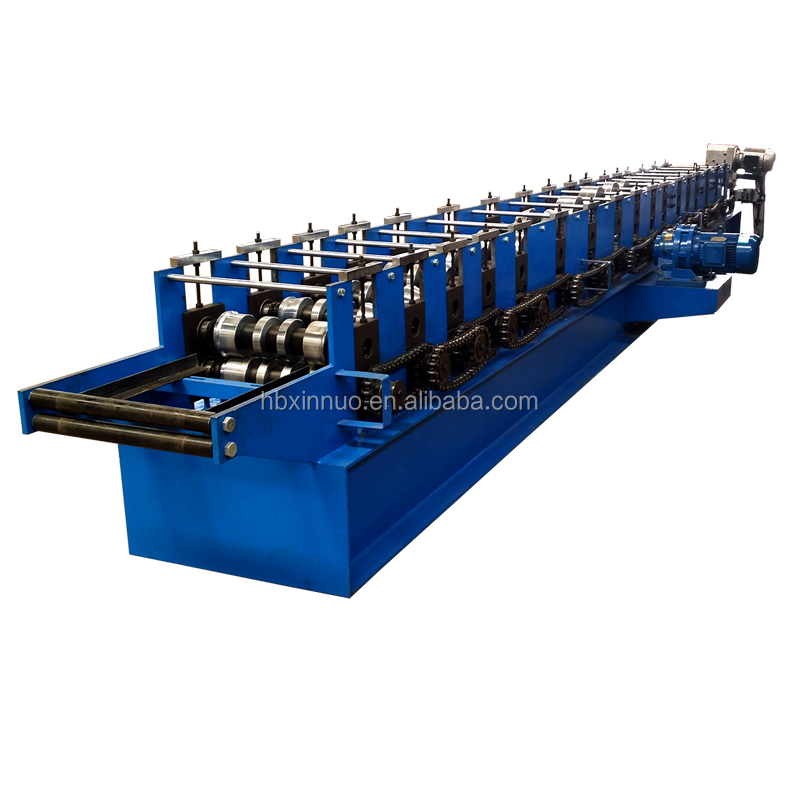

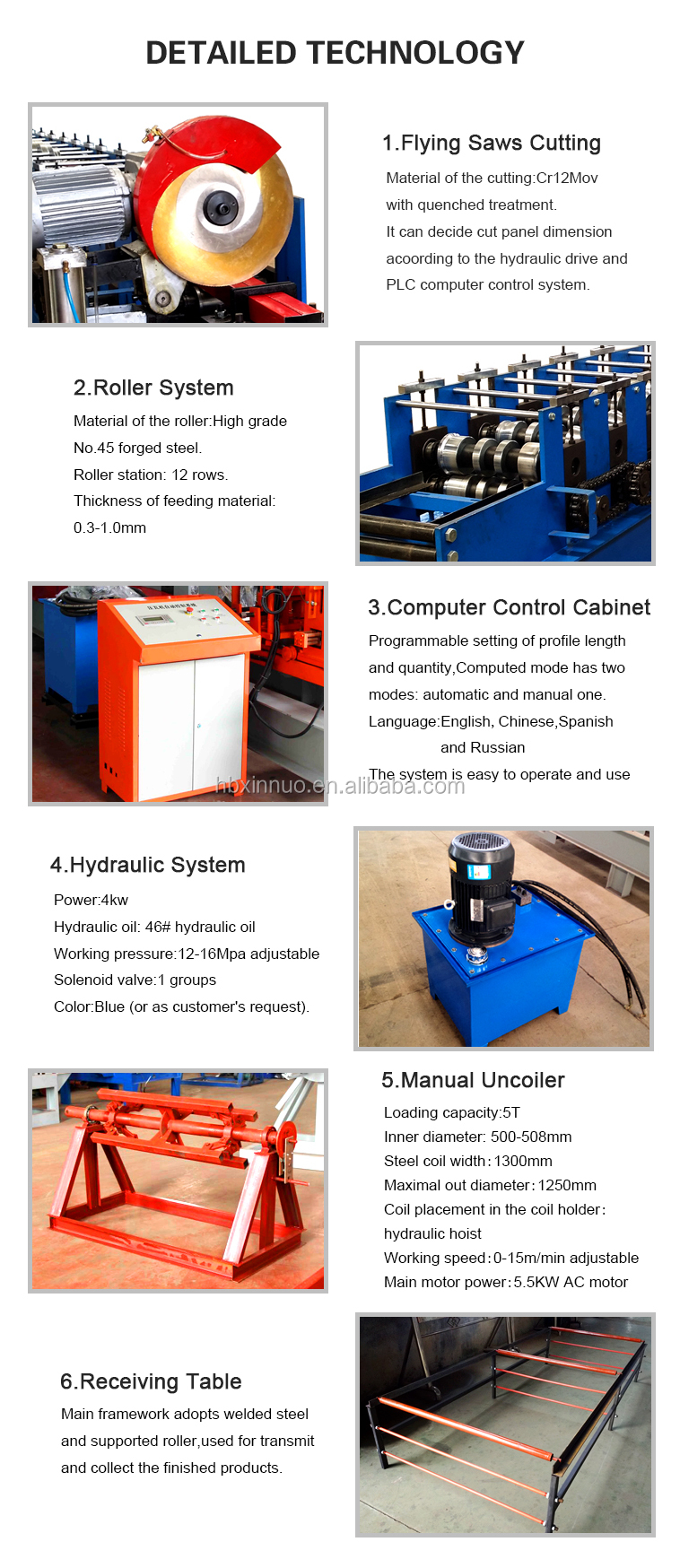

Roller System
- Material: High-grade No.45 forged steel
- Forming Stations: 12 rows
- Cutting Mechanism
- Flying saw cutting with Cr12Mov quenched steel material, hydraulically driven
Operational Parameters
Hydraulic System
4 kW
Power Output
16 Mpa
Max Pressure
Manual Uncoiler
- 5,000
- Working Speed
- 15 m/min
Automation & Control
Modes of Operation
AutomaticManual
- PLC Interface
- EnglishChineseSpanishRussian
Logistics
Packaging & Delivery
| Item | Detail |
|---|---|
| Main Machine | Nude |
| Control Box | Wooden Frame |
| Lead Time | 20 Days |
