Metal Forming and Bending Machine
This metal forming and bending machine is designed for shaping metal materials. It features a rotating work surface, adjustable bending components, and a user-friendly control panel for efficient metal forming.
Technical Specifications
Overview
Industrial Steel Bar Bending Solution

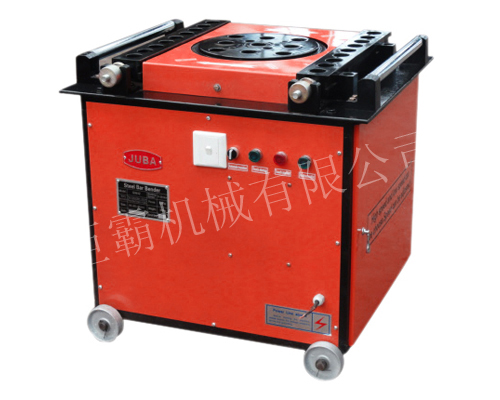

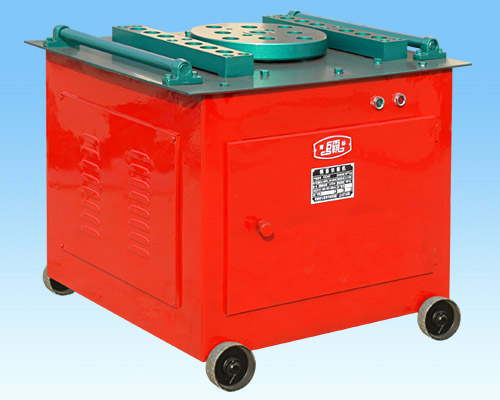

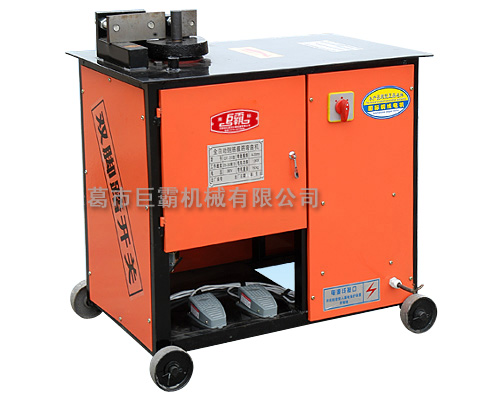

This heavy-duty steel bar bender is engineered for efficient and precise bending of metal reinforcement bars in construction and manufacturing environments. Designed with a robust frame and a rotating work surface, it offers reliable performance for shaping metal materials. The machine features adjustable bending angles, mobility wheels for workshop maneuverability, and user-friendly controls to ensure operational safety and efficiency.
Technical Specifications
- Bending Diameter Capacity
- 6-40 mm
- Motor Power
- 4 KW
- Voltage
- 380 V
- Rated Current
- 8.5 A
- Bending Speed
- 5-8 seconds
Physical Dimensions
- Net Weight
- 300 kg
- Overall Dimensions
- 850 x 760 x 780 mm
Features
- Key Operational Features
- Adjustable Bending AnglesDual Foot Pedal ControlHigh/Low Speed AdjustmentMobile Wheel Base
