Metal Coil Cut-to-Length Line
This cut-to-length line processes metal coils into specific sheet lengths. It uncoils, levels, cuts, and stacks metal sheets for use in manufacturing, construction, and automotive industries.
Technical Specifications
Overview
High-Precision Metal Processing
This Metal Coil Cut-to-Length Line is a comprehensive solution for processing metal coils into precise sheets or blanks. The system integrates uncoiling, leveling, high-speed servo feeding, and automatic shearing to ensure high throughput and consistent quality. Designed for industrial applications like manufacturing and automotive, it features advanced PLC controls and a pneumatic stacking system for efficient material handling.
Performance Metrics
Key Performance Metrics
15 Tons
Max Coil Capacity
21 pcs
Total Rollers
7.5 kW
Servo Motor Power

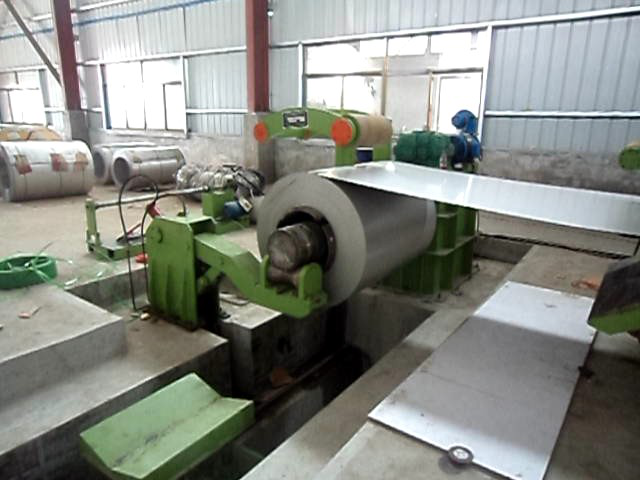

Decoiling System
- Entry Coil Car Capacity
- 15 Tons
- Inner Diameter Range
- φ508 mm
Straightening & Leveling
Leveling Roller Configuration
| Component | Specification |
|---|---|
| Leveling Rollers | 15 units |
| Supporting Rollers | 3 groups |
| Pinch Rollers | 2 units |
| Roller Diameter | 84 mm |
| Roller Distance | 90 mm |
- Surface Protection
- All rollers are leather plated to protect stainless steel surfaces from wear.
Control & Feeding
- Control Technology
- PLC ControlledServo Motor DriveMagic Eye Buffer ControlFrequency Control
Shearing System
Blade Material
Cr12MoV
- Shearing Method
- Hydraulic bottom-to-top cut with automatic PLC synchronization.
Output Specifications
Finished Sheet Dimensions
| Dimension | Range |
|---|---|
| Length | 500 - 4000 mm (Customizable) |
| Width | 500 - 1600 mm |
Stacking & Handling
Stacking System Features
- Pneumatic piling device
- PLC controlled lifting table
- Three 0.75kw motors for width/length adjustment
- Skid-proof and wearable transportation belt
- 2.2KW frequency control motor for line speed synchronization
