Medium Wall Heat Shrink Tubing
This medium wall heat shrink tubing provides a waterproof seal due to its hot-melt adhesive. It offers excellent corrosion, UV, and weathering resistance for reliable protection.
Technical Specifications
Product Overview
Medium Wall Heat Shrink Tubing
This medium wall heat shrinkable tubing is designed for electrical insulation and protection in demanding environments. Featuring a 3:1 shrink ratio and an integrated hot-melt adhesive, it provides superior moisture sealing and corrosion resistance. It is engineered for medium voltage applications up to 36kV, ensuring reliable performance in cable termination and intermediate connection insulation.
Key Features
- Features
- Medium Wall3:1 Shrink RatioHot-melt AdhesiveHalogen-freeUV ResistantWeather ResistantCorrosion Resistant
Technical Specifications
Color
Black
- Operating Temperature
- -40°C to +90°C
- Voltage Rating
- 36 kV
- Compliance
- IEC 60684
Dimensions and Sizing

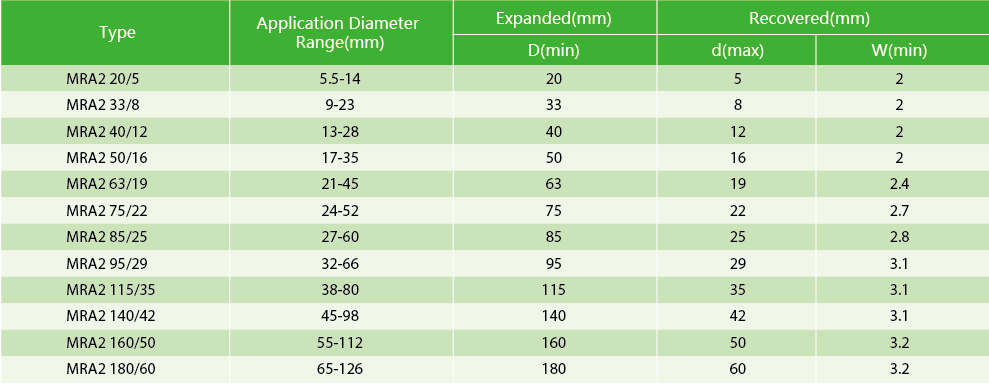

Size Specifications
| Type | Expanded (mm) | Recovered (mm) | Wall Thickness (mm) |
|---|---|---|---|
| MRA2 20/5 | 20 | 5 | 2 |
| MRA2 33/8 | 33 | 8 | 2 |
| MRA2 40/12 | 40 | 12 | 2 |
| MRA2 50/16 | 50 | 16 | 2 |
| MRA2 63/19 | 63 | 19 | 2.4 |
| MRA2 75/22 | 75 | 22 | 2.7 |
| MRA2 85/25 | 85 | 25 | 2.8 |
| MRA2 95/29 | 95 | 29 | 3.1 |
| MRA2 115/35 | 115 | 35 | 3.1 |
| MRA2 140/42 | 140 | 42 | 3.1 |
| MRA2 160/50 | 160 | 50 | 3.2 |
| MRA2 180/60 | 180 | 60 | 3.2 |
