Medium Wall Heat Shrink Tubing
This medium wall tubing offers superior electrical and mechanical properties, with a 3:1 shrinkage ratio. It is halogen-free and provides excellent resistance to corrosion, UV exposure, and weathering.
Technical Specifications
Product Overview
MR2 Medium Wall Heat Shrink Tubing
The MR2 medium wall heat shrink tubing is engineered for high-performance electrical insulation and mechanical protection in medium voltage applications up to 36kV. Featuring a 3:1 shrink ratio, it provides a secure, environmentally sealed covering that is resistant to moisture, pressure, corrosion, and UV weathering. This halogen-free solution is ideal for cable termination and intermediate connecting insulation, ensuring long-term reliability in demanding environments.
Technical Specifications
Max Voltage Rating
36 kV
Max Voltage
- Shrinkage Ratio
- 3:1
- Operating Temperature
- -40°C to +110°C
- Compliance Standards
- IEC 60684
Material Properties
Key Features
Halogen-freeUV ResistantWeather ResistantCorrosion ResistantMedium Wall
- Standard Color
- Black

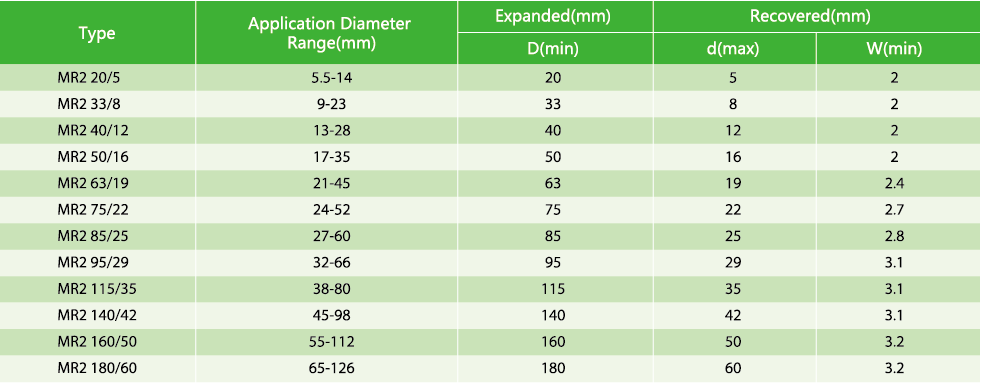

Size Selection Guide
Size Specifications
| Type | Expanded (mm) | Recovered (mm) | Min Wall (mm) |
|---|---|---|---|
| MR2 20/5 | 20 | 5 | 2 |
| MR2 33/8 | 33 | 8 | 2 |
| MR2 40/12 | 40 | 12 | 2 |
| MR2 50/16 | 50 | 16 | 2 |
| MR2 63/19 | 63 | 19 | 2.4 |
| MR2 75/22 | 75 | 22 | 2.7 |
| MR2 85/25 | 85 | 25 | 2.8 |
| MR2 95/29 | 95 | 29 | 3.1 |
| MR2 115/35 | 115 | 35 | 3.1 |
| MR2 140/42 | 140 | 42 | 3.1 |
| MR2 160/50 | 160 | 50 | 3.2 |
| MR2 180/60 | 180 | 60 | 3.2 |
