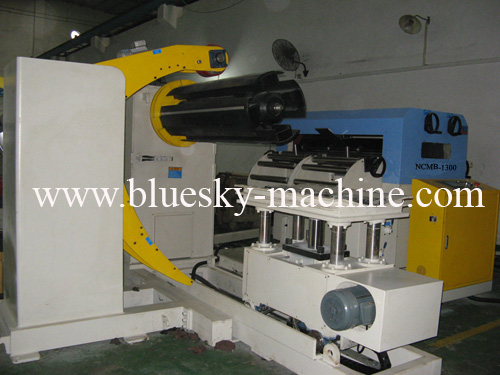

Medium Series Decoiler Straightener Servo Feeder
This medium series decoiler, straightener, and servo feeder processes metal coils. It combines uncoiling, straightening, and feeding material into a press or other processing equipment.
Technical Specifications
Overview
High-Performance Coil Processing
The Medium Series Decoiler Straightener Servo Feeder is a high-performance, space-saving solution designed to streamline metal coil processing. By integrating decoiling, straightening, and servo-feeding into a single unit, it ensures precise material advancement while removing curvature and imperfections. This system is engineered for efficiency, featuring robust construction and advanced controls to optimize productivity for medium-sized coil applications.
Capacity & Performance
- Maximum Material Thickness
- 3.2 mm
- Maximum Coil Weight
- 5 T
Key Features
Standard Equipment
- Electric eye loop control system
- Quenched and hard chromed rollers
- Worm gear screw device for feeding level adjustment
- PLC control feeding program
- Hold down arm for decoiler
- Air pressure disc braking device
- Variable frequency adjustable speed for uncoiler
- Optional Upgrades
- Hydraulic mandrel expansionElectromotion feeding level adjustmentHydraulic coil carMotorized passline adjustmentMotorized breaker roll adjustment
Technical Specifications
Available Model Configurations
| Model Identifier | Series Type |
|---|---|
| NCMB-I300 | Medium Series |
| NCMB-400 | Medium Series |
