Material Grinding Machine
This machine efficiently grinds and pulverizes materials into fine powders. It is constructed from stainless steel and features an adjustable grinding mechanism to control particle size.
Technical Specifications
Product Overview
Universal Grinding Solution

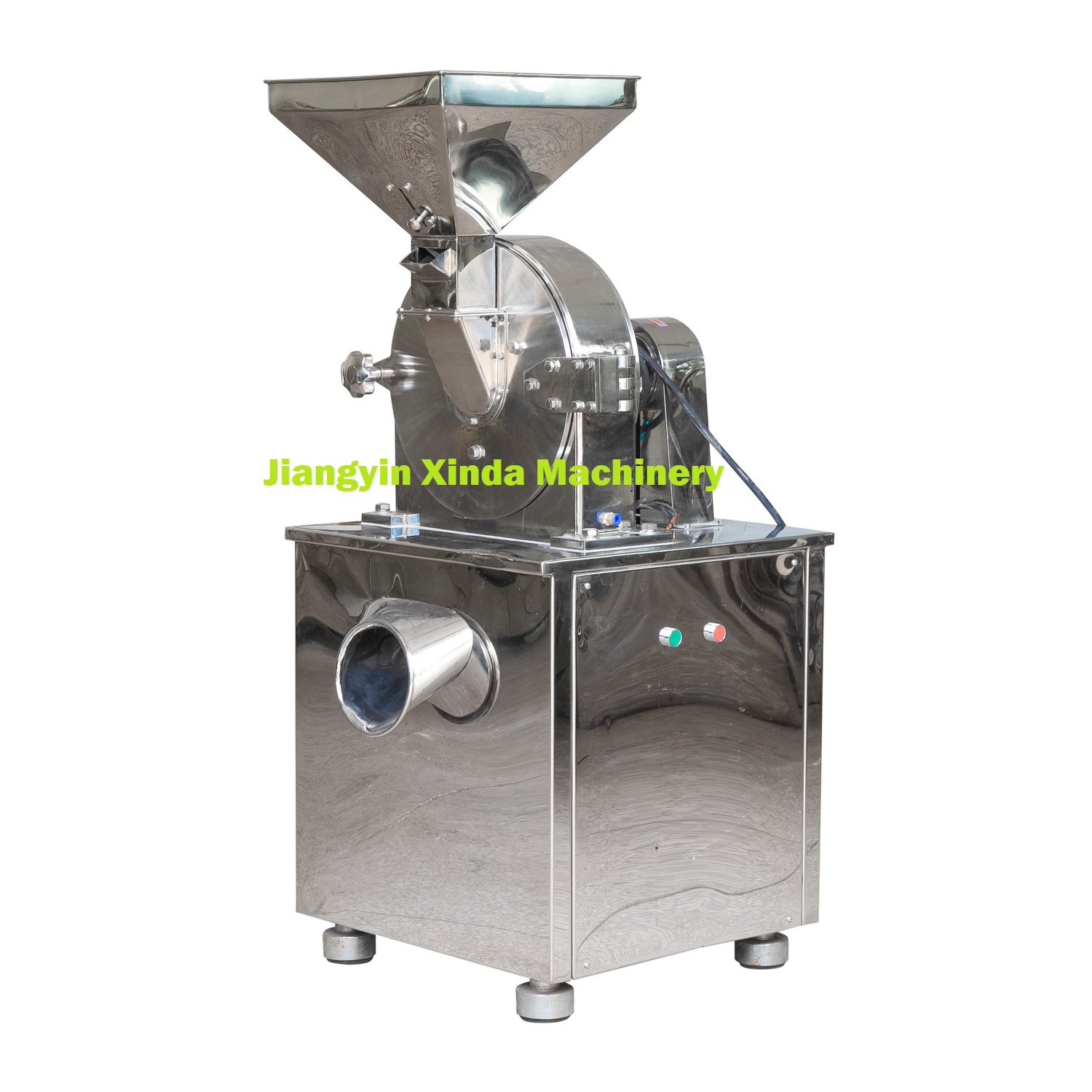

The WF Series Universal Crusher is designed for efficient material reduction in pharmaceutical, chemical, and food processing applications. Engineered with stainless steel, it features a sanitary, smooth-walled grinding chamber that facilitates easy cleaning and prevents powder accumulation. The machine utilizes a high-speed active and fixed fluted disc system to achieve consistent particle sizes, meeting strict national GMP requirements for industrial manufacturing.
Compliance & Design
- Certifications
- GMP StandardStainless Steel
Performance Metrics
Capacity Range
20 kg/h
Minimum Capacity
1,200 kg/h
Maximum Capacity
Technical Specifications
Model Specifications
| Model | Power (kW) | Weight (kg) | Speed (r/min) |
|---|---|---|---|
| WF-20 | 4 | 250 | 4,500 |
| WF-30 | 5.5 | 320 | 3,800 |
| WF-40 | 7.5 | 450 | 3,400 |
| WF-60 | 15 | 600 | 2,600 |
Operating Parameters
- Product Fineness
- 12-120 mesh
