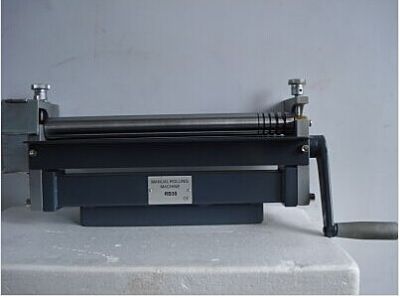

Manual Sheet Metal Slip Rollers
Manual sheet metal slip rollers are designed for shaping sheet metal into cylindrical forms. These machines feature adjustable rollers for controlling curvature and material thickness.
Technical Specifications
Product Overview
Professional Manual Slip Rollers
These manual sheet metal slip rollers are designed for precision forming of metal sheets into cylindrical shapes, tubes, and curves. Featuring a robust, durable construction and easy-to-operate hand crank, these machines are ideal for diverse metalworking and fabrication environments. With multiple models available, they provide reliable performance for varying plate widths and material thickness requirements.
Technical Specifications
Performance Metrics by Model
| Model | Max Width | Capacity | Min Diameter |
|---|---|---|---|
| SR12”(G30) | 305mm | 1.5mm | 30mm |
| SR12”(Z25) | 305mm | 1.0mm | 25mm |
| SR24”(Z38) | 610mm | 1.2mm | 38mm |
| SR36” | 915mm | 1.2mm | - |
Key Features
Machine Capabilities
- Manual hand-crank operation for controlled output
- Adjustable rollers for varying thickness and curvature
- Precision-ground rollers for accurate bending
- Sturdy base design suitable for workshop mounting
Compliance & Quality
- Quality Standards
- CE CertifiedIndustrial GradePrecision Ground
