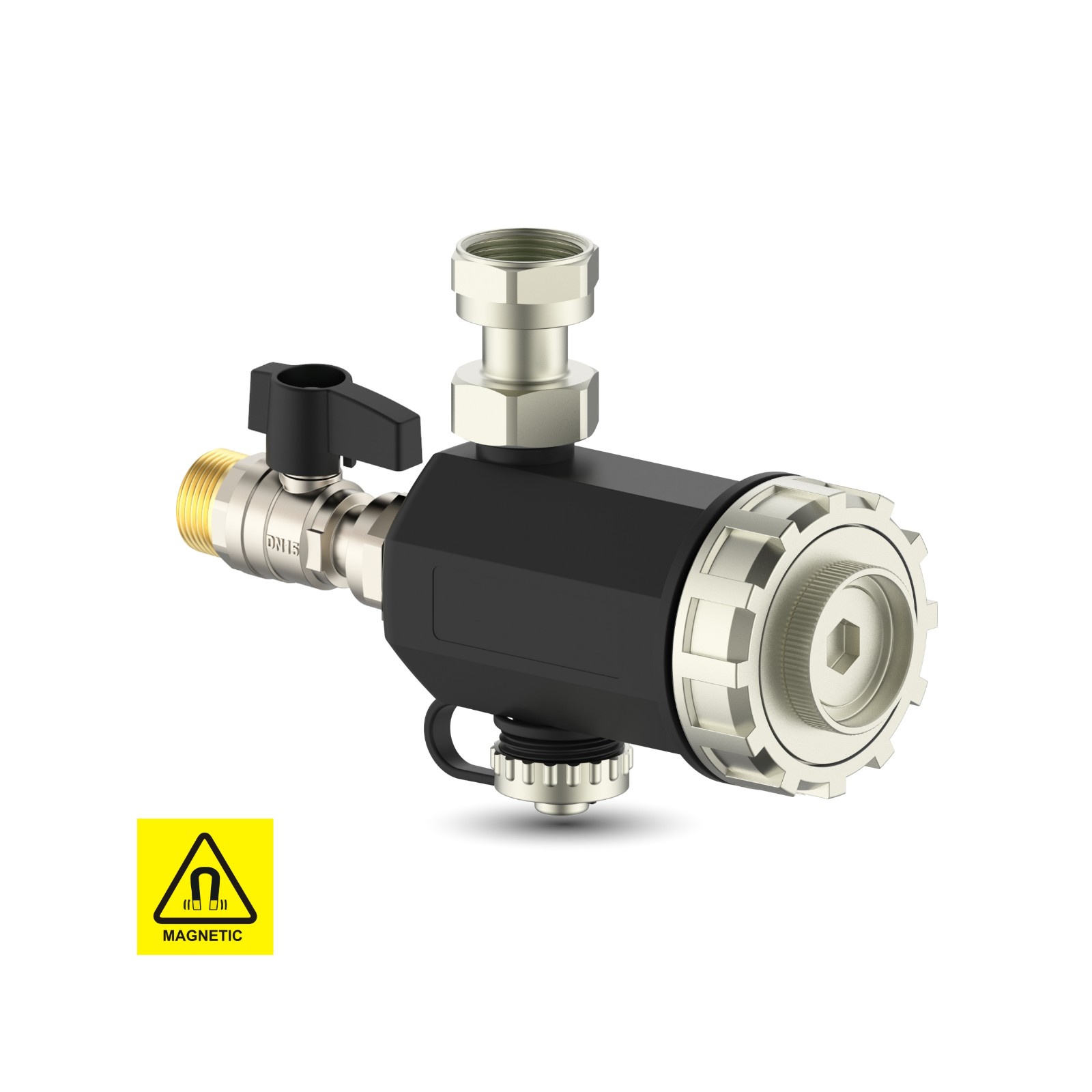

Magnetic Dirt Separator for Heating Systems
This magnetic filter is designed for heating systems to remove ferrous debris and particulate matter. Its compact size allows for installation in tight spaces.
Technical Specifications
Product Overview
High-Efficiency Magnetic Filtration
This magnetic dirt separator is engineered for heating systems to protect critical components like control valves and circulating pumps from failure. It effectively isolates loose particles and ferrous debris from the water system, ensuring cleaner circulation and extended equipment lifespan. Its compact design allows for installation in limited spaces, while the high-power 11,000 Gauss magnet and stainless steel mesh filter provide robust filtration performance.
Technical Specifications
Magnet Strength
11,000 Gauss
Magnetic Flux Density
- Connection Size
- G3/4" (DN15)
- Filtration Components
- 11,000 Gauss MagnetStainless Steel Mesh Filter

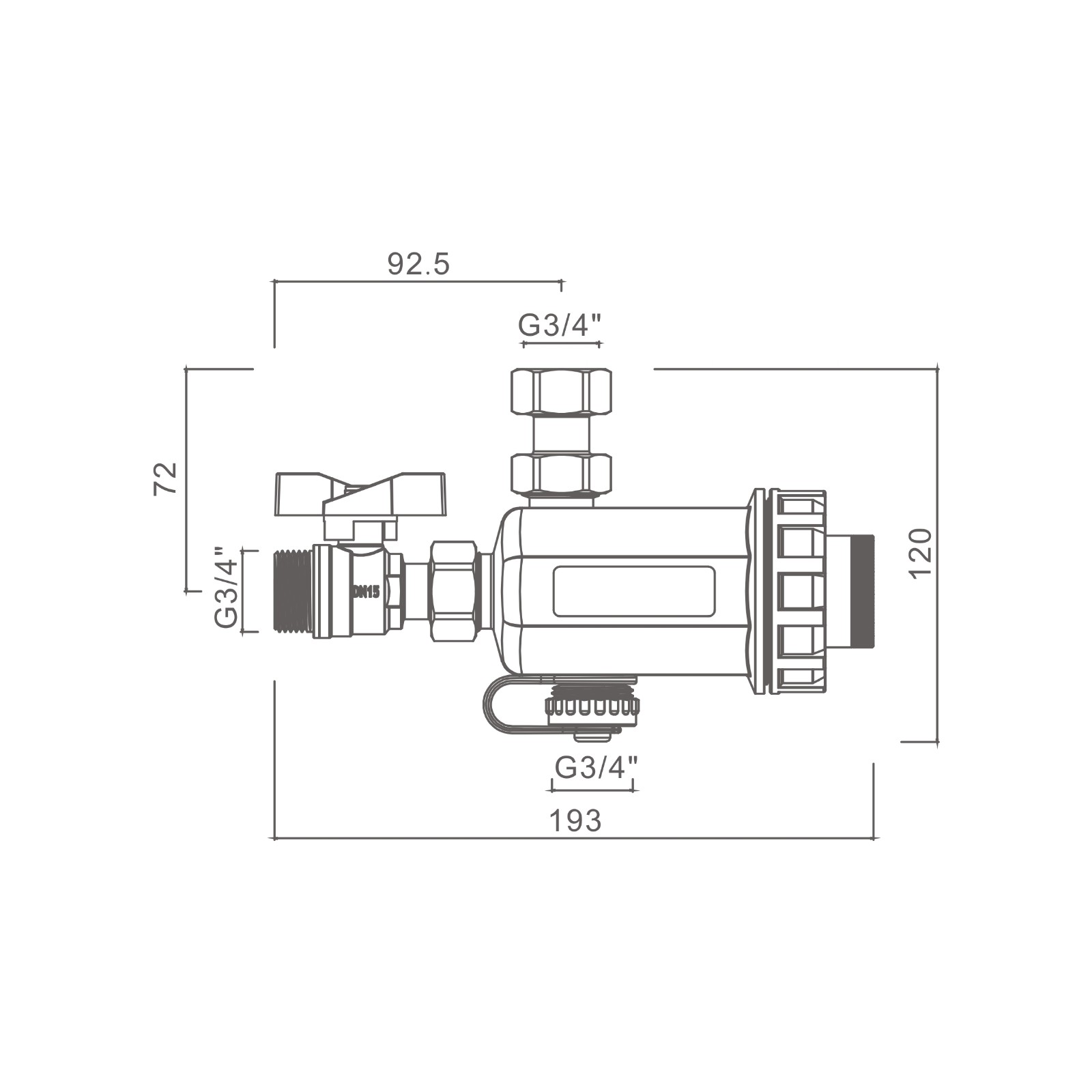

Dimensions
Dimensions (H x W x L)
| Dimension | Value (mm) |
|---|---|
| Height | 120 |
| Width | 92.5 |
| Length | 193 |
Features
Maintenance Features
- Large diameter drain plug for fast service
- Manual drain valve included
- Easy-access design for periodic cleaning
Suitable For
Heating SystemsHVAC&R SystemsBoilers
