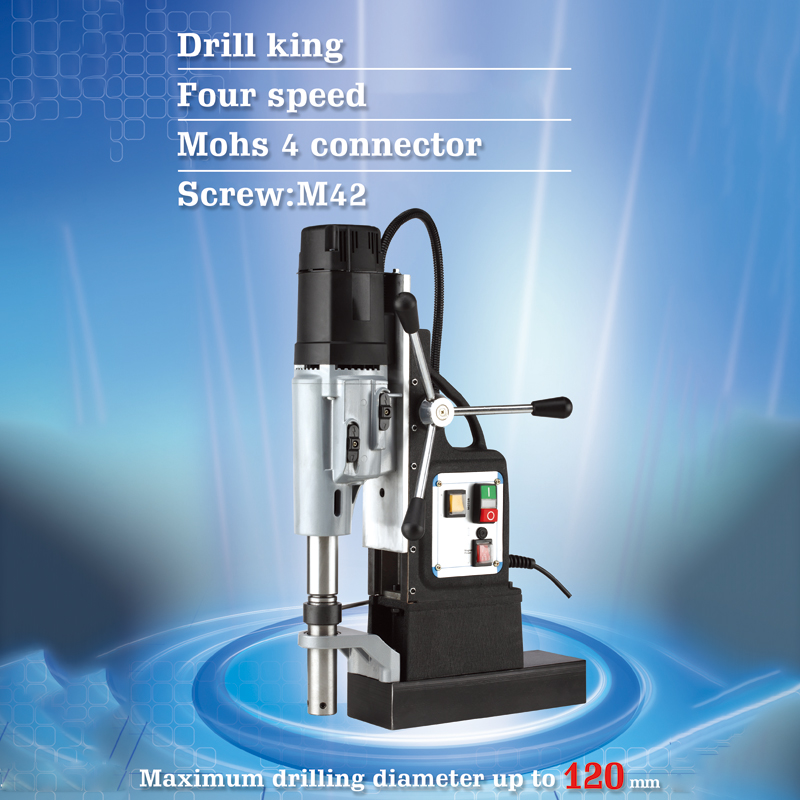

Magnetic Core Drilling Machine
This magnetic core drilling machine is designed for heavy-duty industrial applications. Its magnetic base provides strong adhesion to metal surfaces, ensuring precise and safe operation.
Technical Specifications
Overview
Industrial Magnetic Drilling Solution
This magnetic core drilling machine is engineered for precision and reliability in heavy-duty metalworking environments. Equipped with a powerful motor and a high-adhesion magnetic base, it ensures stable and accurate drilling on steel surfaces. The unit supports versatile operations including core drilling, twist drilling, and screw tapping, making it an essential tool for industrial construction and fabrication projects.
Performance & Capacity
Key Performance Metrics
18,000 N
Magnetic Adhesion
1,800 W
Power Output
210 mm
Stroke Length
Drilling Capacities
| Operation Type | Capacity Range |
|---|---|
| Cutter Capacity | Φ12 - Φ75 mm |
| Twist Drilling | Φ2.5 - Φ32 mm |
| Screw Tapping | M30 |
Technical Specifications
Electrical Data
- 230V / 50Hz / 1800W
- 120V / 60Hz / 1800W
Mechanical Specifications
| Feature | Specification |
|---|---|
| Spindle Holder | MT3 |
| No Load Speed | 260 / 460 RPM |
| Magnetic Core Size | 220 x 110 x 60 mm |
Logistics & Handling
Weight and Dimensions
| Item | Value |
|---|---|
| Net Weight | 22 kg |
| Gross Weight | 36 kg |
| Package Size | 48 x 20 x 68 cm |
- Packaging Type
- Plastic box
