Technical Specifications
Overview

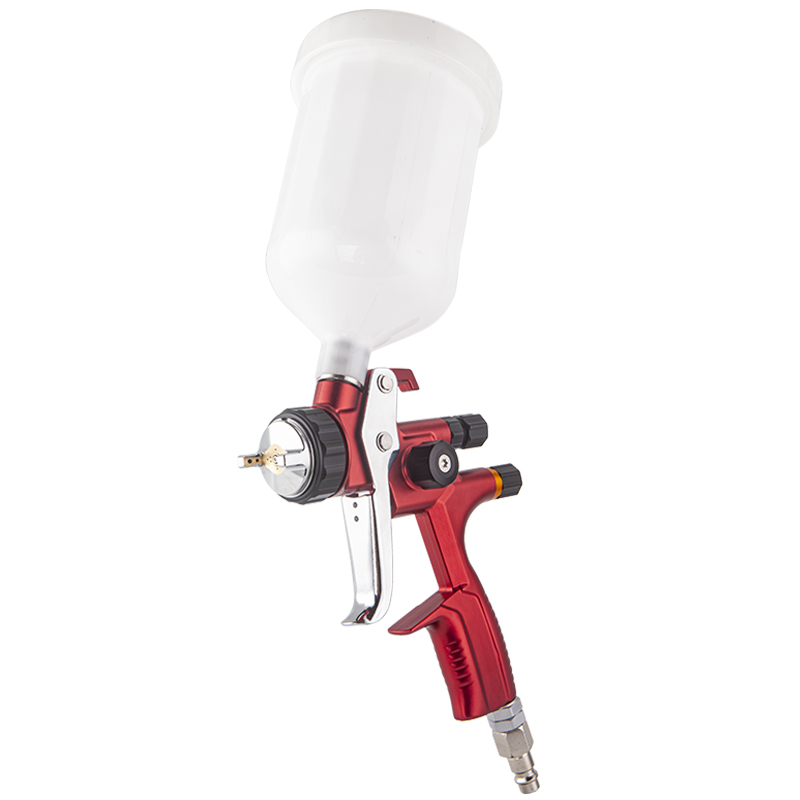

High-Efficiency LVMP Spray Gun
This professional-grade LVMP (Low Volume Medium Pressure) air spray gun is engineered for superior atomization in automotive refinishing and precision industrial applications. Designed for compatibility with water-soluble paints, varnishes, and metallic coatings, it achieves a high paint transfer rate of up to 65%. The tool features a CNC-machined body for durability and a precision stainless steel nozzle system for long-term reliability.
Technical Specifications
Key Performance Metrics
1.3 mm
Nozzle Size
2.5 BAR
Working Pressure
285 L/min
Air Consumption
300 mm
Spray Pattern Width
Physical Characteristics
| Property | Value |
|---|---|
| Weight | 0.48 kg |
| Paint Distance | 17-21 cm |
| Needle/Nozzle Life | 400,000 uses |
| Air Inlet | 360-degree swivel |
Features and Build
Operator Features
- Easy-adjust atomization regulator (1.5 turns)
- Quick-join high-sealability fluid inlet
- One-shot CNC fine-processed gun body
- 360-degree swivel air inlet
- Materials & Durability
- Dupont POM CupStainless Steel NozzleForged Gun BodyAnti-Corrosion Treated
