Technical Specifications
Overview
Professional Tensioning Solution
The JBGA and JBGB series tension clamps are engineered specifically for anchoring and tightening low voltage aerial cables equipped with an insulated neutral messenger. These clamps are designed to provide a secure, reliable grip that maintains cable tension, ensuring the integrity of overhead power line installations. Constructed from high-performance materials, they offer excellent resistance to environmental factors, corrosion, and UV radiation, making them suitable for demanding outdoor electrical distribution applications.
Standards & Compliance
- Standards
- EN 50483-3NF C 33-041
Technical Specifications
Material Construction
- JBGA Body: Corrosion resistant extruded aluminium alloy
- JBGB Body: Casted corrosion resistant aluminium alloy
- Support: Stainless steel
- Wedges: Weather resistant and anti-UV material with high mechanical strength

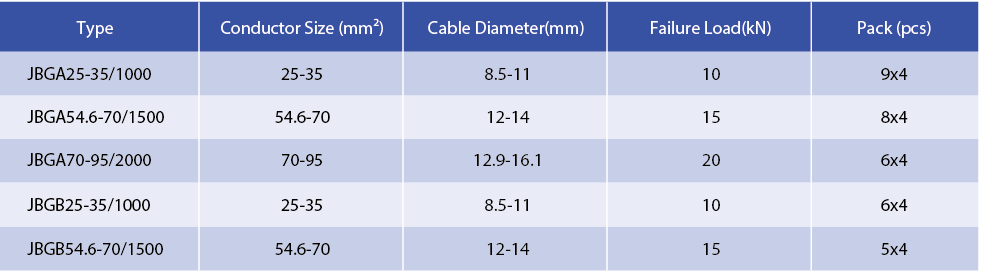

Model Specifications
| Model | Conductor Size (mm²) | Cable Diameter (mm) | Failure Load (kN) |
|---|---|---|---|
| JBGA25-35/1000 | 25-35 | 8.5-11 | 10 |
| JBGA54.6-70/1500 | 54.6-70 | 12-14 | 15 |
| JBGA70-95/2000 | 70-95 | 12.9-16.1 | 20 |
| JBGB25-35/1000 | 25-35 | 8.5-11 | 10 |
| JBGB54.6-70/1500 | 54.6-70 | 12-14 | 15 |
