LV ABC Suspension Clamp
Equipped with shear head bolts for consistent installation torque. This clamp prevents damage to the cable insulation layer during installation.
Technical Specifications
Product Overview
Application and Design
The SPC suspension clamp is engineered for the reliable installation and suspension of four-core self-supporting low voltage aerial cable lines on poles or walls. Its design incorporates shear head bolts to provide constant installation torque, ensuring secure attachment without compromising the cable insulation layer. The clamp features a robust hot-dip galvanized steel strap combined with weather-resistant and anti-UV rubber components for long-term durability in outdoor environments.
Technical Standards
- Manufacturing Standard
- EN 50483-2
Product Specifications

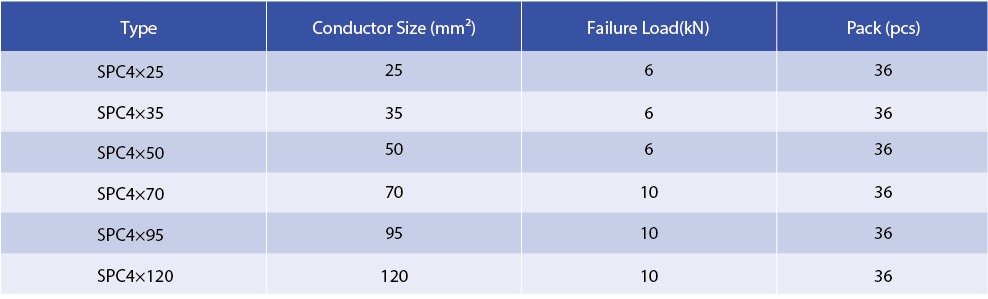

Model Specifications
| Type | Conductor Size (mm²) | Failure Load (kN) | Pack Quantity (pcs) |
|---|---|---|---|
| SPC4x25 | 25 | 6 | 36 |
| SPC4x35 | 35 | 6 | 36 |
| SPC4x50 | 50 | 6 | 36 |
| SPC4x70 | 70 | 10 | 36 |
| SPC4x95 | 95 | 10 | 36 |
| SPC4x120 | 120 | 10 | 36 |
Construction Features
Key Features
- Equipped with shear head bolts for constant installation torque
- Protects cable insulation during installation
- No loose parts to prevent component loss on-site
- Materials
- Hot-dip galvanized steelWeather resistant rubberAnti-UV material
