Technical Specifications
Overview
Product Overview

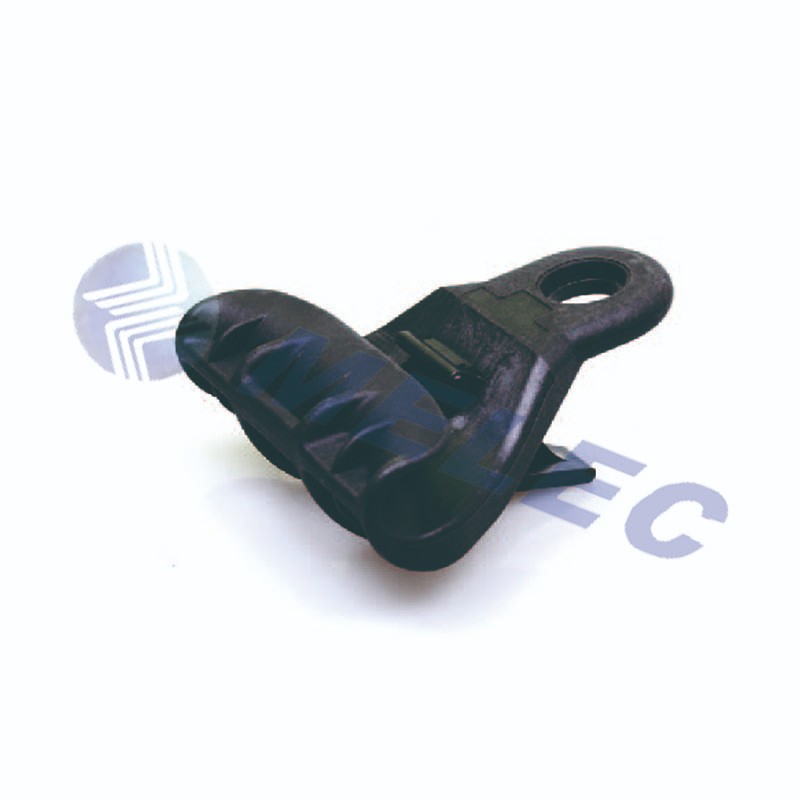

The F-MA and F-AL suspension clamps are engineered for the secure suspension of LV-ABC cables on poles using an insulated neutral messenger. These clamps are constructed from corrosion-resistant, anti-UV materials with high mechanical strength to ensure long-term reliability in outdoor environments. Designed for efficiency, they allow for installation without additional tools and feature a secure locking mechanism that prevents loose parts from falling during the setup process.
Technical Specifications
Installation Features
- No additional tools required
- No loose parts during installation
- Neutral messenger secured in groove
- Adjustable grip locking (F-MA)
- Binding bolt with wing nut locking (F-AL)
Performance Data
| Type | Conductor Size (mm²) | Failure Load (kN) | Pack (pcs) |
|---|---|---|---|
| F-MA16-95/600 | 16-95 | 6 | 50 |
| F-AL16-95 | 16-95 | 22 | 50 |
- Standards
- EN 50483-3NF C 33-040
Material Composition
Material Properties
- Corrosion resistant
- Anti-UV material
- High mechanical strength
- Aluminium alloy (F-AL model)
