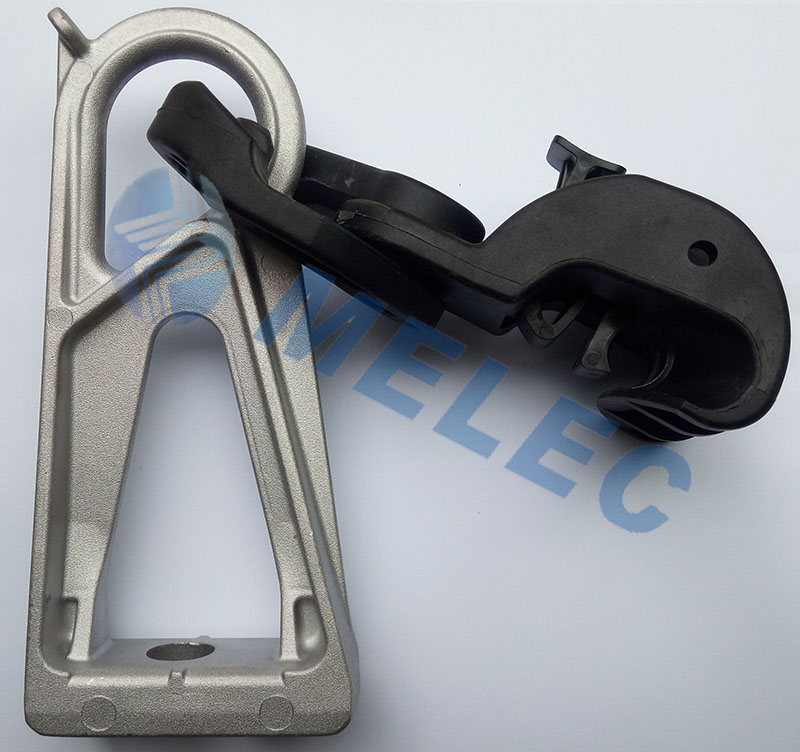

LV-ABC Cable Suspension Clamp
This suspension clamp is used to hang LV-ABC cables on poles with the insulated neutral messenger. The neutral messenger is placed in the groove and locked by an adjustable grip device to fit different cable sizes.
Technical Specifications
Product Overview
Professional Suspension Solution
The F-ALMB and F-MB suspension clamps are engineered for reliable overhead power distribution, specifically designed to secure LV-ABC cables to poles using an insulated neutral messenger. Featuring a corrosion-resistant aluminum alloy bracket and weather-resistant, UV-stabilized polymer components, these clamps ensure long-term durability in outdoor environments. Their intelligent design allows for tool-free installation and secure cable locking, making them an efficient choice for modern electrical infrastructure projects.
Technical Specifications
Performance Metrics
12 kN
Failure Load
16 mm²
Min Conductor Size
95 mm²
Max Conductor Size

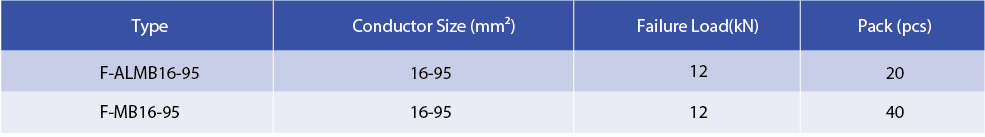

Model Specifications
| Model | Conductor Range | Failure Load | Pack Size |
|---|---|---|---|
| F-ALMB16-95 | 16-95 mm² | 12 kN | 20 pcs |
| F-MB16-95 | 16-95 mm² | 12 kN | 40 pcs |
- Compliance Standards
- EN 50483-3NF C 33-040
Key Features
Installation Advantages
- Tool-free installation for increased efficiency
- Captive parts design prevents components from falling during assembly
- Adjustable grip device accommodates various cable sizes
- Corrosion-resistant aluminum alloy construction
- High-strength, weather-resistant, and UV-stabilized materials
