Technical Specifications
Overview

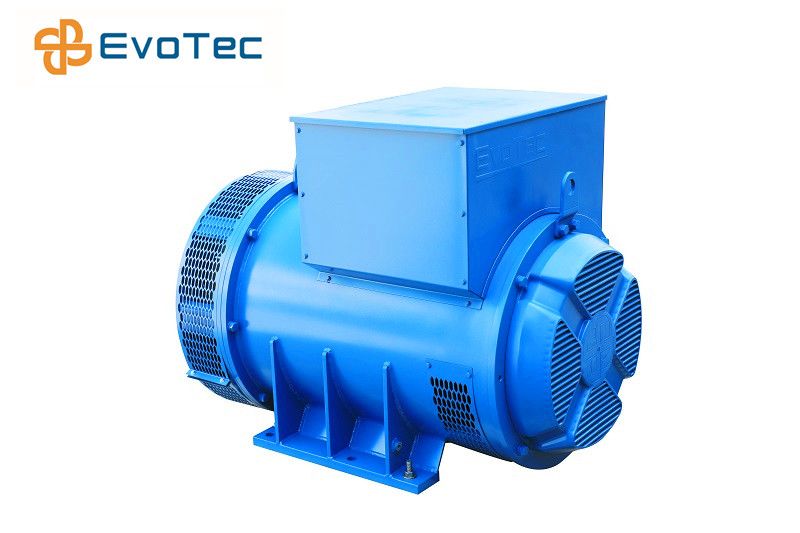

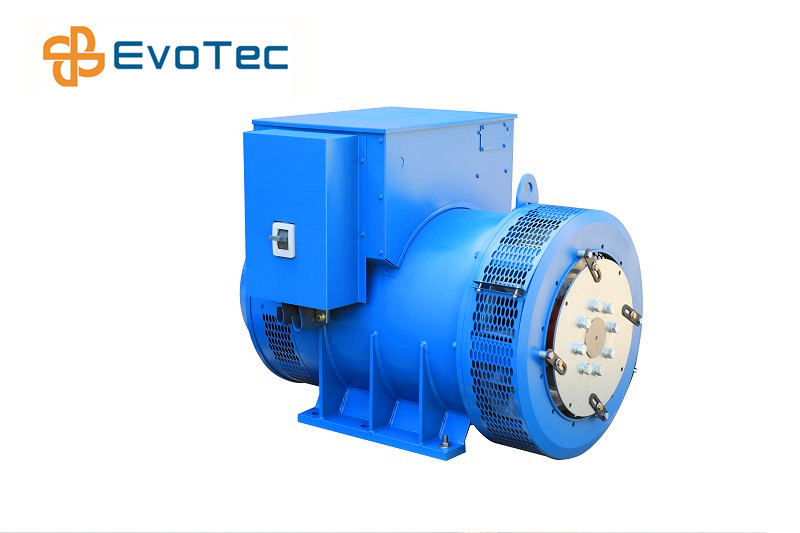

High-Performance Low Voltage AC Alternator
This industrial-grade low voltage AC alternator is engineered for reliable power generation in demanding environments. Built to international standards, it features advanced vacuum pressure impregnation for superior insulation and a robust, dynamically balanced rotor design. Designed for versatility, it supports various mounting configurations and is suitable for parallel operation with compatible systems.
Standards & Compliance
- Compliance Standards
- IEC60034-1GB755BS4999-5000NEMA MG 1.22CE Marking
Performance Metrics
Key Performance Indicators
10 %
Overload Capacity
300 %In
Short Circuit Current
50 <
TIF Value
- THF Interference
- 2 %
Construction & Design
Available Mounting Styles
- Single bearing with flange and flexible disc coupling
- Double bearing with flange coupling
- Double bearing without flange
Degree of Protection
IP21
- Insulation Class
- Class H
- Winding Impregnation
- Vacuum Pressure Impregnation (VPI)
