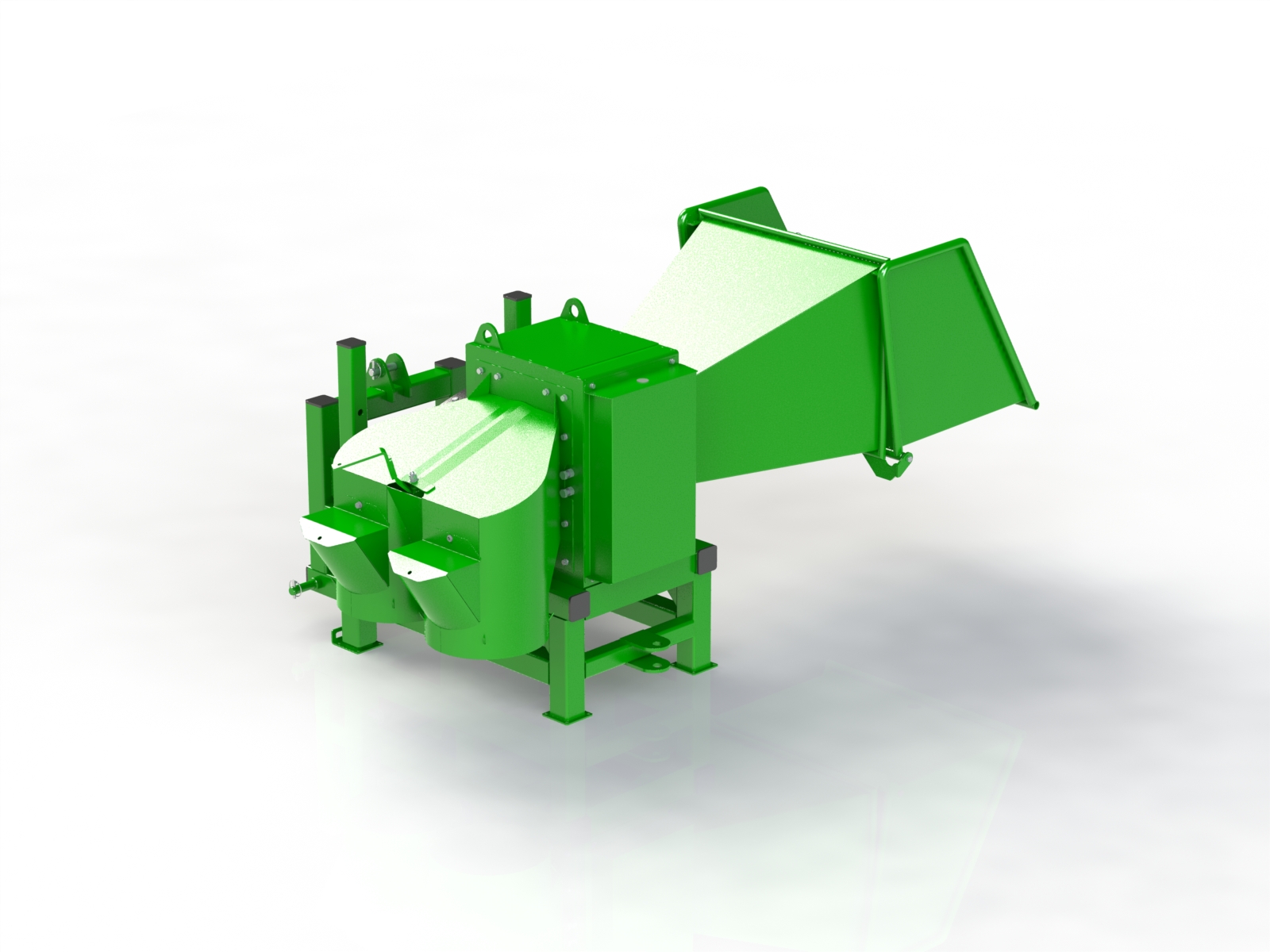

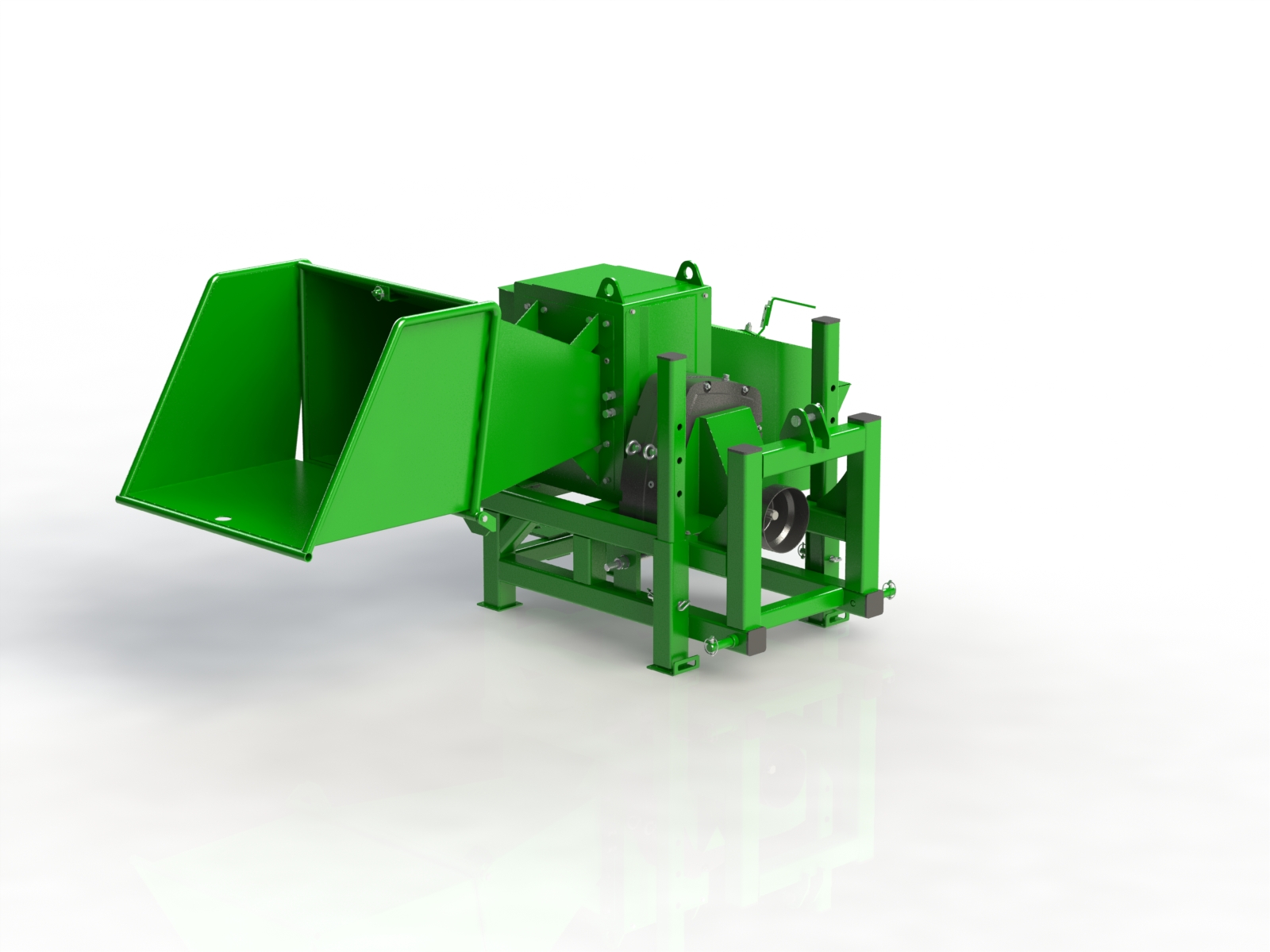

Log and Branch Splitter
This log and branch splitter is designed for efficient processing of logs and branches. Its sturdy construction ensures durability and long-term performance in demanding environments.
Technical Specifications
Overview
Efficient Wood Processing Solution
The Log and Branch Splitter is a robust agricultural machine designed for the efficient processing of wood waste and branches. It features a sturdy construction and a wide input hopper, making it an essential tool for streamlining wood processing operations in forestry and farm settings. The machine is designed for safety and reliability, ensuring productive performance in demanding environments.
Technical Specifications
Overload Clutch Torque
1,600 Nm
Torque Limit
- Max Diameter (Hard, Dry Oak)
- 80 mm
- Max Diameter (Hard, Fresh Oak)
- 100 mm
- Max Diameter (Soft, Fresh Pine)
- 120 mm
Operational Features
- Mounting
- Rear three-point hitch tractor mount
- Drive System
- Cardan shaft with overload clutch
- Safety Features
- Overload protectionEnclosed moving partsSafety guardsOutput chute
