Technical Specifications
Overview
Professional Generator Load Testing
This heavy-duty load bank is designed for reliable generator testing, featuring portable mobility with industrial-grade casters. It utilizes high-grade nickel resistance wire in a U-type form with cooling fins to minimize heat conduction. The unit is equipped with robust industrial fan blowers to ensure optimal thermal management during operation.
Technical Specifications
- Cooling System
- Heavy-duty industrial fan blowers
- Resistance Elements
- Metal sheathed with cooling fins, high-grade nickel resistance wire
- AC Voltage Fluctuation Tolerance
- 15 %
- Frequency Compatibility
- 50 Hz60 Hz
Features & Control
Load Testing Modes
- Incremental load testing via 8 switches
- Variable load testing via rheostat
Monitoring Capabilities
VoltageAmperesFrequencyPower Factor (Optional)
Design & Construction
Portability
- Heavy-duty casters for mobility
- Top-fitted eye hooks for lifting
- Enclosure Type
- NEMA Type 1
Available Models
Capacity Range

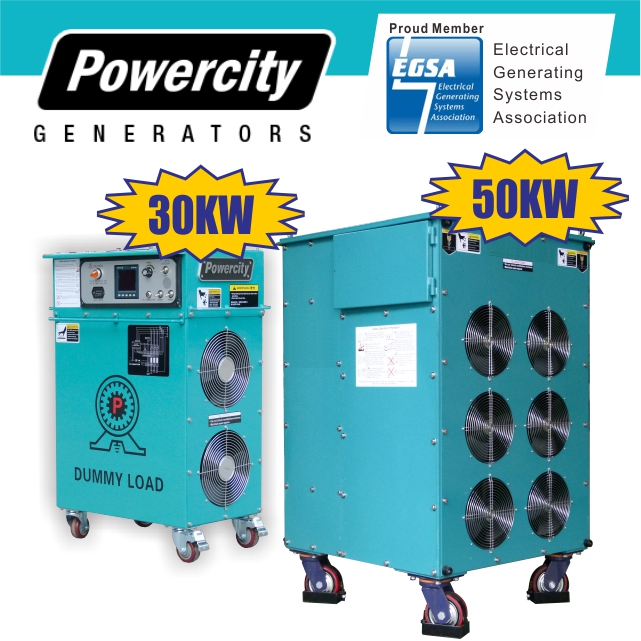

30 kW
Small Capacity
50 kW
Medium Capacity

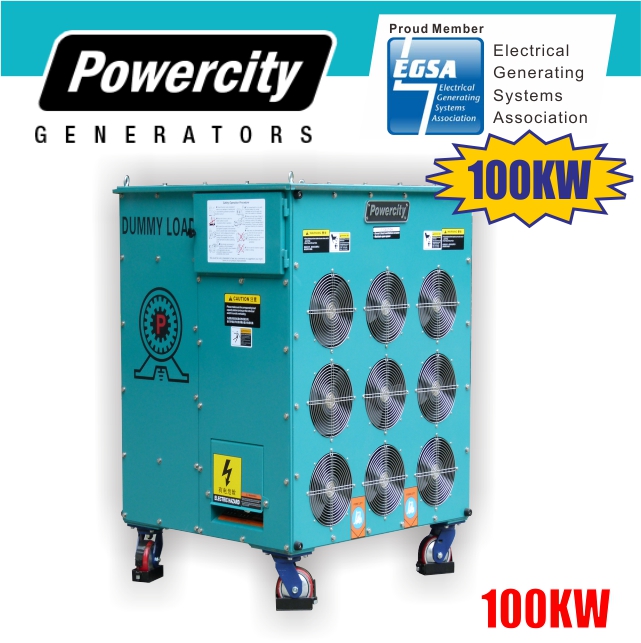

100 kW
Standard Capacity
300 kW
High Capacity Start
500 kW
High Capacity End
