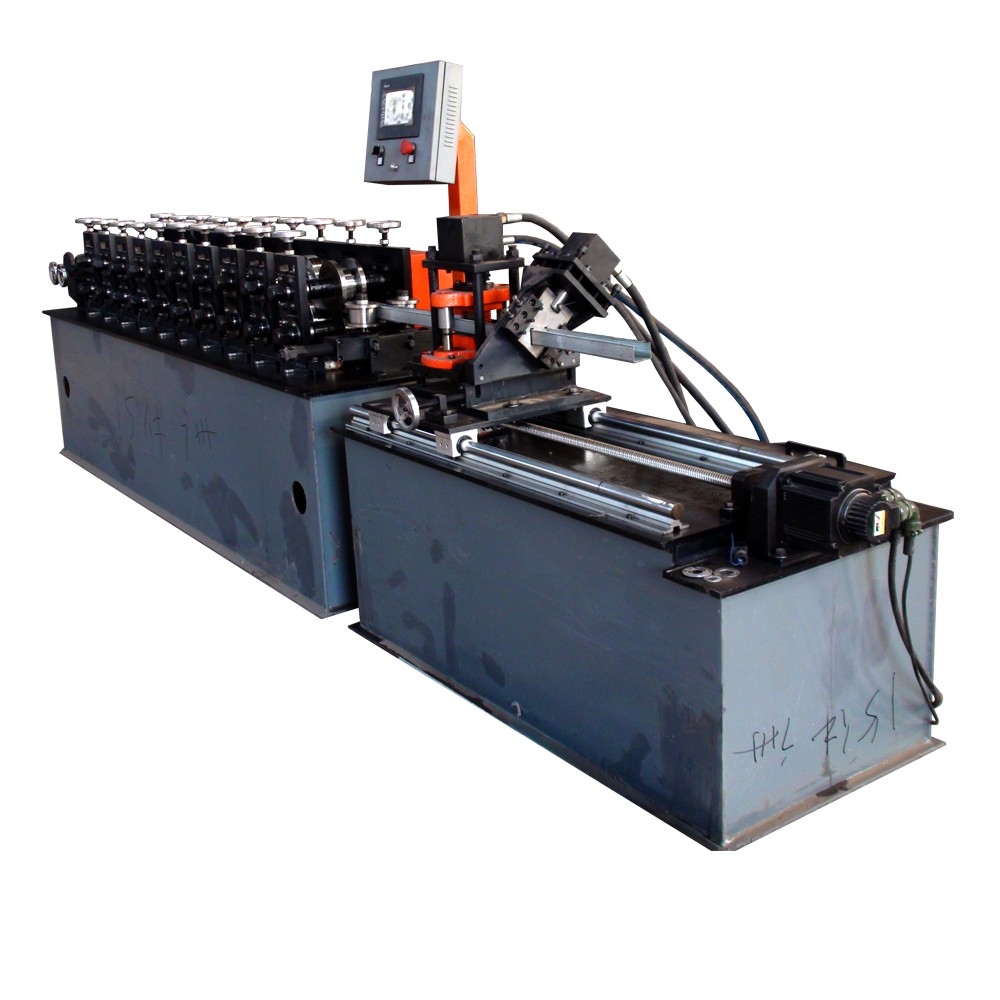

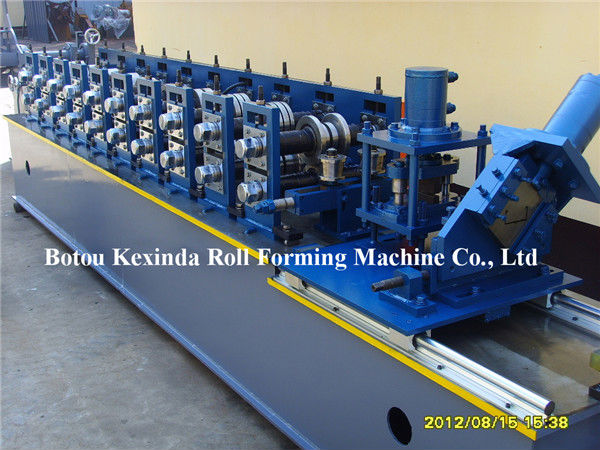

Light Keel Roll Forming Machine for Metal Ceiling Tiles
This machine is designed for producing light keels used in metal ceiling tiles. It utilizes a series of rollers to gradually shape metal strips into the desired profile.
Technical Specifications
Overview
High-Efficiency Light Keel Production
This high-performance roll forming machine is engineered for the efficient production of light keel profiles used in metal ceiling tile systems. It features a robust steel frame and precision-engineered forming stations to ensure consistent, high-quality output. Designed for automated operation, it streamlines manufacturing processes while maintaining strict dimensional accuracy for industrial and commercial ceiling applications.
Technical Specifications
- Operation Mode
- Automatically
- Roller Material
- 45# steel
- Formed Profile Dimensions
- 25 x 25 mm
Production Capabilities
Production Speed
25 m/min
Max Speed
- Compatible Materials
- Galvanized Sheet
- Sheet Thickness
- 0.35 - 0.6 mm
Electrical & Power
- Input Voltage
- AC 380V / 50-60Hz
- Total Power
- 6 kW
Machine Dimensions
- Machine Size (LxWxH)
- 4000 x 1300 x 1100 mm
