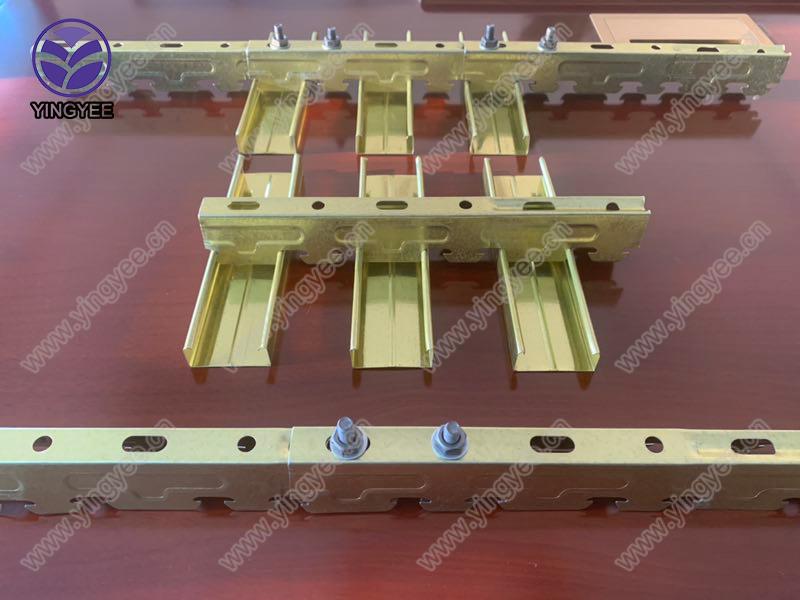

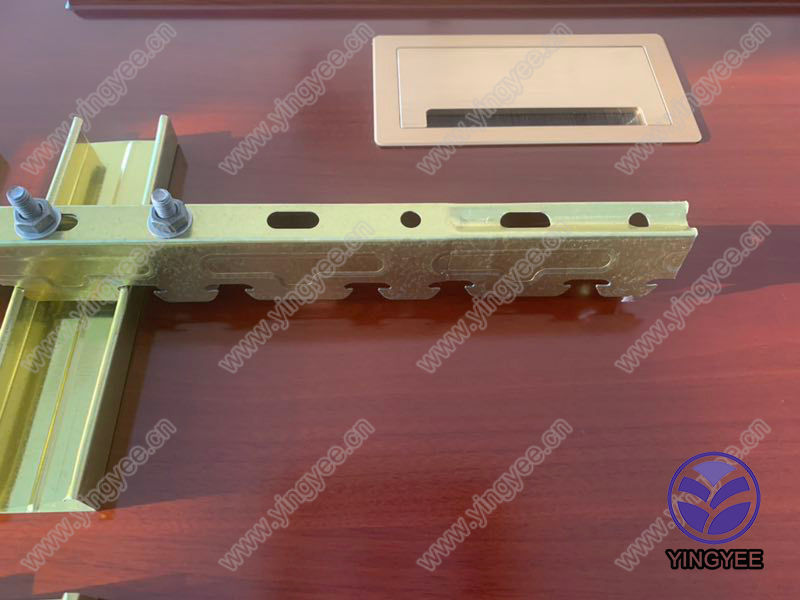

Light Keel Roll Forming Machine
This machine efficiently produces light gauge metal profiles. Adjustable parameters allow for customization of the keel's dimensions.
Technical Specifications
Product Overview
High-Efficiency Light Keel Production
This specialized roll forming machine is engineered for the precise manufacturing of light gauge metal profiles used in construction and lighting industries. It features a robust frame construction for stability and utilizes a series of forming rollers to gradually shape metal strips into consistent, high-quality keel profiles. Designed for mass production, the system includes advanced automation features to minimize material waste and ensure dimensional accuracy.
System Components
Included Components
- Manual decoiler (3T capacity)
- Adjustable feeding system
- Main forming machine
- No-stop flying cutter
- Hydraulic station with cooling fan
- PLC control system
- Automatic collection table
- Wrench set
Technical Parameters
Key Performance Metrics
5.5 kW
Main Power
50 mm
Shaft Diameter
3 T
Decoiler Capacity
Construction Materials
| Component | Material/Spec |
|---|---|
| Shaft | 45# Steel (Chromed) |
| Roller | Cr12 |
- Cutting Method
- No-stop cutting
- Feeding Capability
- Width adjustable
