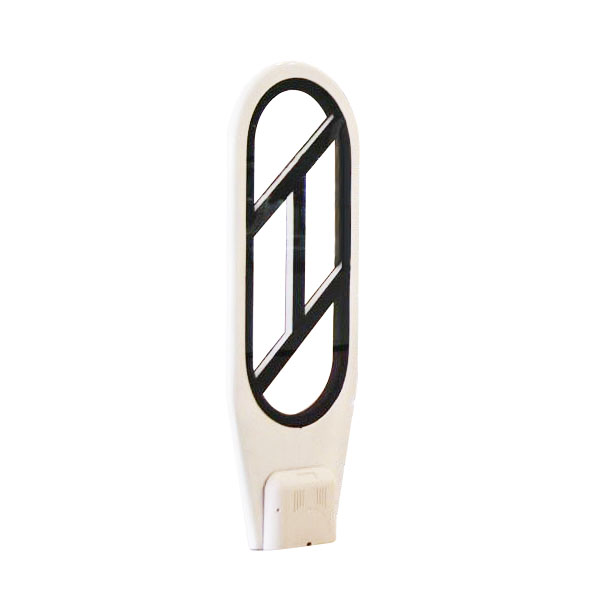

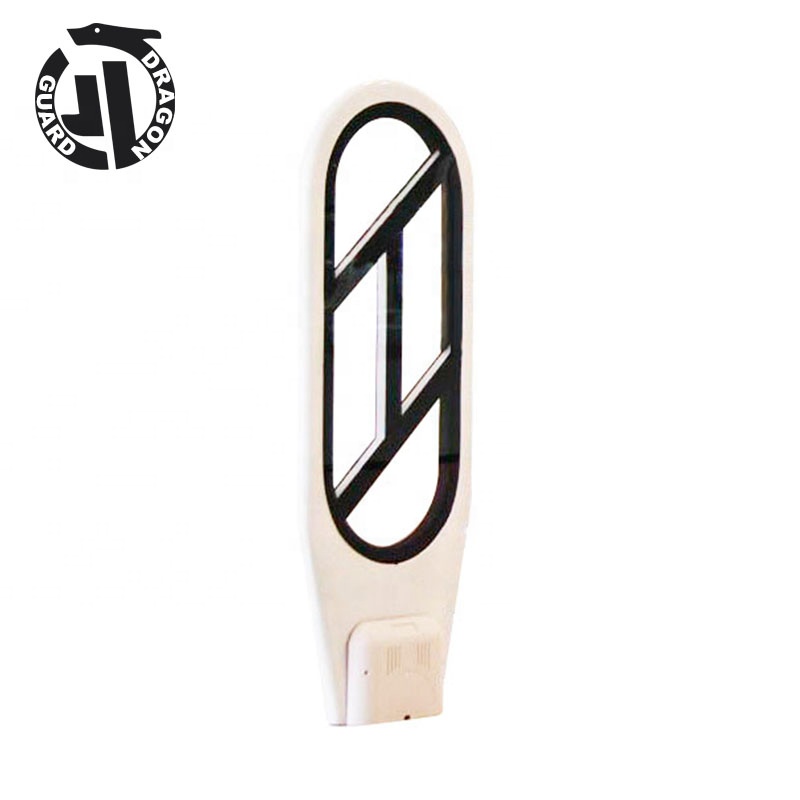

Library Anti-Theft EM Alarm Antenna System
Electromagnetic technology is used in this alarm system to prevent theft in libraries. The antenna detects tagged items as they pass through the detection zone, triggering an alarm.
Technical Specifications
Overview
Advanced Library Security Solution
This EM (Electromagnetic) Alarm Antenna System is a high-performance security solution specifically designed for libraries and retail environments. It utilizes advanced signal processing to ensure high sensitivity and a wide detection range while minimizing false alarms. The system is highly customizable, allowing for seamless integration into various architectural layouts to protect valuable assets effectively.
Technical Specifications
- Technology
- Electromagnetic (EM)
- Model Number
- ES002
- Material
- Advanced-Resin-Glass + MDF
- Certifications
- CEISOROHSSGSMSDS
Installation & Performance
Detection Performance
100 cm
Max Single Aisle Width
180 cm
Max Double Aisle Width

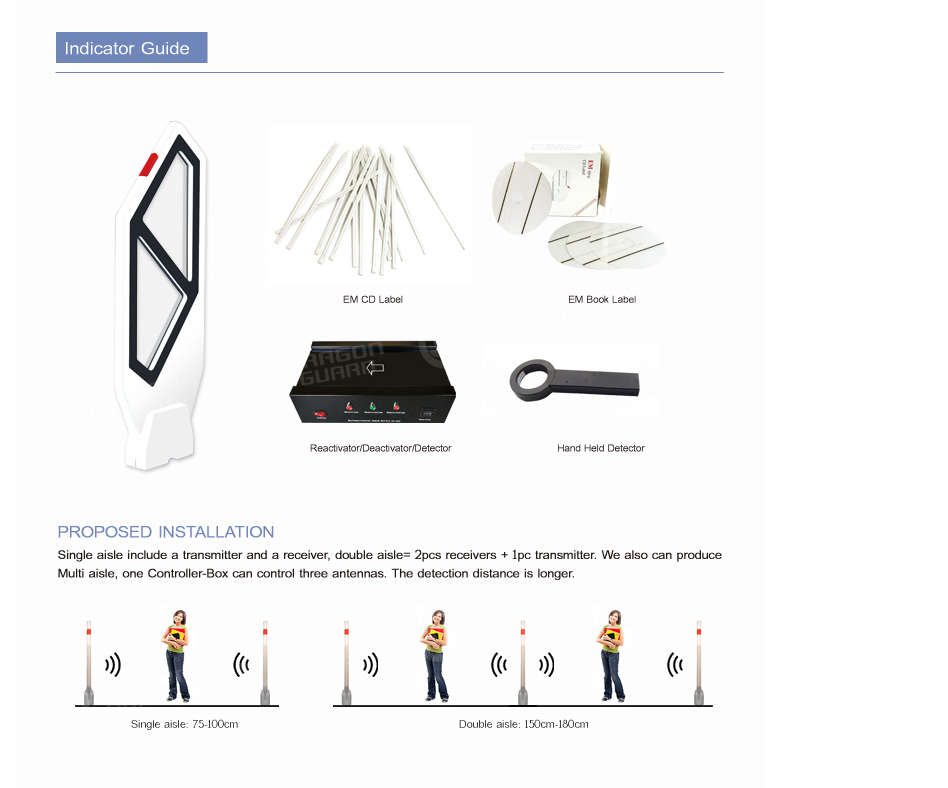

Installation Configurations
| Configuration | Components | Recommended Distance |
|---|---|---|
| Single Aisle | 1 Transmitter + 1 Receiver | 75 - 100 cm |
| Double Aisle | 1 Transmitter + 2 Receivers | 150 - 180 cm |
| Multi Aisle | 1 Controller (up to 3 Antennas) | Customizable |
Customization Options
Available Customizations
- Custom Logo and Branding
- Frame Material and Color
- Antenna Shape
- Assigned PCB Board
- Alarm Light Configuration
- Cable Length
- Integrated Advertisement Panels
System Components
Compatible Accessories
- EM CD Labels
- EM Book Labels
- Reactivator/Deactivator/Detector
- Handheld Detector
- People Counter (Optional)
Logistics & Packaging
Shipping Specifications
| Item | Weight | Dimensions |
|---|---|---|
| Antenna System (1 set/ctn) | 36.0 kg | 150 x 70 x 30 cm |
| Controller Box (1 set/ctn) | 6.5 kg | 43 x 33 x 32 cm |
- Supply Capacity
- 100 Sets per Week
