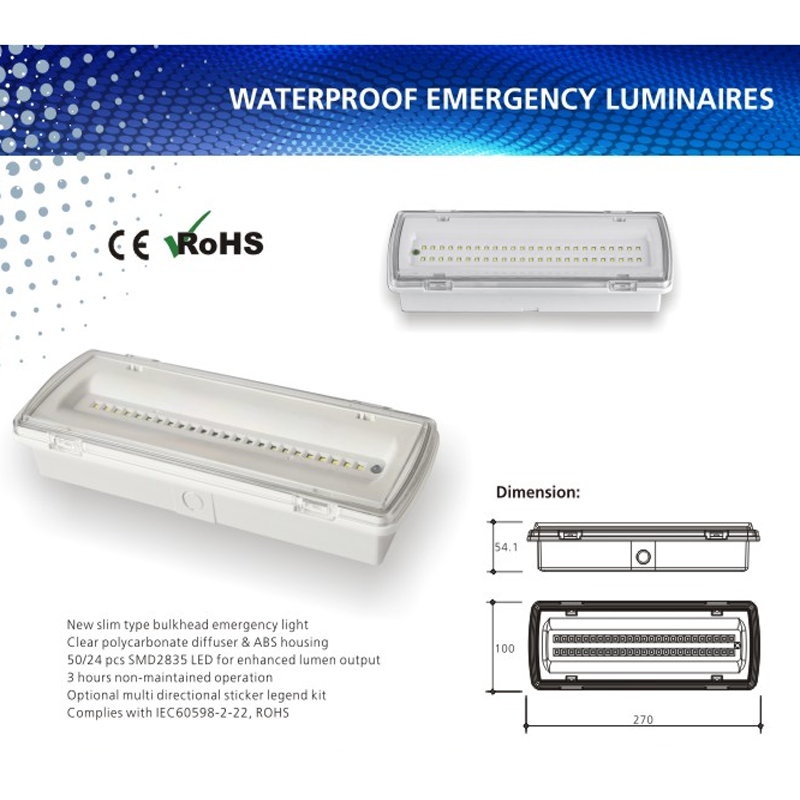

LED Emergency Bulkhead Light
This LED emergency light provides illumination during power outages. It features a polycarbonate diffuser, ABS housing, and offers a 3-hour backup.
Technical Specifications
Overview
Reliable Emergency Lighting
This slim-profile LED emergency bulkhead light is designed for safety and durability in commercial environments. Featuring a robust ABS housing and a clear polycarbonate diffuser, it provides dependable illumination during power outages. The unit is available in both maintained and non-maintained operation modes, ensuring flexibility for various safety compliance requirements.
Physical Characteristics
IP Rating
IP65
- Dimensions
- 54.1mm (H) x 100mm (W) x 270mm (L)
Performance Metrics
Key Performance Metrics
3 Hours
Emergency Duration
24 Hours
Charging Time
Technical Specifications
Model Specifications
| Feature | 507L50 | 507L24 |
|---|---|---|
| Operation Mode | Non-maintained | Maintained |
| Power Consumption | 2W | 4.5W |
| Lumen Output | 400Lm | 200Lm |
| LED Count | 50 pcs | 24 pcs |
| Battery | 7.4V 1.5Ah Li-ion | 7.4V 1Ah Li-ion |
Compliance & Features
Accessories
- Multi-directional sticker legend kit
- Certifications
- CERoHSIEC60598-2-22
