Laser Distance Meter with Angle Sensor
This laser distance meter accurately measures distances and includes an angle sensor for added functionality. It is available in models with a maximum range of 50m, 70m, or 100m.
Technical Specifications
Overview

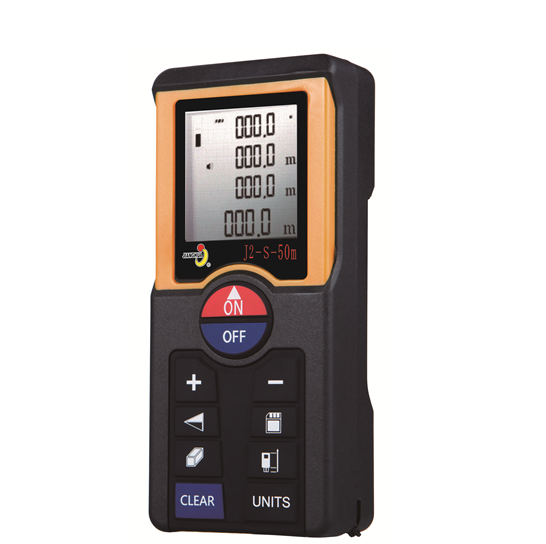

J2 Series Laser Distance Meter
The J2 series laser distance meter is a precision instrument designed for accurate and efficient distance measurements in both home renovation and industrial applications. Featuring an integrated angle sensor and a robust, ergonomic design, this tool offers multiple operation modes including area and volume calculations. With IP54-rated protection against water and dust, it is built to withstand demanding environments while providing reliable performance.
Key Features
- Key Features
- Built-in Angle SensorIP54 Waterproof & DustproofErgonomic DesignLarge Capacity StorageMultiple Operation ModesShock-proof Rubber Casing
Performance Metrics
Performance Metrics
1.5 mm
Measurement Accuracy
1 mm
Display Accuracy
1,000,000 cycles
Button Lifespan
Technical Specifications
Measurement Range by Model
| Model | Range |
|---|---|
| J2-40 | 0.05-40m |
| J2-60 | 0.05-60m |
| J2-80 | 0.05-80m |
Laser Specifications
- Laser Class: Class 2MII
- Wavelength: 620-690nm
- Output: <1mW
Power & Design
Power Supply
AAA7 BatteriesRechargeable Lithium Battery
Design Details
- Weight: 160g
- Material: Environmental protection material with double-injection rubber
- Display: Backlit (can be turned off)
- Audio: Voice broadcast (optional), sound can be turned off
- Mounting: Compatible with external bracket
