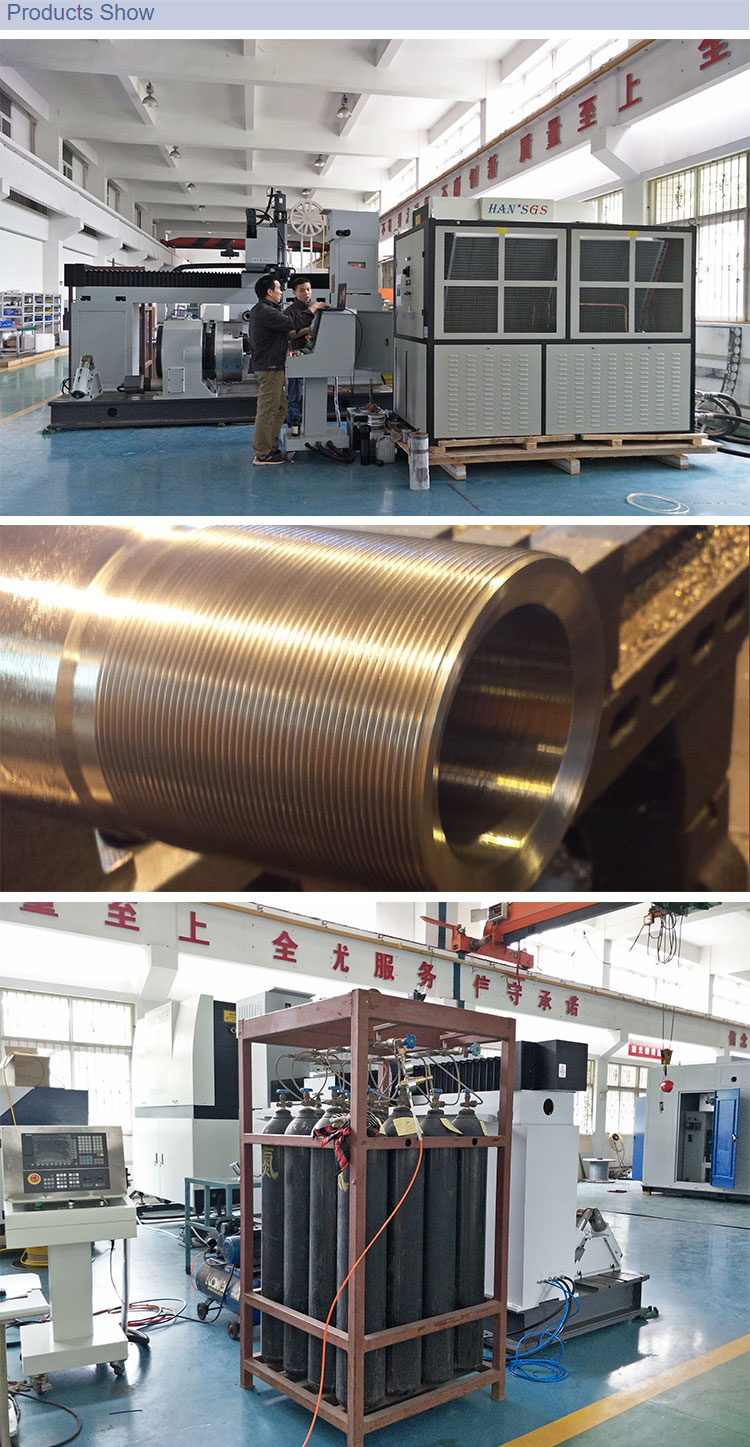

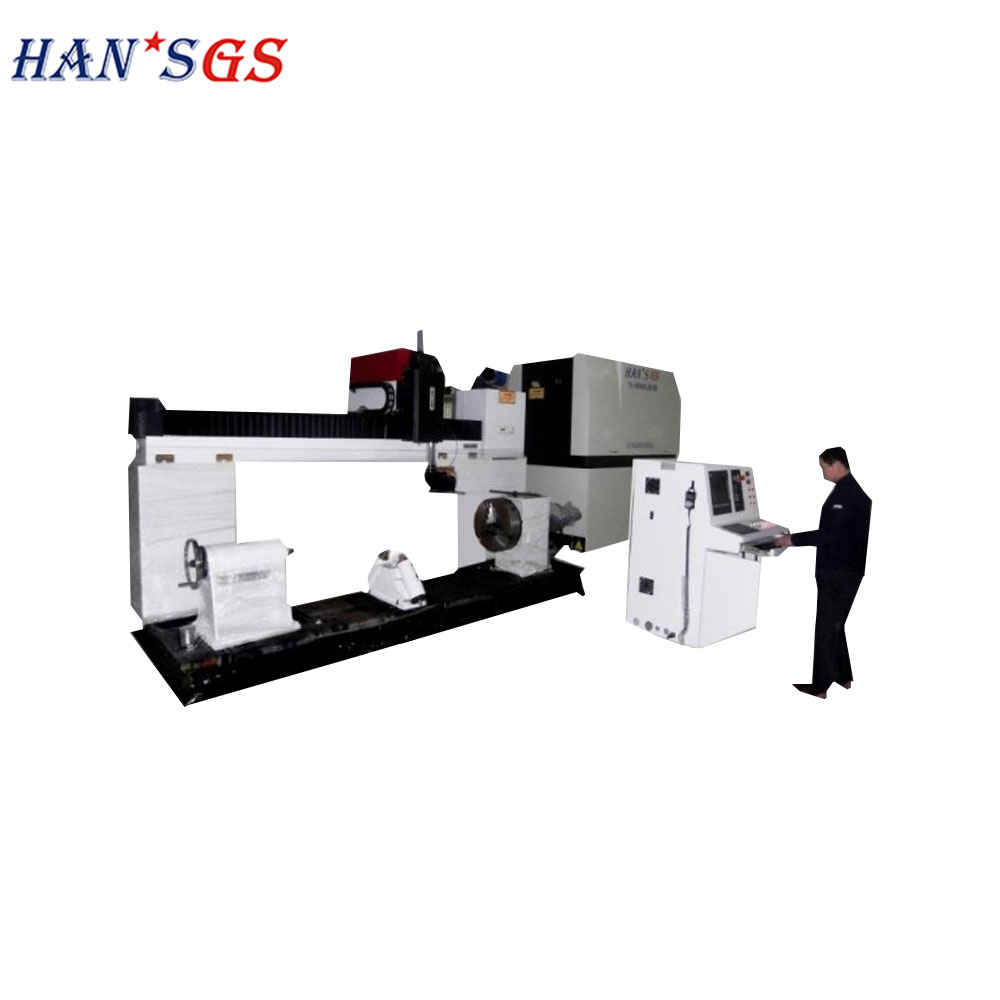

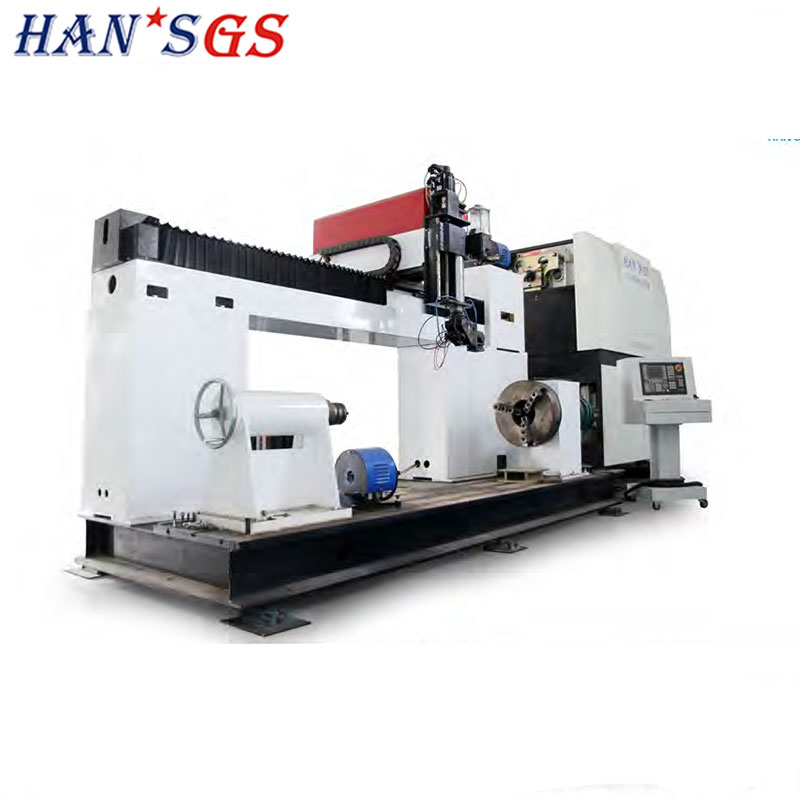

Laser Cladding System for Mining Machinery Repair
This laser cladding system is designed for repairing column-type parts in mining machinery. It utilizes laser technology to apply a coating material to the substrate, improving wear, corrosion, and heat resistance.
Technical Specifications
Overview
Advanced Laser Cladding for Industrial Repair
This complete set of laser cladding equipment is specifically designed for the surface modification and repair of column-type parts in mining machinery. By utilizing high-power laser irradiation, the system melts a thin layer of the substrate with additive materials to create a dense, metallurgical bond with extremely low dilution. This process significantly improves wear resistance, corrosion resistance, and heat resistance, providing a cost-effective alternative to replacing expensive components.
Technical Capabilities
Cladding Performance
30 mm
Max Single Layer Width
2 mm
Max Single Layer Thickness
Technology Features
- Precise control of composition and properties
- Dense microstructure with high bonding strength
- No substrate preheating required
- Environmentally friendly with no radiation
- High cladding efficiency and coating quality
System Configuration
Optical System Details
- Fly optical path
- Light path diameter: 70mm
- Manual type swing head
- Turning Angle: ±60° manual adjustment
- Integrating mirror for uniform light spot
- Laser Source
- High-power 10kW CO2 cross-flow laser / TFL-6K/10K
- Control System
- Siemens 802D CNC system with five-axis and four-linked processing
- Cooling System
- 80000 kcal
Machine Specifications
- Model
- GS-TFL-6K/10K
- System Components
- Laser SourceWater ChillerCNC Machine ToolAuto Powder Delivery MachineOptical Path SystemCNC Control System
Applications
Target Components
Hydraulic CylindersPiston RodsDrill PipesColumn-type Parts
- Surface Improvements
- Wear ResistanceCorrosion ResistanceHeat ResistanceOxidation ResistanceElectrical Characteristics
