Technical Specifications
Overview

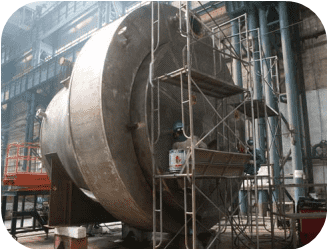

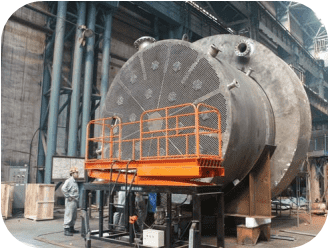

Industrial Petrochemical Reactor
This large-scale polyurethane reactor is engineered specifically for demanding petrochemical processing and refinery environments. Constructed from high-grade 316L stainless steel, it offers exceptional corrosion resistance and durability for complex chemical reactions. The unit is designed to handle significant thermal and pressure loads, ensuring reliable performance in large-scale polyurethane production.
Technical Specifications
- Material Grade
- 00Cr17Ni14Mo2 (316L Stainless Steel)
- Design Pressure
- 0.6 Mpa
- Temperature Range
- -10 to 350°C
Dimensions & Weight
- Vessel Dimensions
- φ4140 x 12400 x 30 mm
- Heat Exchange Tube Spec
- φ30 x 2.6 mm
- Total Weight
- 132 T
Performance Metrics
Operational Metrics
0.6 Mpa
Design Pressure
132 T
Total Weight
