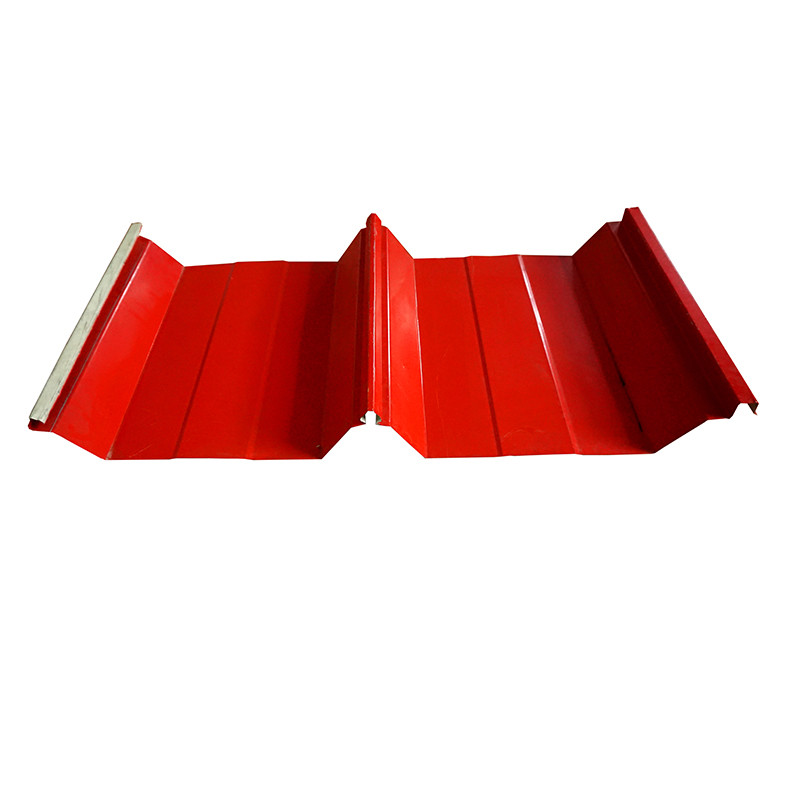

Join-Hidden Steel Roof Panel Forming Machine
This steel roof panel forming machine creates panels with a unique join-hidden design for large-span roofs. The machine forms durable and aesthetically pleasing roofing solutions for various industrial and commercial applications.
Technical Specifications
Overview
High-Efficiency Roof Panel Production
This automated roll forming machine is engineered for the precise manufacturing of joint-hidden steel roof panels, ideal for large-span industrial and commercial roofing projects. The system integrates manual decoiling, roll forming, and post-cutting processes to deliver consistent, high-quality panels. Designed for durability and ease of operation, it provides a robust solution for creating weather-resistant, aesthetically pleasing roofing systems with concealed joints.
Technical Specifications
- Production Speed
- 10 m/min
- Roller Stands
- 17 rows
- Main Power
- 3 kW
- Hydraulic Pump Power
- 3 kW
- Machine Side Panel Thickness
- 14 mm
- Main Frame
- 350H Steel
Electrical & Control
- Power Supply
- 380V/50Hz/3phases
- Control System
- PLC Control
Materials & Components
- Suitable Material
- Color Steel Plate
- Roller Material
- Carbon Steel 45#
- Blade Material
- Cr12 with quenched treatment (60-62℃)
Included Components
Included Units
- Manual decoiler
- Main roll forming machine
- Post-cut system
- Hydraulic system
- PLC control system
- Stacking unit
