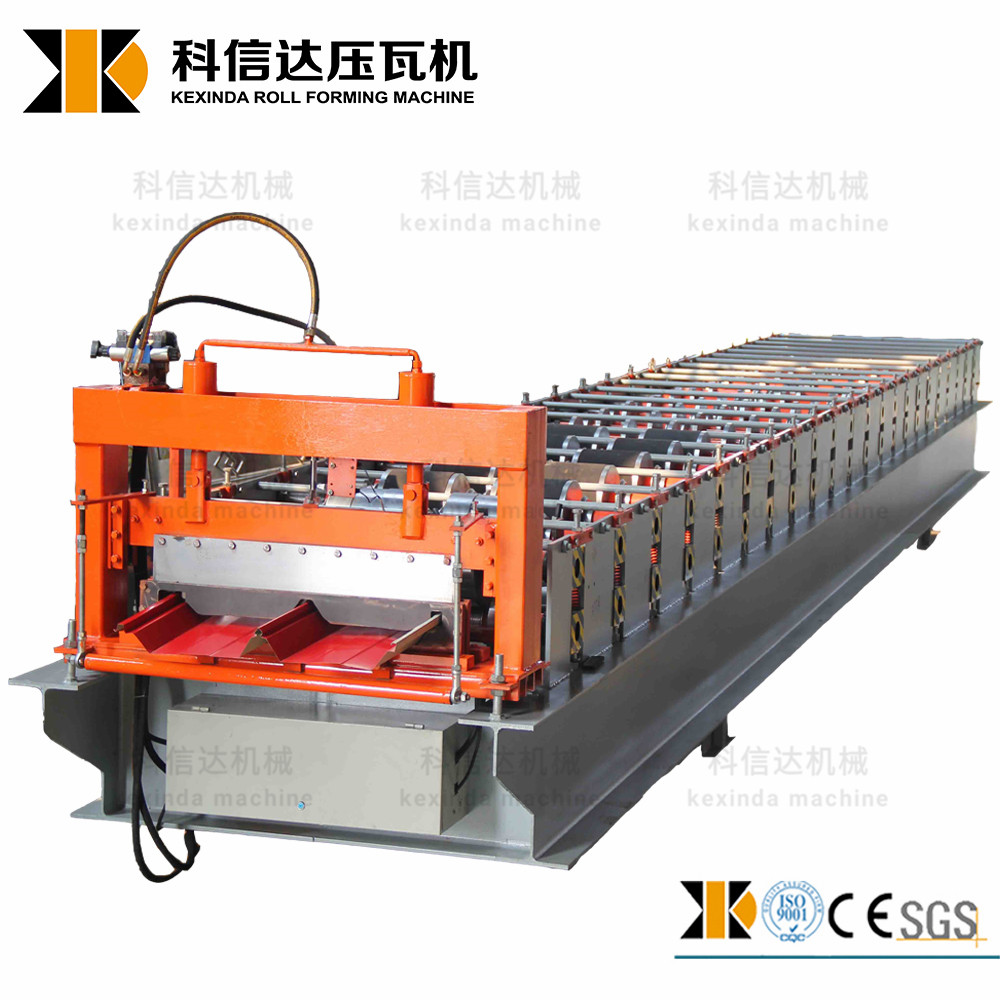

Join-Hidden Panel Roll Forming Machine
This roll forming machine produces panels with concealed joints for roofing and wall cladding. The machine features a robust construction and an integrated cutting system for precise panel length control.
Technical Specifications
Overview
High-Efficiency Join-Hidden Panel Production

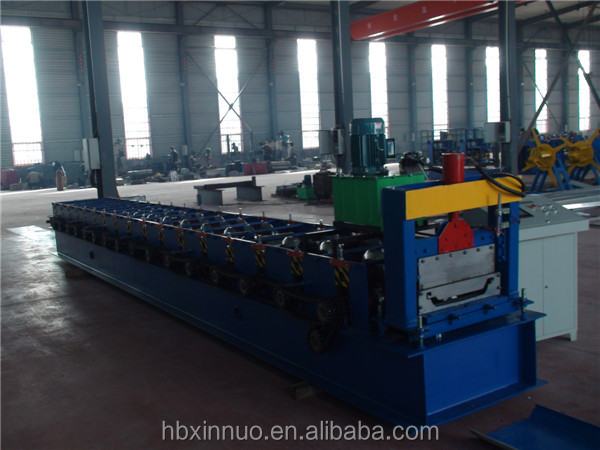

This automatic roll forming machine is engineered for the precise and efficient manufacture of join-hidden panels, commonly used in modern roofing and architectural wall cladding. Featuring a robust steel frame and a multi-station roller system, the machine ensures consistent dimensional accuracy and high-quality output. The system includes an integrated hydraulic cutting mechanism and advanced PLC controls, making it an ideal solution for high-volume production environments requiring reliable, seamless panel joining.
Technical Specifications
Production Speed
8 m/min
Min Speed
12 m/min
Max Speed
Power Requirements
- Voltage: 380V
- Frequency: 50Hz
- Phases: 3-Phase
- Main Motor Power: 3kW
- Hydraulic Pump Power: 3kW
Construction Details
| Component | Specification |
|---|---|
| Roller Stands | 17 rows |
| Side Panel Thickness | 14mm |

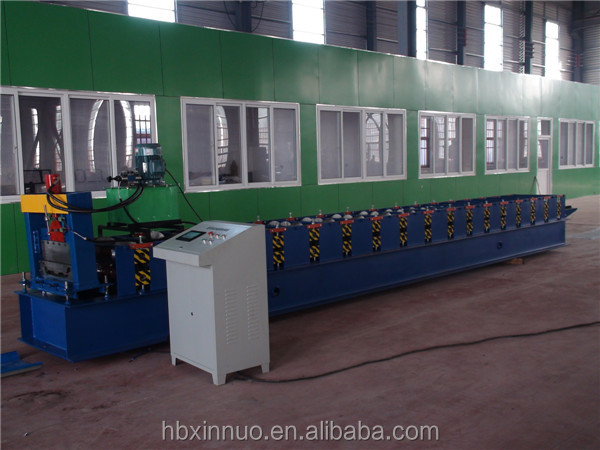

| Main Frame | 350H Steel |
| Roller Material | Carbon Steel 45# |
| Blade Material | Cr12 (Quenched 60-62°C) |
Machine Construction
- Included Components

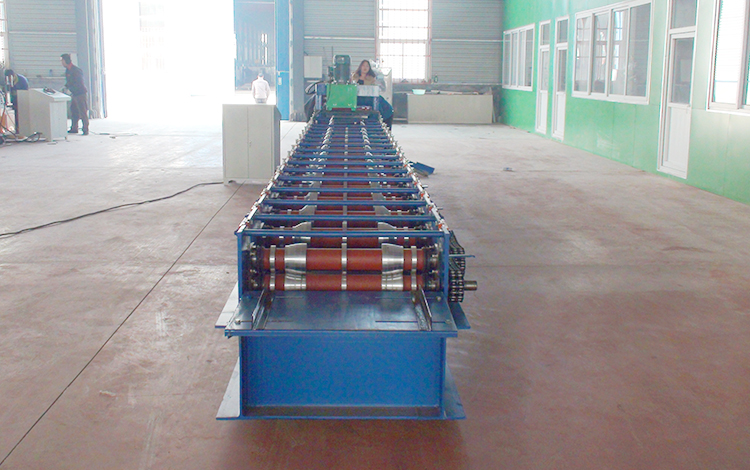

- Manual DecoilerMain Forming MachinePost Cut SystemHydraulic SystemPLC Control UnitStacking System
Control System
- Control System

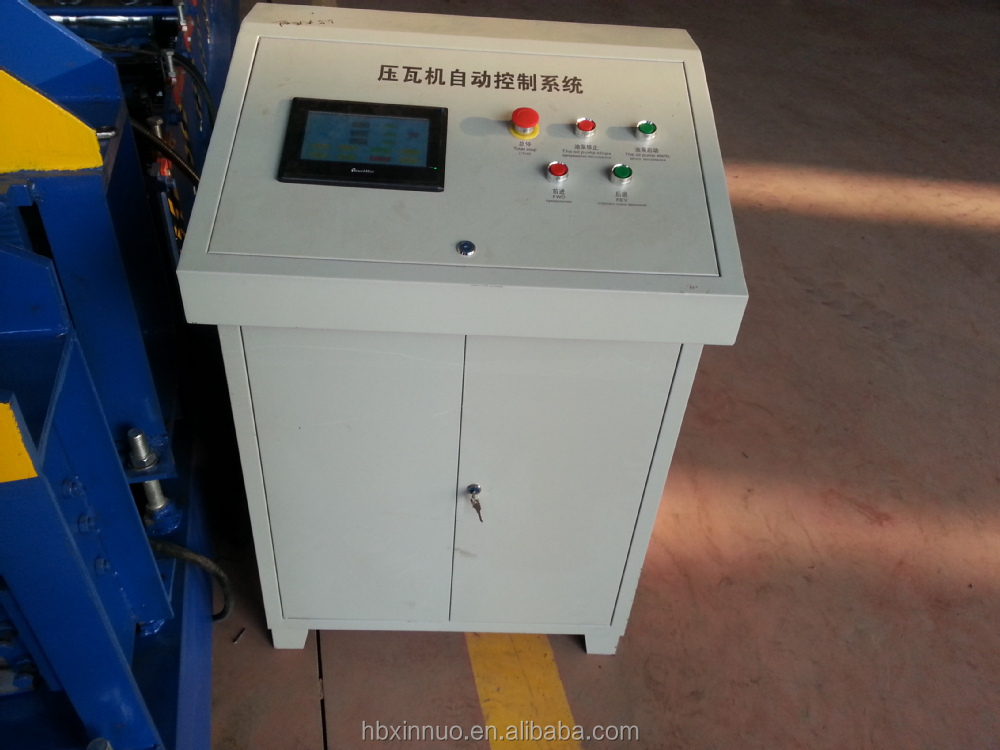

- PLC Control (Compatible with Mitsubishi/Delta/Others)
