Jaw Stone Crusher for Mining
This jaw crusher is widely used in the mining industry for crushing stones. It features a simple structure, stable performance, easy maintenance, and a high crushing ratio.
Technical Specifications
Product Overview
High-Efficiency Jaw Crusher

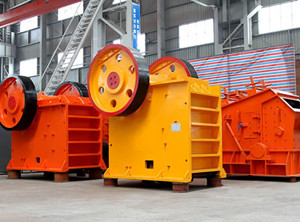

The PE Jaw Stone Crusher is a robust solution widely utilized in the mining, quarrying, and construction industries for primary material reduction. Engineered for reliability, it features a heavy-duty frame, high-manganese steel components, and a symmetrical V-shaped crushing chamber to ensure consistent, high-ratio crushing performance. Designed for ease of maintenance and operational safety, this crusher is suitable for processing hard and abrasive materials like granite, basalt, and river stone.
Key Features
Key Advantages
- High crushing ratio
- Stable and reliable performance
- Simple, durable structure
- Easy maintenance procedures
- Advanced wedge-style discharge adjustment
Design & Construction
- Construction Highlights
- Cast Steel Bearing PedestalForged Eccentric ShaftSymmetrical V-Shaped ChamberHigh-End Manufacturing MaterialsFinite Element Analysis Design
Operational Process
Working Principle
| Phase | Action |
|---|---|
| Upward Stroke | Angle between jaws increases, pushing the movable jaw toward the fixed jaw to extrude and crush material. |
| Downward Stroke | Angle decreases, allowing the movable jaw to retract and discharge crushed material from the outlet. |
Maintenance & Adjustment
Adjustment Capabilities
Wedge Discharging AdjustmentQuick SetupEnhanced SafetySimplified Maintenance
