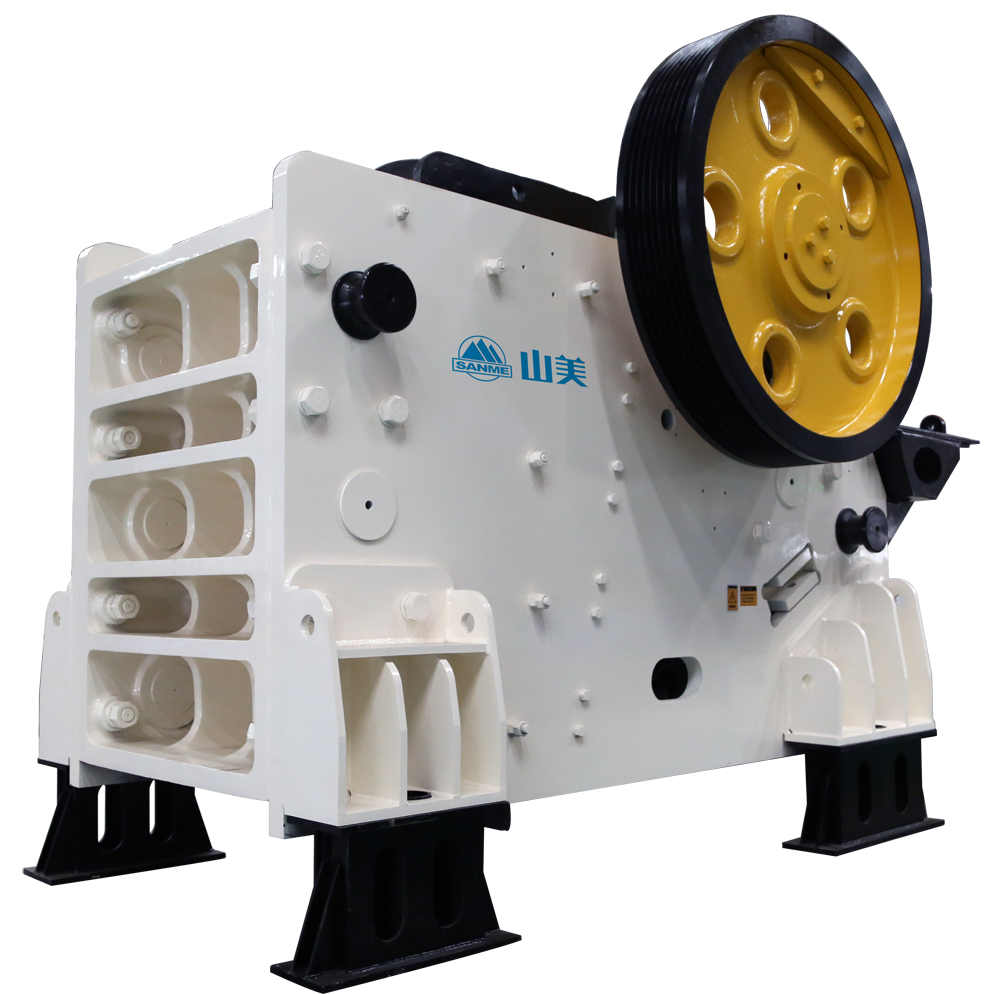

Jaw Crusher (JC Series)
The JC Series Jaw Crusher is designed with enhanced details for optimal performance compared to traditional models. High-strength materials and advanced technology contribute to a stronger structure and higher productivity.
Technical Specifications
Product Overview
JC Series Jaw Crusher Overview
The JC Series Jaw Crusher is a robust primary crushing solution designed for demanding mining, quarrying, and aggregate production environments. Featuring an optimized symmetrical V-shaped cavity and heavy-duty components like forged eccentric shafts, it delivers high productivity and consistent output. The design prioritizes ease of maintenance, operational stability, and flexible installation, making it suitable for a wide range of hard rock and ore processing applications.
Structural Design
Frame Construction
- Welded model for small and middle sizes (low stress, high impact resistance)
- Assembled model for large sizes (modular, non-welded, high fatigue strength)
- Vibration Control
- Yes
Crushing Mechanism
- Cavity Design
- Symmetrical V-formed design
- Discharge Adjustment
- MechanicalHydraulic
Maintenance & Reliability
- Lubrication System
- Centralized system with labyrinth seals
- Bearing Housing
- One-piece cast bearing seat
Installation
- Motor Integration
- Integrative chassis with adjustable Vee-belt tensioning
