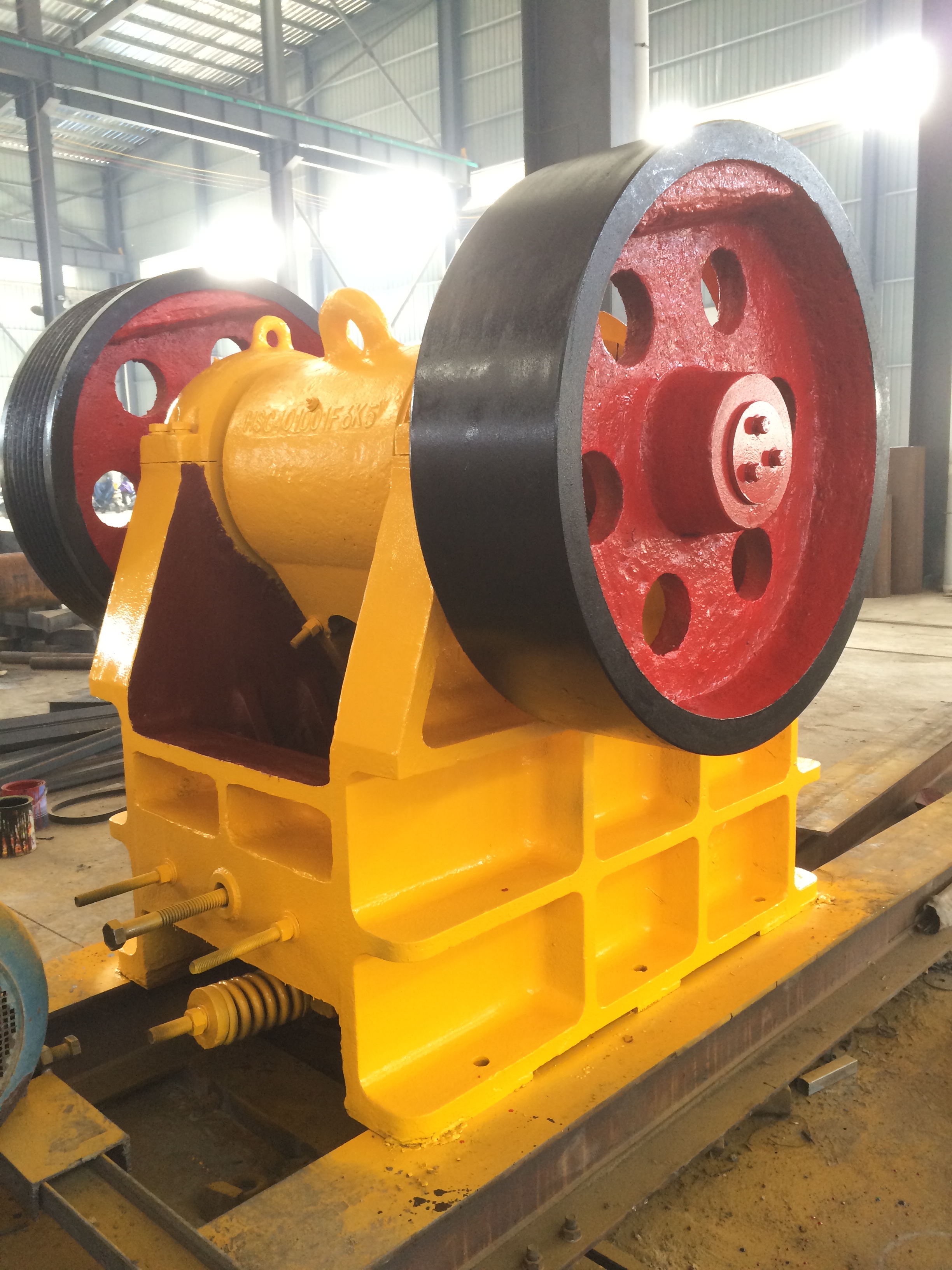

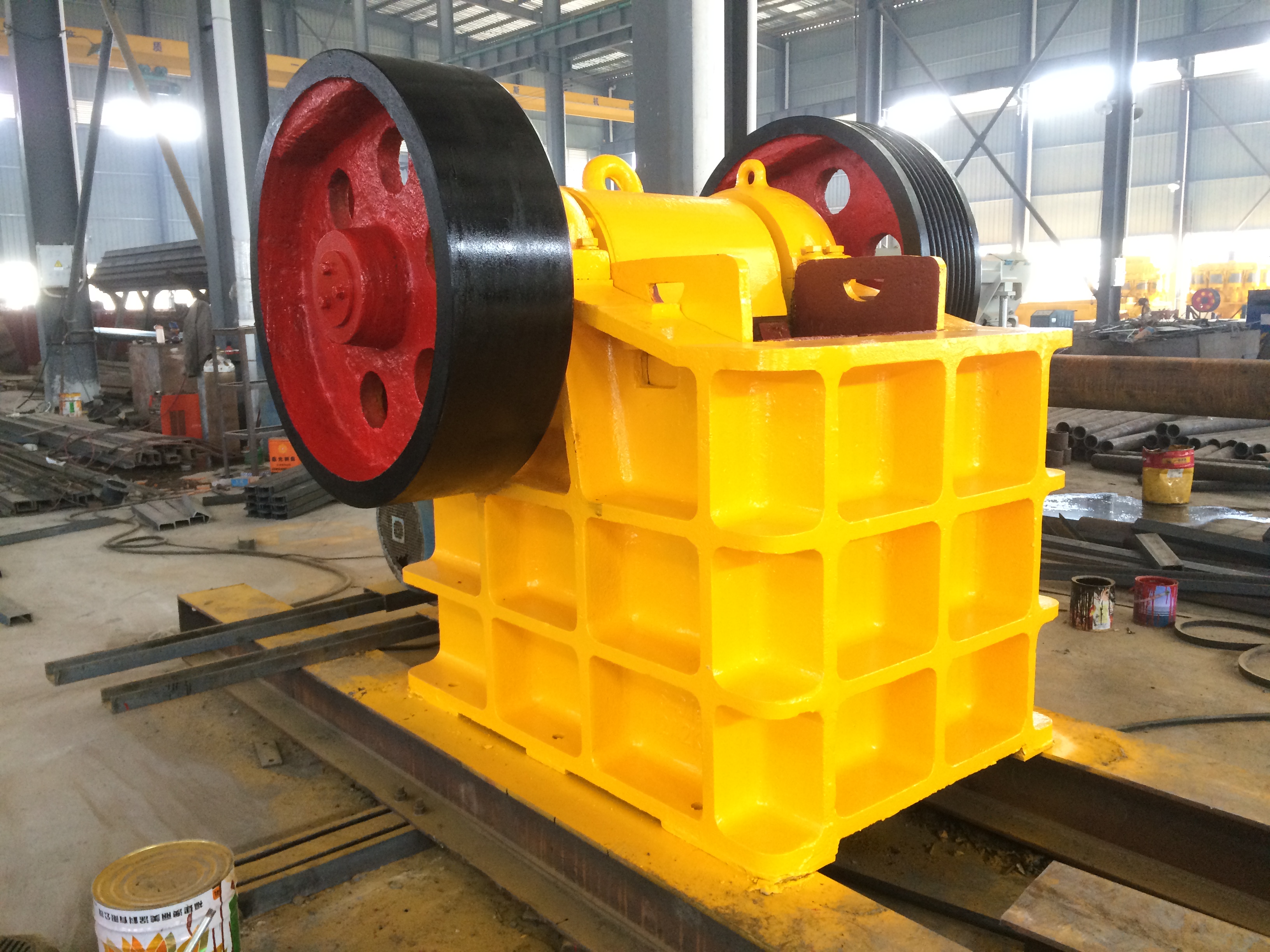

Jaw Crusher for Primary Crushing
This jaw crusher is designed as a primary crushing unit for stone and ore production lines. The swing jaw is activated by an eccentric main shaft, creating a crushing action against the fixed jaw.
Technical Specifications
Product Overview
PE Series Jaw Crusher
The PE Series Jaw Crusher is a high-performance primary crushing unit designed for medium to hard rock applications in mining, quarrying, and aggregate production. It utilizes a reliable single toggle roller bearing mechanism, where an eccentric main shaft activates the swing jaw to compress and crush materials against a fixed jaw. Built for durability and stability, this machine features heavy-duty components and simplified maintenance procedures to ensure high throughput and reduced downtime in demanding industrial environments.
Technical Specifications
- Crushing Mechanism
- Single toggle roller bearing
- Suitable Industries
- MiningQuarryingMetallurgyConstructionChemical Industry
Design & Build
Key Components
- High-quality casting steel moveable jaw assembly
- Forged steel eccentric shaft with heat treatment
- Durable eccentric shaft bearings
Maintenance Advantages
Simplified structureEasy operationReduced downtimeHigh bearing capacity
Operational Details
- Discharge Setting Adjustment
- Mechanical shim adjustment
