Irrigation Pipe Dropper Insertion Machine

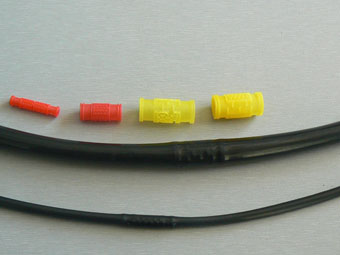

This high-speed machine automates the insertion of cylinder droppers into irrigation pipes. It ensures precise placement and consistent performance for large-scale irrigation system production.
Technical Specifications
Product Overview
High-Efficiency Irrigation Pipe Production
The YD30-H is a high-speed irrigation pipe dropper insertion machine engineered for large-scale agricultural manufacturing. It integrates precise material feeding, automated dropper positioning, and high-speed punching to ensure consistent water distribution performance. Built for industrial reliability, this system accommodates a wide range of pipe diameters and dropper spacings to meet diverse irrigation requirements.
Key Performance Metrics
Operational Performance
100 m/min
Production Speed
900 pcs/min
Dropper Supply Speed
180 kg/h
Max Output
130 kW
Total Power
Technical Specifications
Pipe Dimensions
- Diameter: Φ6, Φ12, Φ16, Φ20 mm
- Thickness: 0.3-1.2 mm
Mechanical Configuration
| Feature | Specification |
|---|---|
| Extruder Diameter | Φ90 mm |
| Screw Timing | Frequency Control |
| Net Change | Hydraulic Auto |
| Tow Type | Crawling Traction |
| Winding | Double Center Coil Change Auto |
- Production Capabilities

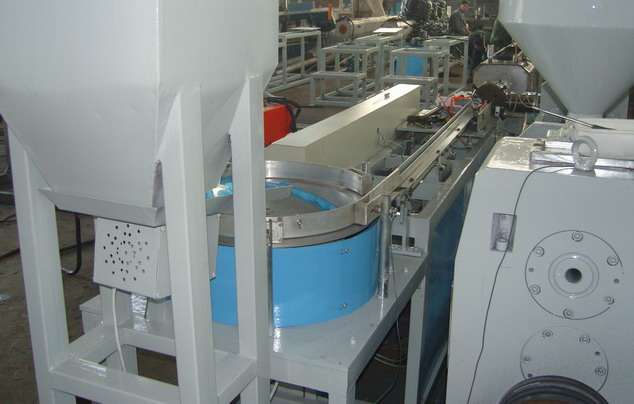

- Adjustable dropper spacingSpecial design punching systemIntegrated assembly stationVibratory bowl feeder
