Irregular Tooth Diamond Cup Wheel for Concrete Grinding
Diamond cup wheel is engineered for grinding concrete, stone, and masonry. Irregular tooth segments provide aggressive material removal and a sharp cutting action.
Technical Specifications
Product Overview
High-Performance Grinding Solution

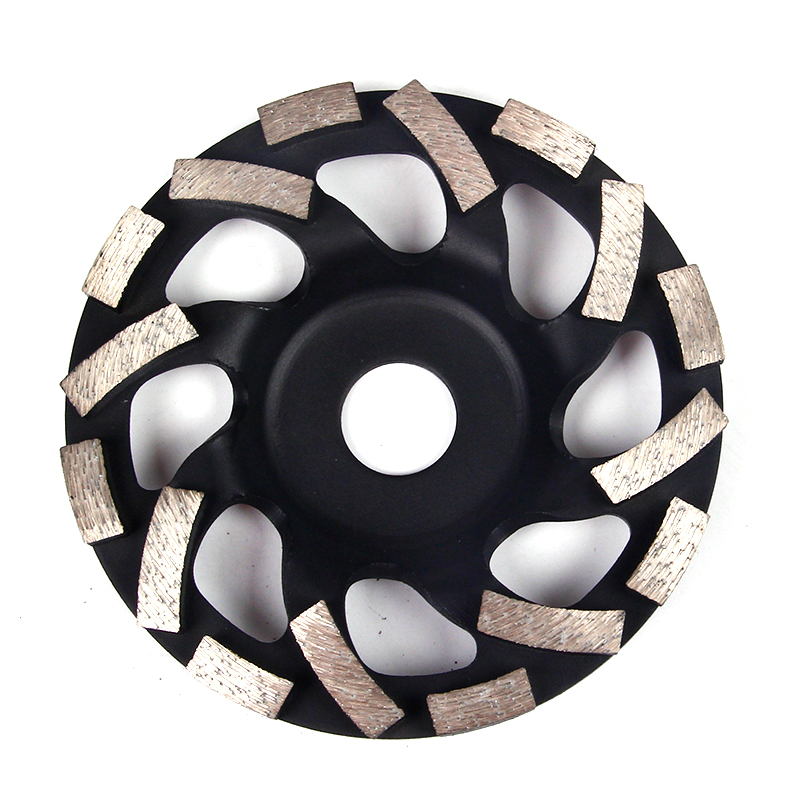

This 5-inch diamond cup wheel features an irregular tooth design engineered for efficient material removal and precise surface finishing. Constructed with a durable A3 steel body and high-concentration diamond segments, it provides reliable performance for heavy-duty grinding tasks. The integrated air hole design ensures stable operation by maintaining a cool cutting pattern, reducing wear, and facilitating dust removal during use.
Technical Specifications
- Outside Diameter
- 125 mm
- Arbor Hole
- 7/8 inch
- Body Thickness
- 3 mm
- Segment Thickness
- 5-6.5mm
Materials & Construction
- Body Material
- A3 Steel
- Segment Material
- Diamond and metal powders
Performance Features
Key Features
- Irregular tooth sharp design
- High diamond concentration
- Double row segment design
- Air holes for cooling
- Long life type
Performance Highlights
2 rows
Segment Rows
- Suitable Materials
- MarbleTileConcreteRockMasonry
