Technical Specifications
Overview
Professional Inverter Welding Solution

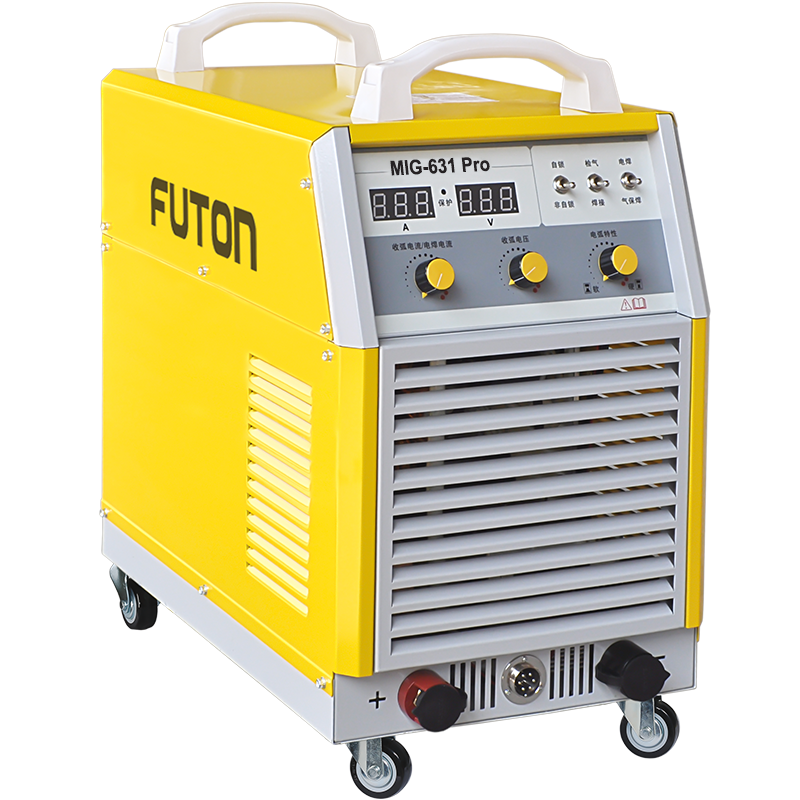

This advanced inverter welding machine utilizes IGBT technology to deliver high working frequency, efficiency, and energy savings. Designed for versatility, it supports MIG/CO2/MMA welding processes within a single unit. With a robust tri-proof design and dual driving wire feeder, this machine ensures reliable performance even in challenging industrial environments.
Technical Specifications
Wire Feeder Performance
1.5 m/min
Min Feed Speed
15 m/min
Max Feed Speed
Supported Wire Diameters
- 1
- 1.2
- 1.6
- Supported Processes
- MIGMAGMMACO2
Performance & Safety
Duty Cycle Performance
| Current | Duty Cycle |
|---|---|
| 400 | 100% |
| 500 | 60% |
Protection Grade
IP2X
- Safety Features
- Under-voltage protectionOver-voltage protectionOver-current protectionTri-proof design
- Rated Input Voltage
- 18.3 V DC
- Rated Input Current
- 3.5 A
Operational Features
- Working Modes
- 2T4T
- Welding Cable Cross-section
- 70 mm²
