Technical Specifications
Overview

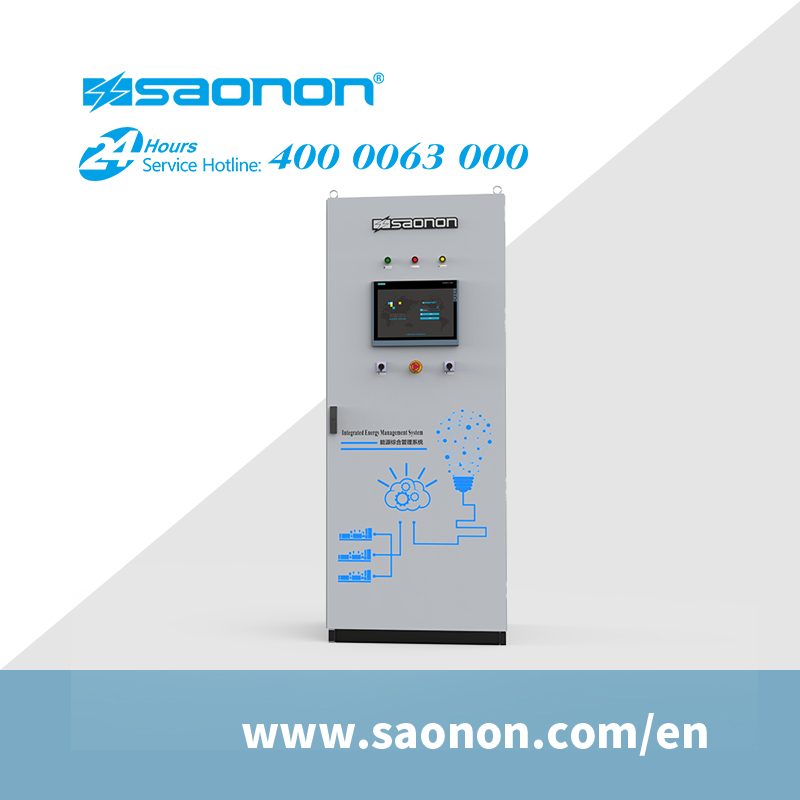

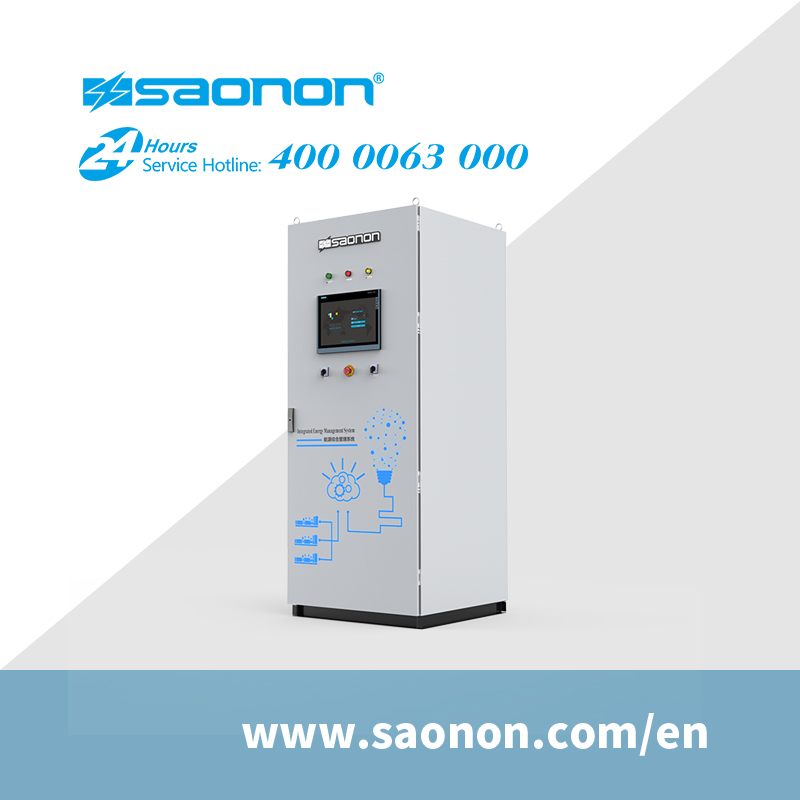

Integrated Energy Management System
This comprehensive system is designed for the efficient management, measurement, and data collection of entire energy infrastructures. It provides real-time monitoring of equipment status, operational parameters, and alarm conditions to optimize energy efficiency. The system features an integrated automatic refueling monitor and supports seamless compatibility with cloud, SCADA, and mobile monitoring platforms.
Technical Specifications
- Model
- SM-TP1500
- Power Supply
- DC 24V
- Communication Interfaces
- RS232RS485PROFINET
Performance Metrics
CPU Performance
250 KB
Instruction Memory
1 MB
Program Data
48 ns
Bit Instruction Execution Time
I/O Configuration
Input/Output Configuration
| Type | Specification |
|---|---|
| Digital Input | 16 x DC 24V |
| Digital Output | 16 x DC 24V / 0.5A |
| Analog Input | 4 x U/I, 1 x RTD |
| Analog Output | 2 x U/I, 16-bit |
Physical Dimensions
Physical Characteristics
- Dimensions: 800 x 600 x 2000 mm
- Weight: 200 kg
- Protection Level: Level 4
