Integral Drill Rods with Chisel Bit
Integral drill rods are designed for small hole drilling and underground mining using handheld drill machines. They improve drilling speed and efficiency while reducing impact energy expenses.
Technical Specifications
Overview

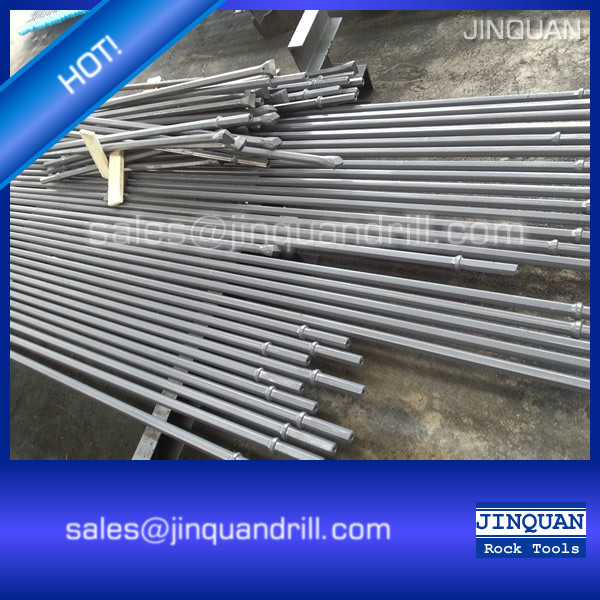

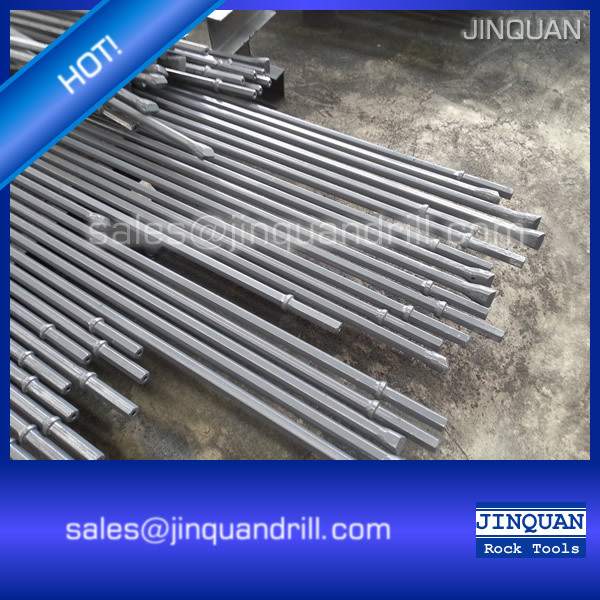

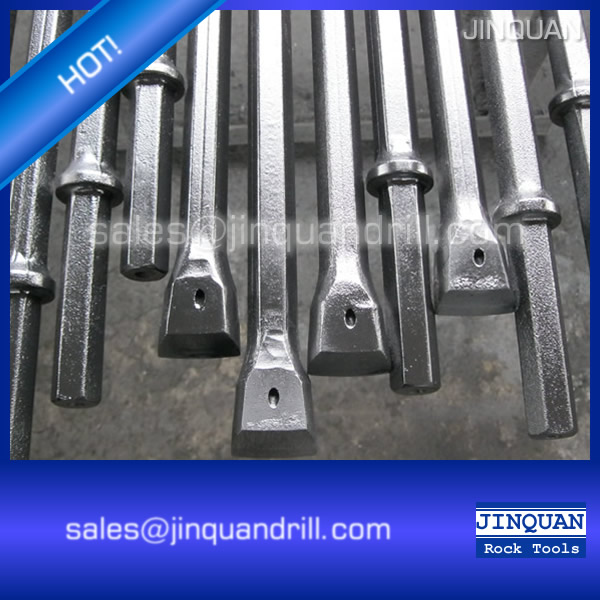

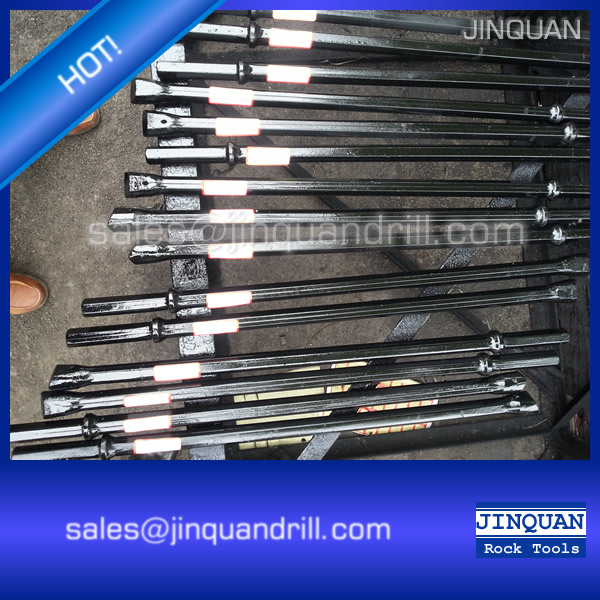

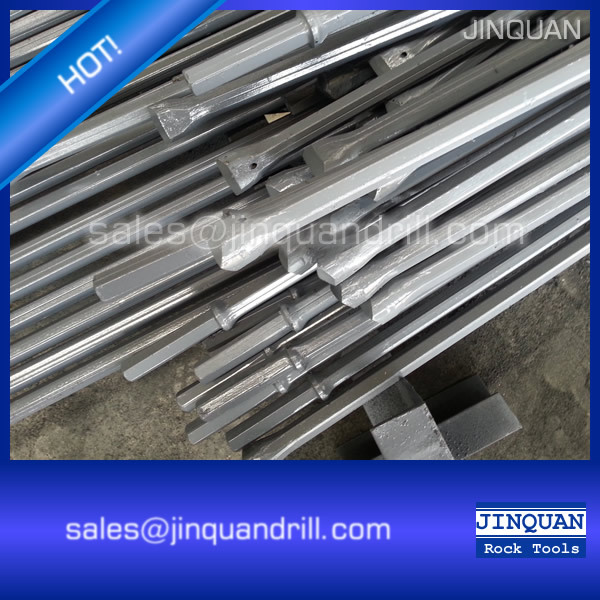

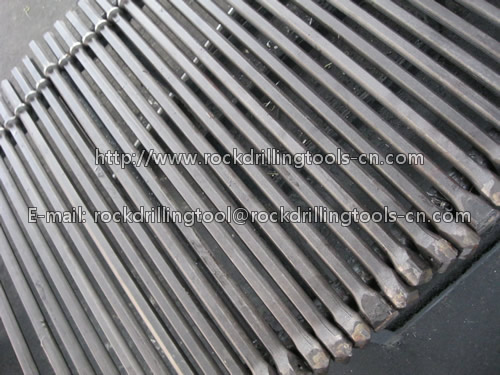

Integral Drill Rods with Chisel Bit
Integral drill rods are specialized, one-piece drilling tools designed for hand-held rock drill machines. These rods integrate the drill bit directly onto the steel rod, ensuring efficient energy transmission from the machine to the rock face. They are engineered for small hole drilling in mining, quarrying, and construction environments, offering excellent durability and impact resistance.
Technical Specifications
Material Composition
- High-quality alloy steel
- Superior tungsten carbide
- Shank Types
- H22*108mmH19*108mmStandard Hex
- Bit Diameter Range
- 20mm - 42mm
- Available Lengths
- 400mm - 6000mm
Performance & Features
Key Features
One-piece constructionHeat-treated for wear resistanceEfficient energy transmissionReduced impact energy loss
Applications
Common Applications
- Underground mining
- Granite and marble quarrying
- Gold mining
- Railway construction
- Tunneling
- Small hole drilling
Logistics
- Minimum Order Quantity
- No requirement for testing and trial orders
