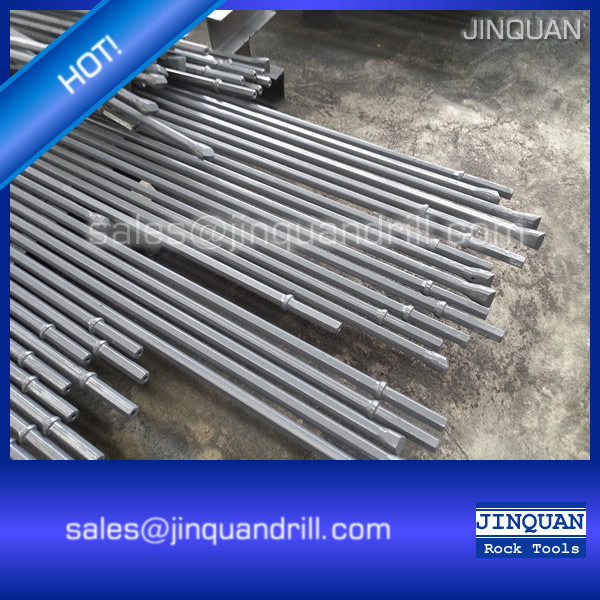

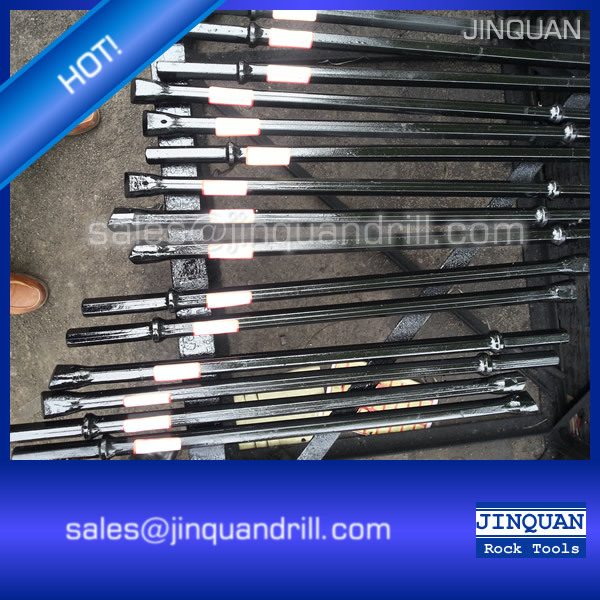

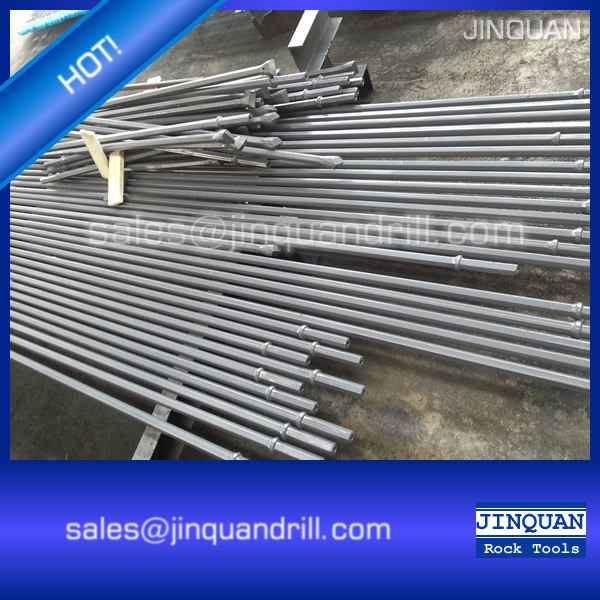

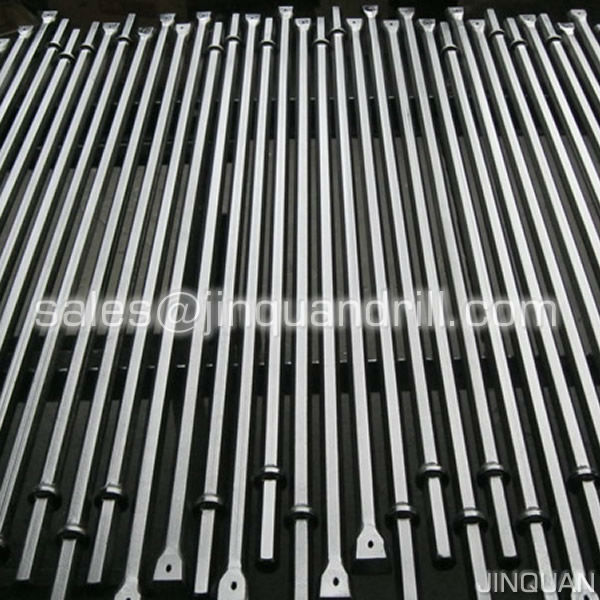

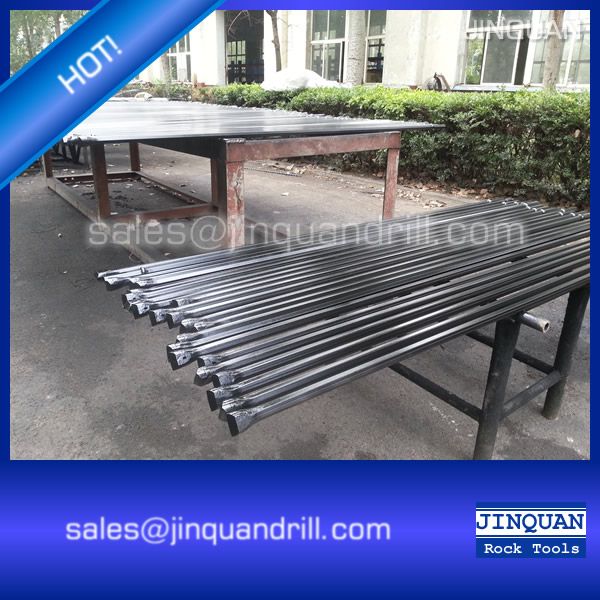

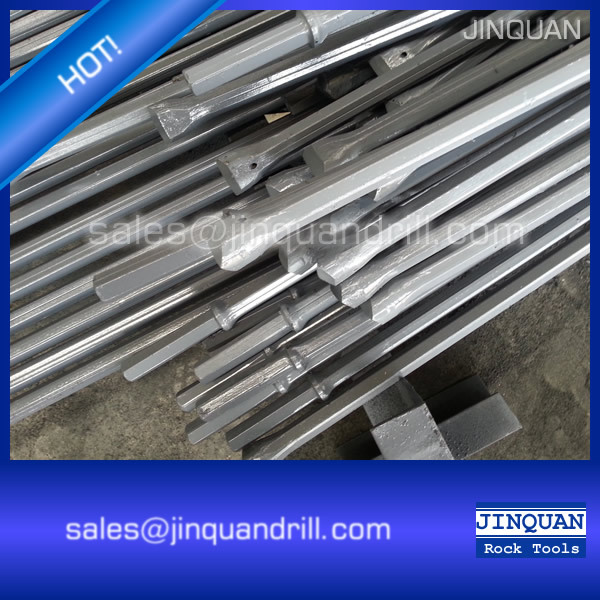

Integral Drill Rod with Chisel Bit
This integral drill rod is designed for handheld drilling machines in underground mining. It is equipped with small power rock drills for drilling small holes.
Technical Specifications
Overview
High-Efficiency Integral Drill Steels
These integral drill rods are engineered for underground mining and small hole drilling applications using hand-held or air-leg rock drills. By integrating the chisel bit directly into the rod, the design reduces impact energy loss and significantly improves drilling speed and efficiency. Manufactured with high-quality steel and superior tungsten carbide, they ensure a long service life even in demanding rock formations.
Technical Specifications
Shank Dimensions
- H22 x 108mm
- H19 x 108mm
- Standard Hexagonal
Key Performance Metrics
20 mm
Min Bit Diameter
42 mm
Max Bit Diameter
6,000 mm
Max Length
- Available Lengths
- 400mm to 6000mm
Materials & Construction
- Materials
- High Quality SteelSuperior Tungsten Carbide
- Manufacturing Process
- Stable and mature welding technology for rod integrity
Applications
Primary Applications
- Underground Mining
- Granite and Marble Quarrying
- Gold Mining
- Railway Construction
- Tunneling
- Small Hole Drilling
- Compatible Equipment
- Air Leg Rock DrillsHand Held Rock DrillsSmall Power Rock Drills
Commercial Info
- Minimum Order Quantity
- No requirement for testing and trial orders
