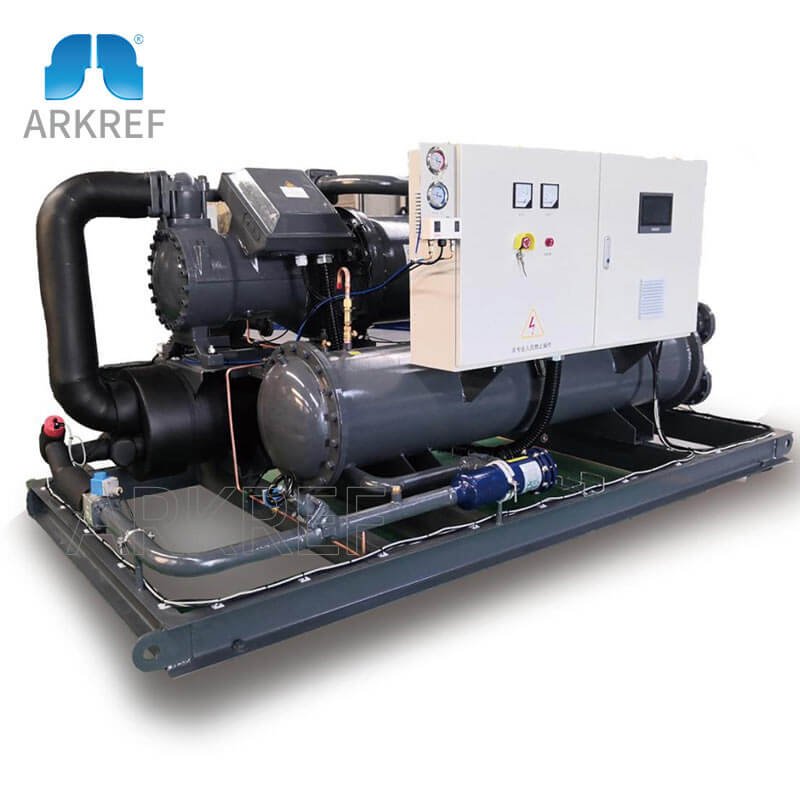

Industrial Water Chiller Unit
This industrial water chiller unit provides cooling for pharmaceutical, chemical, and food processing applications. It features a semi-hermetic compressor and a water-cooled condenser for efficient and reliable operation.
Technical Specifications
Overview
Industrial Water Chiller Unit

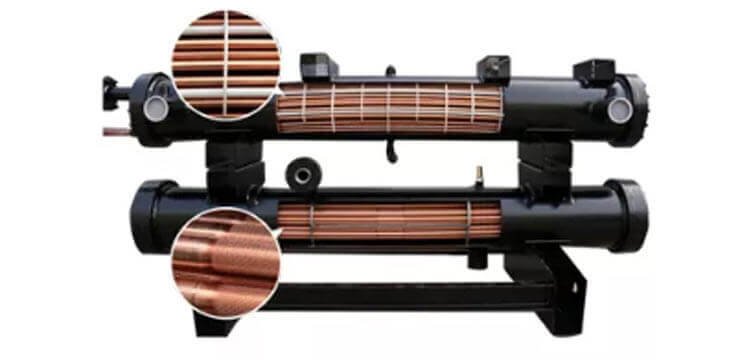

This industrial-grade water chiller series is engineered for high-performance cooling across diverse sectors including pharmaceutical, chemical, food processing, and industrial manufacturing. Designed for both medium and low-temperature applications, it features robust semi-hermetic compressor technology and advanced PLC-based automation. Each unit is built with high-precision shell and tube heat exchangers to ensure reliable, energy-efficient operation under demanding conditions.
Technical Specifications
Operating Temperature Ranges
| Series | Inlet (°C) | Outlet (°C) |
|---|---|---|
| Double Stage | -50 ~ -35 | -55 ~ -40 |
| Low Temp | -35 ~ -10 | -40 ~ -15 |
| High Temp | -15 ~ 12 | -20 ~ 7 |
- Supported Refrigerants
- R22R507AR404AR134AR448AR449A
- Energy Regulation
- Stageless continuous adjustment (25%-100% load)
Construction & Components
Standard Condenser
Water-cooled
- Core Materials
- Carbon SteelCopper Pipe
Featured Metrics
Capacity Metrics
226 KW
Condenser Heat Exchange
320 KW
Evaporator Heat Exchange
