Industrial Steam Generator for Petrochemical Applications
This industrial steam generator is designed for petrochemical engineering applications within petroleum refinery chemical engineering projects. It features integrated heat exchange elements for efficient steam generation in demanding industrial environments.
Technical Specifications
Overview
Industrial Steam Generator Overview

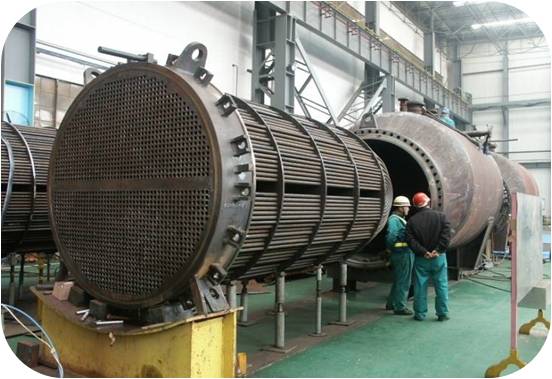

This industrial-grade steam generator is engineered for high-performance requirements in petrochemical and petroleum refinery environments. Featuring a robust shell and tube heat exchanger design, it provides efficient steam production through a durable, corrosion-resistant steel construction. Its engineered pressure vessel architecture ensures reliability and safety in demanding high-pressure and high-temperature industrial processes.
Technical Specifications
Design Pressure
2.5 Mpa
Tube Side
0.7 Mpa
Shell Side
Design Temperature
-10 ℃
Tube Side
300 ℃
Shell Side
- Material Composition
- 15CrMoR (Tube Side)16MnR (Shell Side)
- Standard Dimensions
- Ф2000mm x 6768mm x 34mm
- Total Weight
- 37 T
- Heat Exchange Tube Specs
- Φ32mm x 2.0mm
