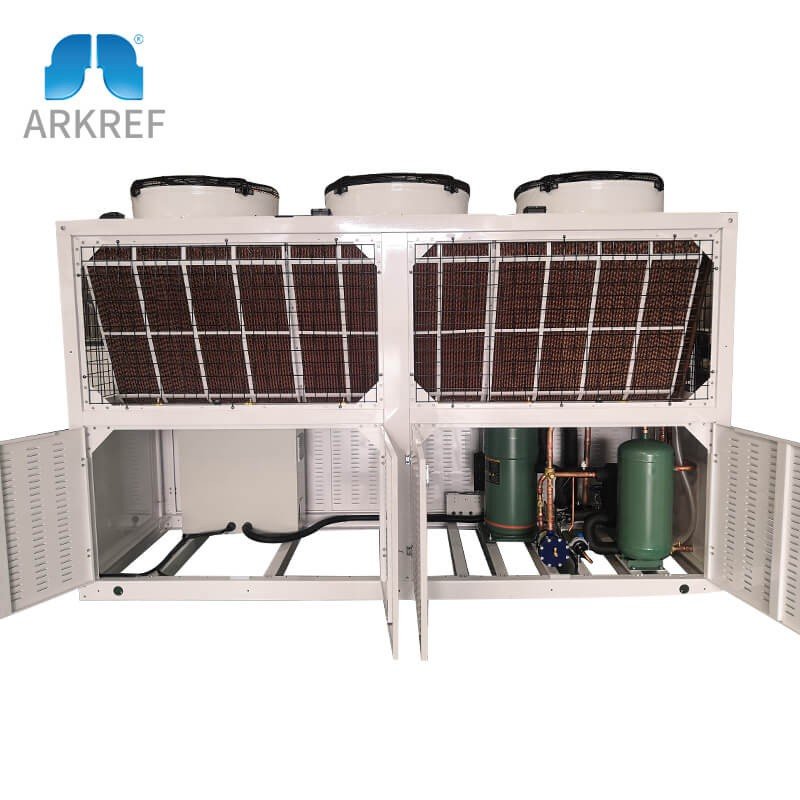

Industrial Scroll Compressor Unit
This industrial scroll compressor unit is designed for refrigeration applications, compatible with R22, R507A, R404A, and R134A refrigerants. It is suitable for use in small cold rooms, providing customized refrigeration capacity.
Technical Specifications
Product Overview
Industrial Scroll Compressor Unit
This industrial scroll compressor unit is engineered for reliable and efficient cooling performance in small cold room applications. It features robust construction with high-performance scroll compression technology and advanced heat dissipation systems. The unit is designed for versatile use across various global electrical standards, offering precise temperature control for demanding industrial environments.
Technical Specifications
Featured Performance
146.6 kW
Cooling Capacity
48.3 m³/h
Displacement
2,900 RPM
Speed
Operating Pressure Limits
| Side | Max Pressure |
|---|---|
| High Side | 45.0 Bar |
| Low Side | 31.0 Bar |
Electrical Ratings
- Nominal Voltage: 380V
- Frequency: 50Hz
- Locked Rotor Amperage (LRA): 346
- Max Operating Amperage: 60.4
- Phase: 3Ph
Compatibility & Environment
Ingress Protection Rating
IP54
- Refrigerants
- R22R507AR404AR134A
- Evaporation Temperature Range
- -40 to +10 °C
Physical Properties
- Net Weight
- 974 kg
