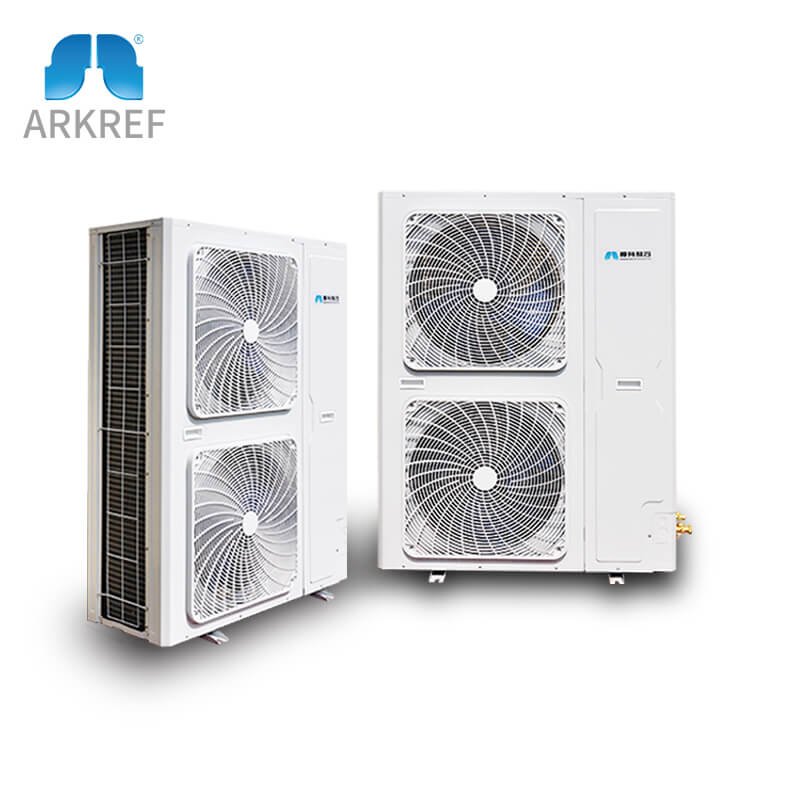

Industrial Refrigeration Condensing Unit
This condensing unit is designed for industrial refrigeration applications. It features a Highly Rotor inverter compressor and supports multiple refrigerants including R407C, R134A, R507, R449A, and R404A.
Technical Specifications
Overview
High-Efficiency Industrial Condensing Unit
The S8 industrial condensing unit is engineered for high-performance refrigeration in demanding environments. Featuring an advanced variable frequency rotor compressor, the unit provides stepless energy adjustment from 15hz-120hz, ensuring superior energy efficiency. With its corrosion-resistant galvanized steel shell and enhanced vapor injection technology, it delivers reliable cooling capacity while maintaining an ultra-low noise level of 55 decibels.
Technical Specifications
Operating Range
-40 ℃
Min Evaporation Temp
-10 ℃
Max Evaporation Temp
35 ℃
Max Ambient Temp
- Model
- S8
- Compatible Refrigerants
- R407CR134AR507R449AR404A
- Power Supply
- 3x380V-50Hz

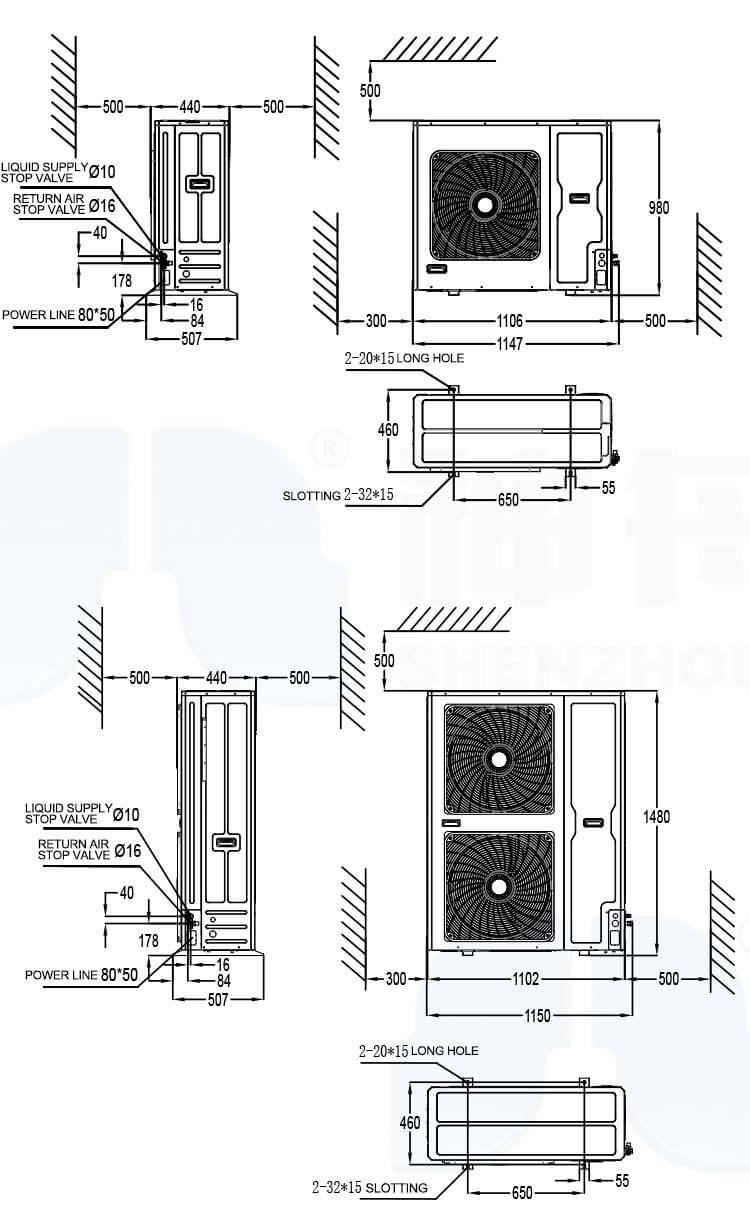

Dimensions & Components
Internal Components
| Component | Specification |
|---|---|
| Condenser Model | F-92 |
| Liquid Reservoir | SCYQ-10V |
| Filter Drier | DCL165 |
| Sight Glass | SGN16S |
| Suction Tube | 22mm |
| Exhaust Pipe | 16mm |
- Dimensions (L x W x H)
- 110cm x 41cm x 147cm
Performance Features
Advanced Features
- Variable frequency DC technology (15hz-120hz)

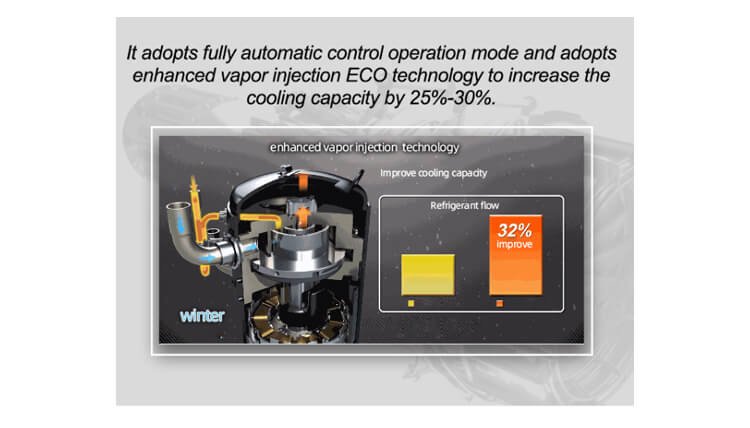

- Enhanced Vapor Injection (EVI) technology
- 25-30% increase in cooling capacity
- Noise reduction technology (55dB)
- Corrosion-resistant powder-coated galvanized steel
