Industrial Plate Freezer for Food Processing
The industrial plate freezer utilizes a series of metal plates to quickly freeze food products. This system ensures uniform freezing by direct contact, preserving the food's quality and texture.
Technical Specifications
Product Overview
Industrial Plate Freezer

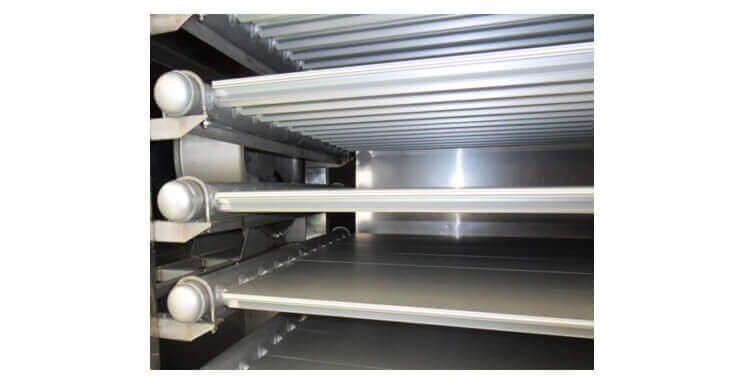

This industrial plate freezer utilizes high-conductivity metal plates for rapid contact freezing, ensuring superior preservation of texture and quality in food products. Designed for heavy-duty industrial environments, it features uniform refrigerant flow for consistent heat transfer and energy-efficient insulation. The system is built with high-quality control components to ensure reliable, moisture-proof operation in demanding food processing facilities.
Key Features
- Key Features

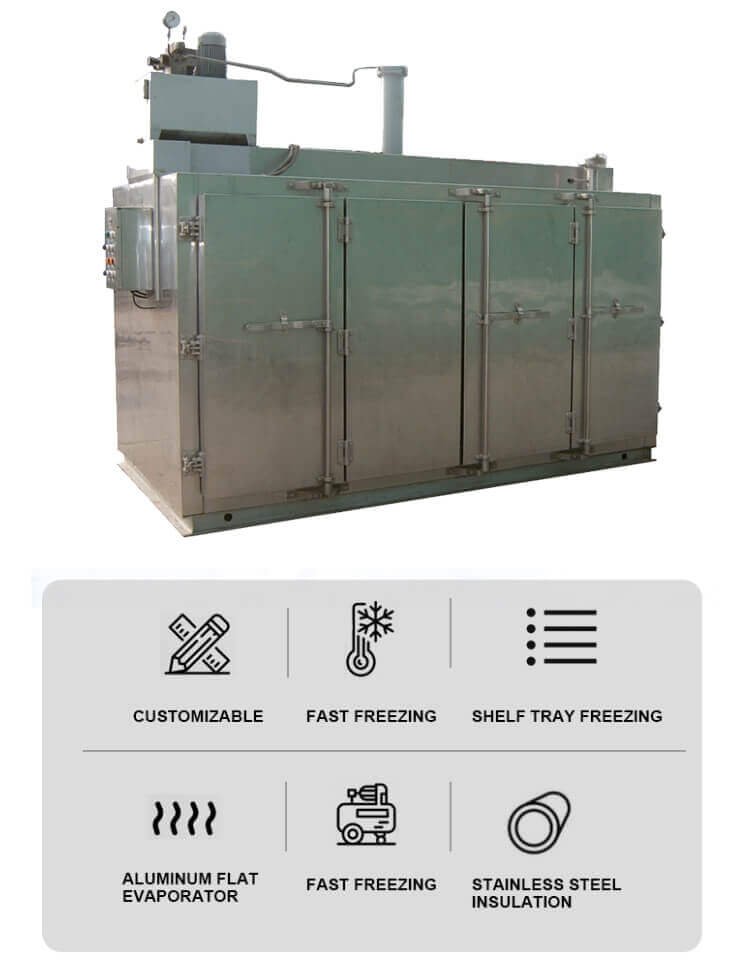

- Stainless Steel StructureUniform Refrigerant FlowMoisture-Proof Control CabinetCompact DesignRapid Contact Freezing
Performance Metrics
Performance Metrics
800 kg/batch
Capacity
2.2 kW
Motor Power
380 V
Voltage
50 Hz
Frequency
Model Specifications
Model Specifications
| Model | Capacity | Freezing Time | Installed Power |
|---|---|---|---|
| SZ-1F150 | 150 | 6-60 min | 13.95 |
| SZ-1F200 | 200 | 6-60 min | 13.95 |
| SZ-1F250 | 250 | 6-60 min | 19.5 |
| SZ-1F300 | 300 | 6-60 min | 20.2 |
| SZ-1F500 | 500 | 6-60 min | 24.2 |
| SZ-2F500 | 500 | 6-60 min | 27 |
| SZ-2F1000 | 1,000 | 6-60 min | 40.4 |
