Industrial Heat Exchanger for Petrochemical Refineries

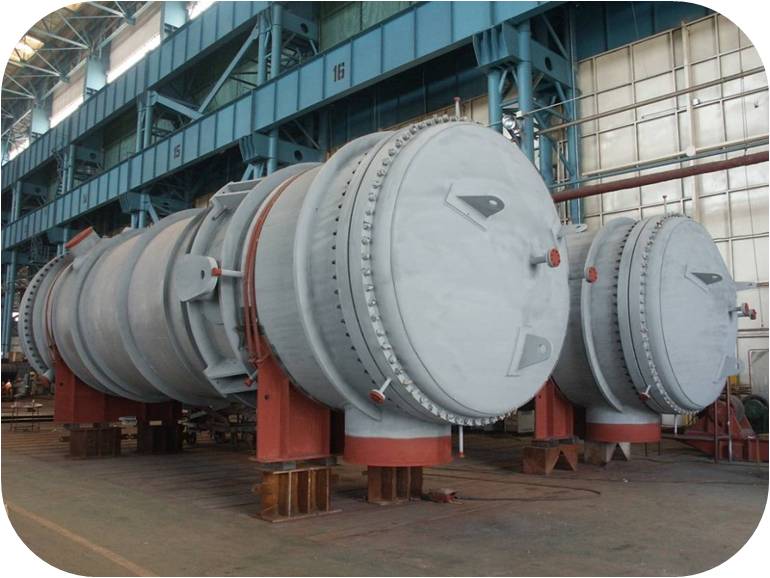

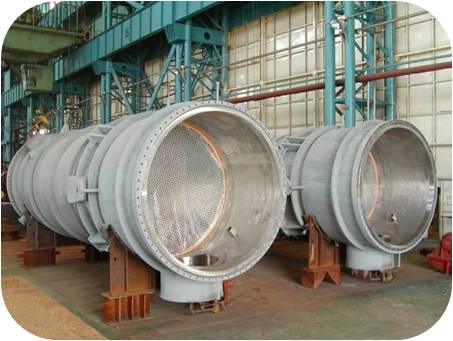

This large-scale heat exchanger is designed for petrochemical engineering applications in petroleum refineries. The unit features a cylindrical shell with multiple sections, reinforced with circumferential bands, and is supported by heavy-duty steel structures.
Technical Specifications
Product Overview
Industrial Heat Exchanger for Petrochemical Refineries
This industrial heat exchanger is engineered specifically for demanding petrochemical refinery applications, offering robust performance under high-pressure conditions. Constructed with high-grade materials including SA213TP316 for the tube pass and SA240GR304 for the shell pass, this unit ensures durability and efficient heat transfer. Designed for heavy-duty industrial use, it is a critical component for complex chemical engineering projects requiring reliable thermal management.
Technical Specifications
- Tube Side Design Pressure
- 2.2 Mpa
- Shell Side Design Pressure
- 0.517 Mpa
- Tube Side Design Temperature
- -10 ℃
- Shell Side Design Temperature
- 43.3 ℃
Materials and Dimensions
Material Composition
| Component | Material Grade |
|---|---|
| Pipe Pass | SA213TP316 |
| Shell Pass | SA240GR304 |
Dimensions and Weight
2,000 mm
Diameter
10,892 mm
Length
45.96 T
Total Weight
- Heat Exchange Tube Specs
- Φ38 × 2.1 mm
