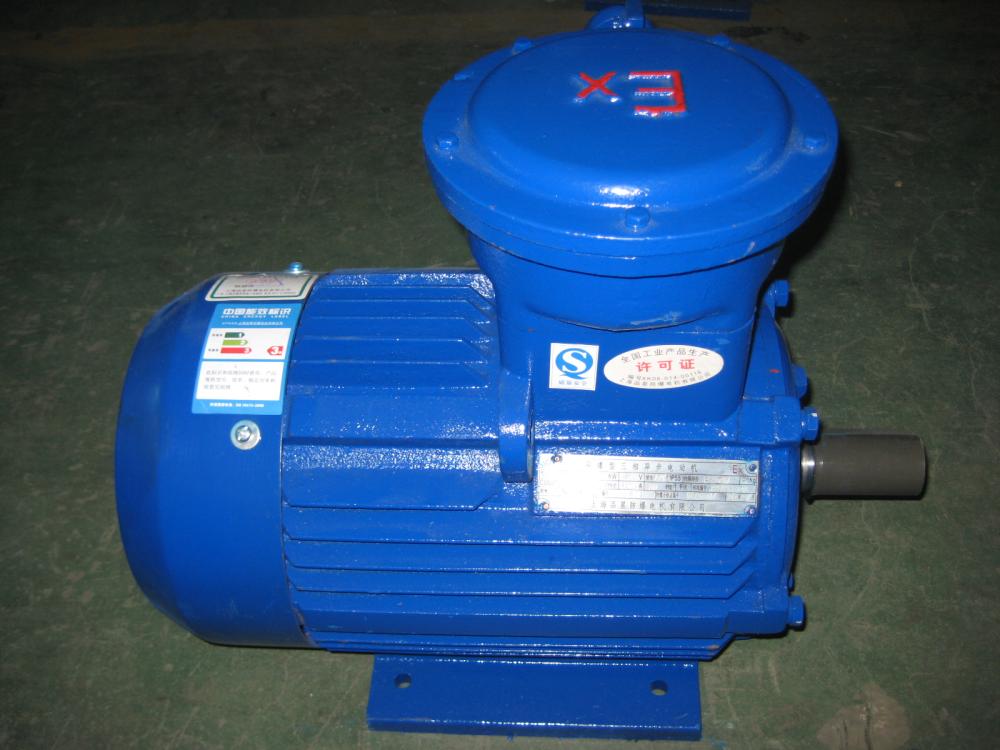

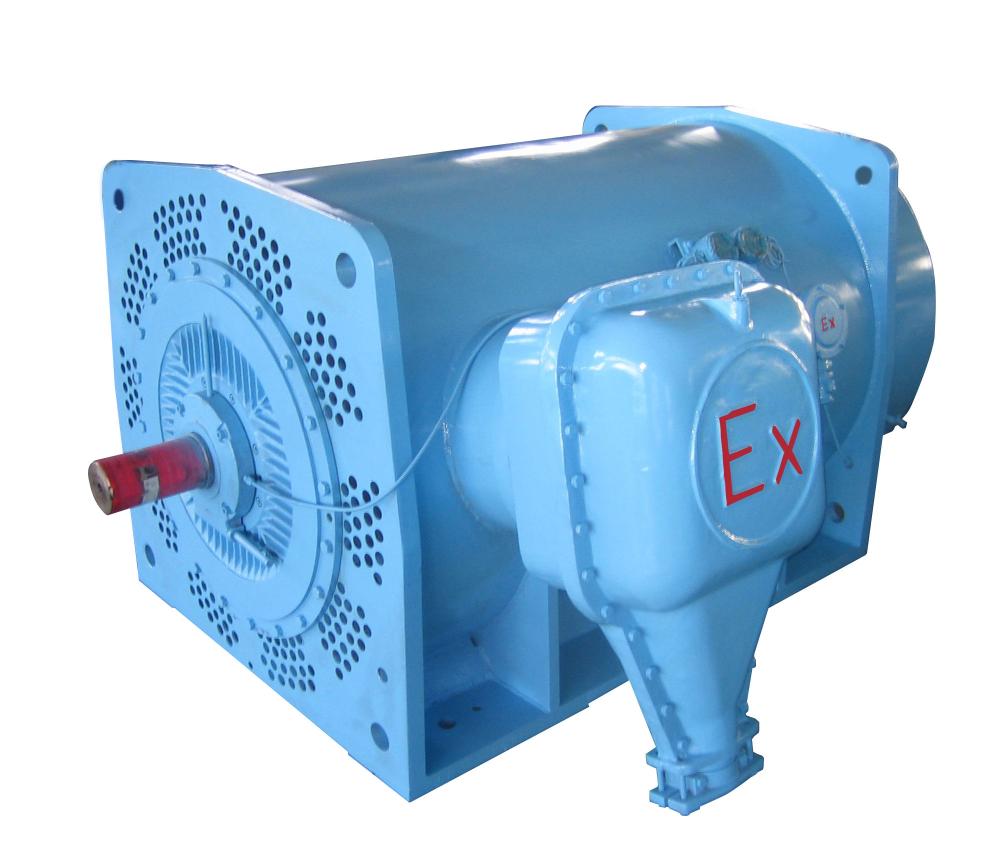

Industrial Electric Motor
This electric motor features a compact construction and generates low noise and vibration. It is designed with a three-layer insulation structure and undergoes long hours of VPI treatment.
Technical Specifications
Overview
High-Performance Industrial Motor
This industrial electric motor is engineered for reliability and efficiency in demanding environments. It features a compact, robust construction with advanced cooling capabilities and low-noise operation. Designed with a multi-layer insulation structure and optimized stator-rotor gap matching, it ensures long-term durability even under heavy operational loads.
Performance Metrics
Power Range
0.75 KW
Min Power
10,000 KW
Max Power
Frame Size Range
80 mm
Min Frame
1,000 mm
Max Frame
Electrical Specifications
- Supported Voltages
- 380V440V415V660V1140V3kV6kV10kV
- Insulation Structure
- 3-layer stator coil insulation
Design & Construction
Key Features
- High starting torque
- Low starting current
- Low noise and vibration
- Compact construction
- Low temperature rise
- Long-duration VPI treatment
- Reshape fixing device for stator coil end
Protection & Safety
Explosion-proofIP54
